Chapter 4. Troubleshooting
Inputs 4.2.2.

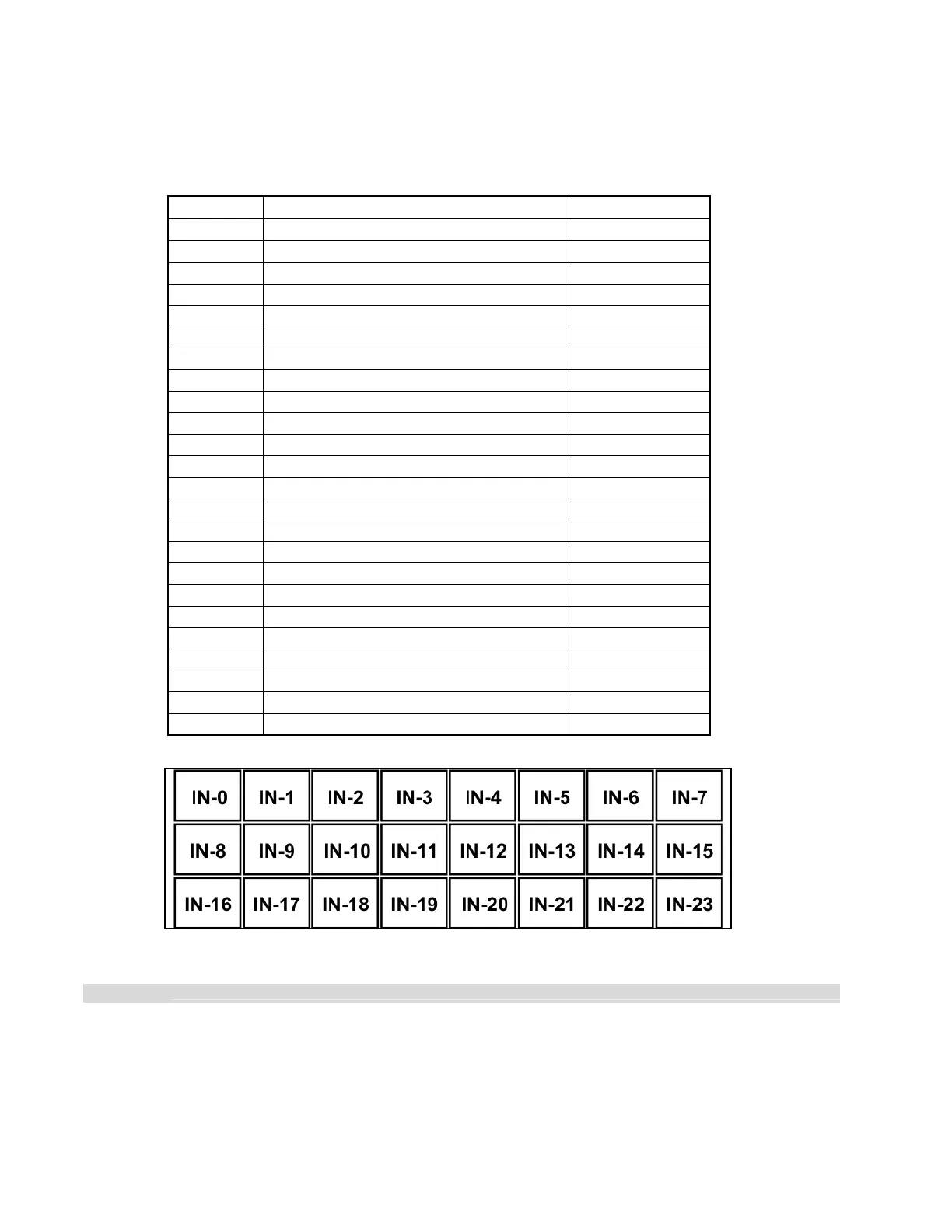

Table 14: Input Function and Connection
Label
Function Connection
IN-0
Door is closed M6-1
IN-1
Low level achieved (reserved) M6-2
IN-2
High level achieved (reserved) M6-3
IN-3
Vibration switch tripped M6-4
IN-4
Inverter input M6-5
IN-5
Door open desired M6-6
IN-6
Brake is off M6-11
IN-7
External fault M6-12
IN-8
Timer stop M7-6
IN-9
Front is not down (reserved) M7-7
IN-10
Speed limit desired (reserved) M7-13
IN-11
(reserved) M7-14
IN-12
(reserved) M6-7
IN-13
(reserved) M6-8
IN-14
(reserved) M6-9
IN-15
Cancel operator signal (reserved) M6-10
IN-16
(reserved) M7-2
IN-17
(reserved) M7-9
IN-18
(reserved) M7-3
IN-19
(reserved) M7-10
IN-20
(reserved) M7-4
IN-21
(reserved) M7-11
IN-22
(reserved) M7-5
IN-23
(reserved) M7-12
Figure 32: Input Indicator Position and Label
— End of BICLUT01 —
BICLJT01 (Published) Book specs- Dates: 20151112 / 20151112 / 20151112 Lang: ENG01 Applic: CLJ
4.3. Components of the MilTouch
™
Controller Circuit Boards
Use this document to identify components when troubleshooting. Consult with the Milnor factory
before you make any attempt to repair or replace individual components.
