PELLERIN MILNOR CORPORATION
Page (1 / 2)BMP150040/2015435A

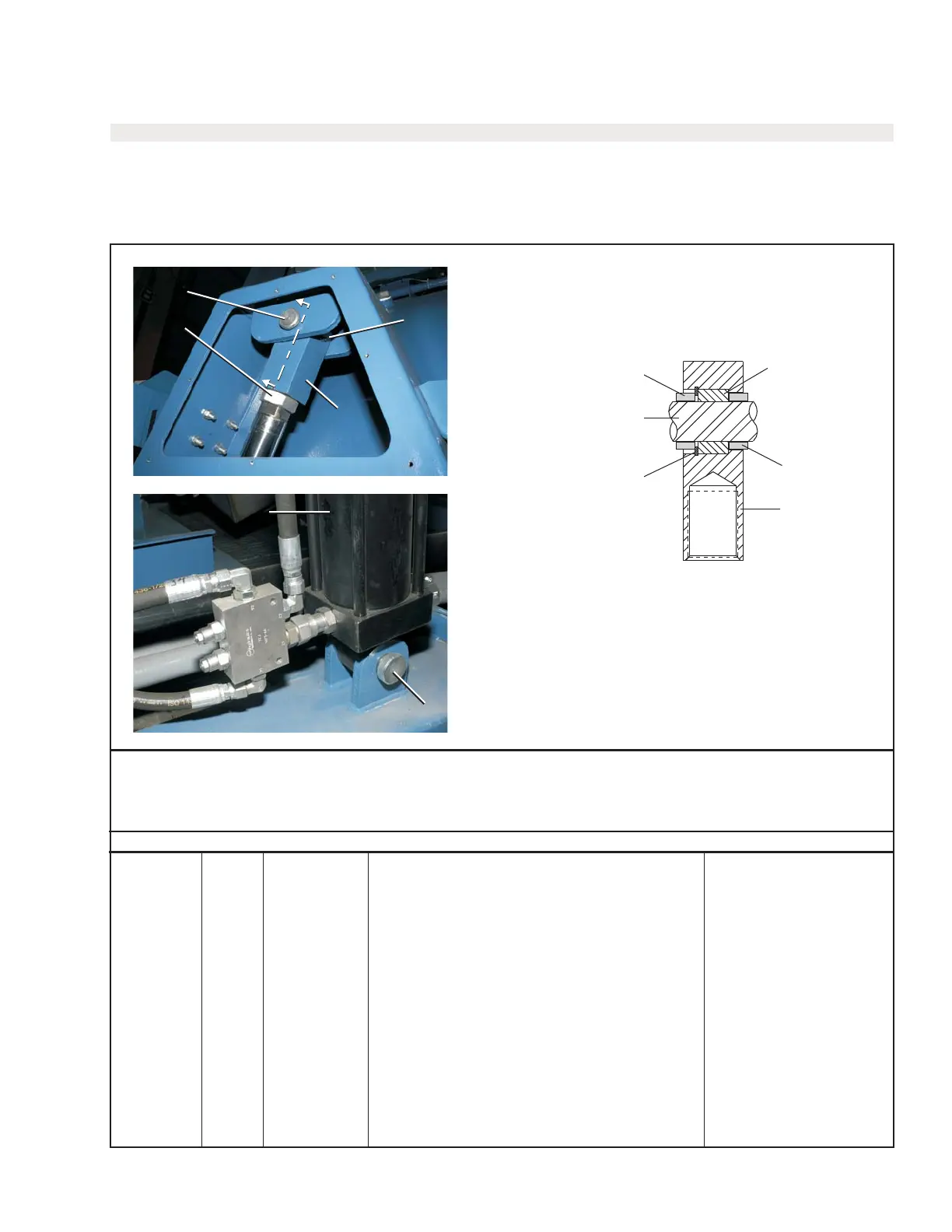

Hydraulic Cylinder
48040M7K, 68036M5K, 72046M5K
2
7
6
4
Section A-A
Cylinder Clevis
5
5
7,8
10
2
3
A
A
1
8,9
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Hydraulic Cylinder Mounting
-
---------------------------------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
A GHC68004 6836M5K HYDRAULICS INSTALL 68036M5K
B GHC72001 7246M5K HYDRAULICS INSTALL 72046M5K
C GHC48004 4840M7K HYDRAULICS INSTALL 48040M7K
-------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
AB 1 27E164035A HYDRAULIC CYL 4" BORE X 35" STROKE BLACK
C 1 27E163C31A HYDRAULIC CYL 3.25" BORE X 31" STROKE
AB 2 15G277 HEXJAMNUT 1+7/8-12UNF GR5 ZINC
C 2 15G264A HEXJAMNUT 1+1/4-12UNF 2B ZINC
AB 3 X2 22698 6836M5K HYDRAULIC CYLINDER CLEVIS END
C 3 X2 24043 4840M7K HYDRAULIC CYLINDER CLEVIS END
AB 4 17B182 INTRETRING 2+3/16 ENDRIES#QGCG
C 4 17B181 RETRING;INT;1.725;ENDRIES HO162
AB 5 02 22699 6836M5K CLEVIS END SPACER
C 5 02 24071 4840M7K CLEVIS END SPACER
110
To Next Page
