PELLERIN MILNOR CORPORATION
BIIFLI01 (Published) Book specs- Dates: 20140321 / 20140321 / 20140321 Lang: ENG01 Applic: IFL IHU
48040F_, 48040H_ & 68036H_ Washer Extractor Installation
1. Handling
Note 1: Once the machine is given to the carrier for delivery, it is solely the responsibility of the carrier to
ensure that no damage occurs during transit. In addition to readily apparent damage, carriers are liable for
concealed damage. Do not hesitate to file a claim with the carrier if the machine is damaged in any way
during shipment. Milnor will be glad to assist you in filing your claim, but is not responsible for any
shipping damage to the machine once it has been delivered to the carrier in good condition.
1. Remove the protective coverings (leaving the machine on shipping skids) and examine
carefully for possible shipping damage. If the machine is damaged, notify the transportation
company immediately.
2. Locate the lift points as shown in Figure 1.
3. Attach chains as shown in Figure 2.

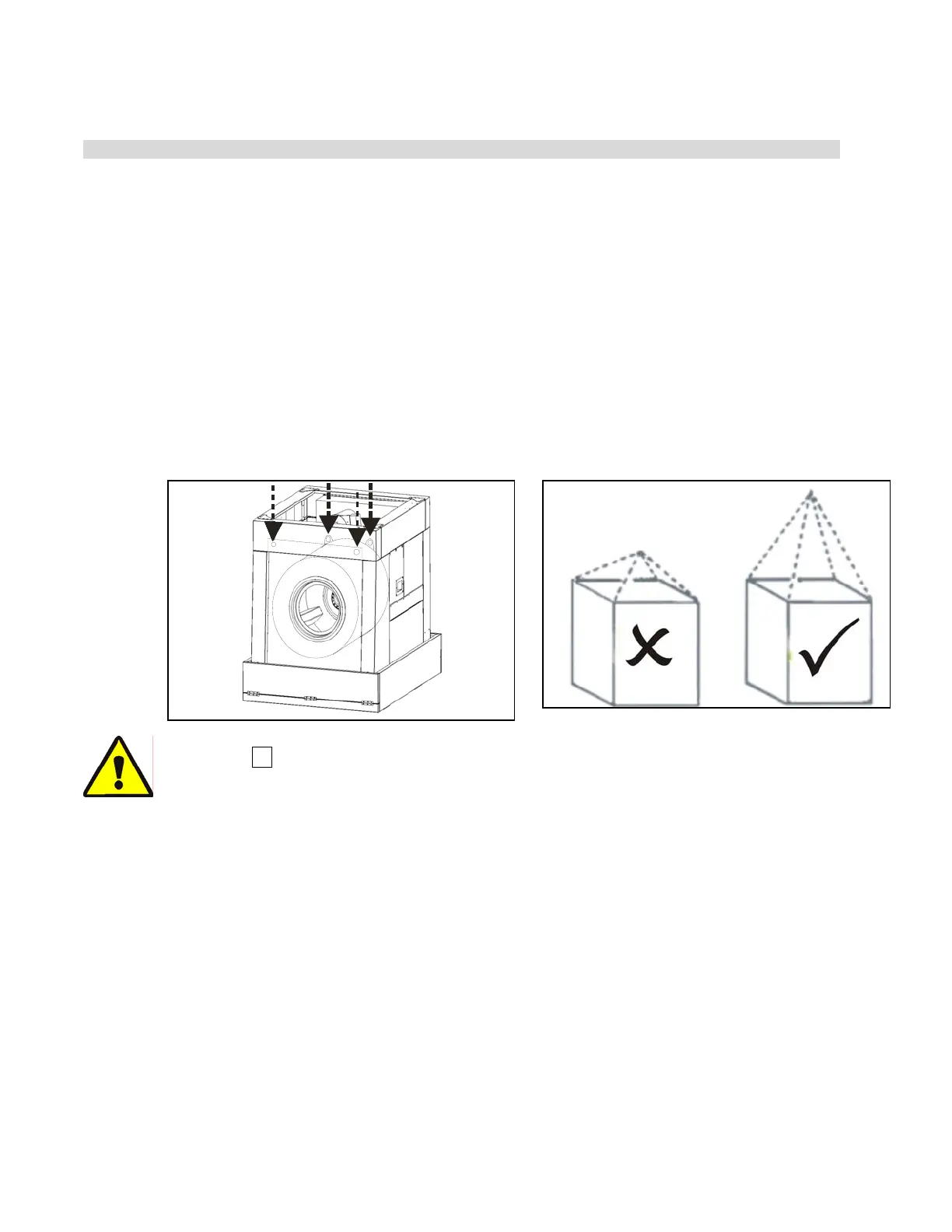

Figure 1: Where To Lift Figure 2: Rigger liable for damages
CAUTION 1 : Machine damage hazard—Improper placement of pickup chains can cause
direct or indirect damage to machine.
• Use a 4 point pickup (as shown in Figure 2)
• Use long pickup chains to prevent racking and/or twisting machine frame
2. Moving the Machine into Place
1. Use skids for fork lifting. If possible, leave the machine on shipping skids until it is near its
final position. Once skids are removed, carefully place forks under base. Do not allow the
forks to come in contact with valves, piping, motors, etc., located under the machine. Do not
push or hit the shell front when uncrating or installing the machine as it may cause the door to
leak.
2. Never push, pull, lift, jack, or exert pressure on any components that protrude from the
machine frame (shell front, door, electric boxes, controls, guards, conduits, conveyors,
piping, valves, drains, vents, tilt frames, etc.).
3. Do not pull on door conduit to help move the machine as the door switch may require
readjustment.
