Milnor MWF C Series Installation And Service

PELLERIN MILNOR CORPORATION
BIIFGM07 (Published) Book specs- Dates: 20150813 / 20150813 / 20150813 Lang: ENG01 Applic: IFG
Bearing Housing Components and Installation: 68036F5N,
68036H5N, 68036H5K, 68036M5K, 72046M5K

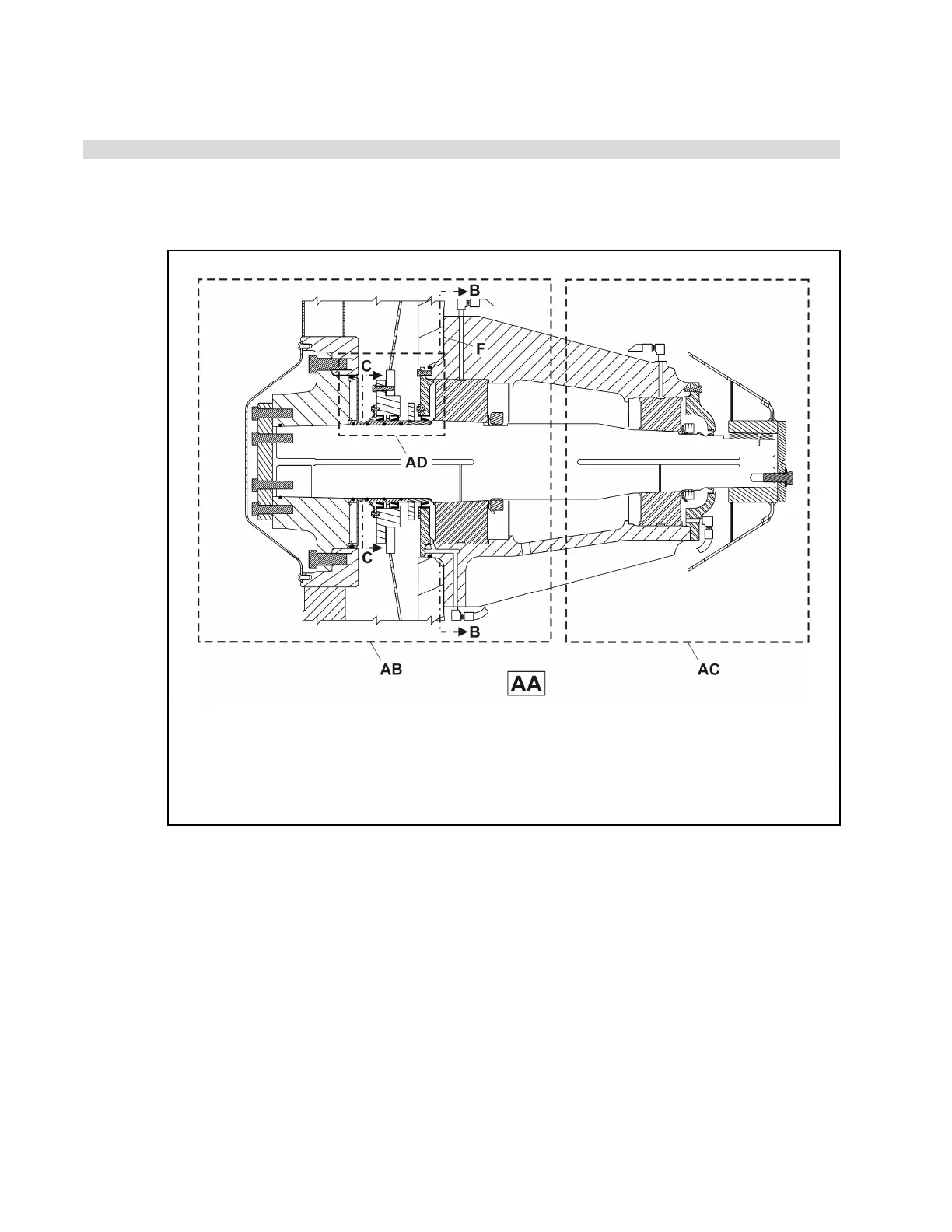

Figure 1: Cylinder and Bearing Installation
Cross Section
Legend
AA. Cross Section, Cylinder and Bearing Installation
AB. Cross Section, Detail view of the bearing housing front
AC. Cross Section, Detail view of the bearing housing rear
AD. Detailed view, Seal sleeve
F. Refer to the document BIIFGM08.
.
