PELLERIN MILNOR CORPORATION
Page (1 / 1)BMP150030/2015155A
Drive Chart
6836M5K
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.

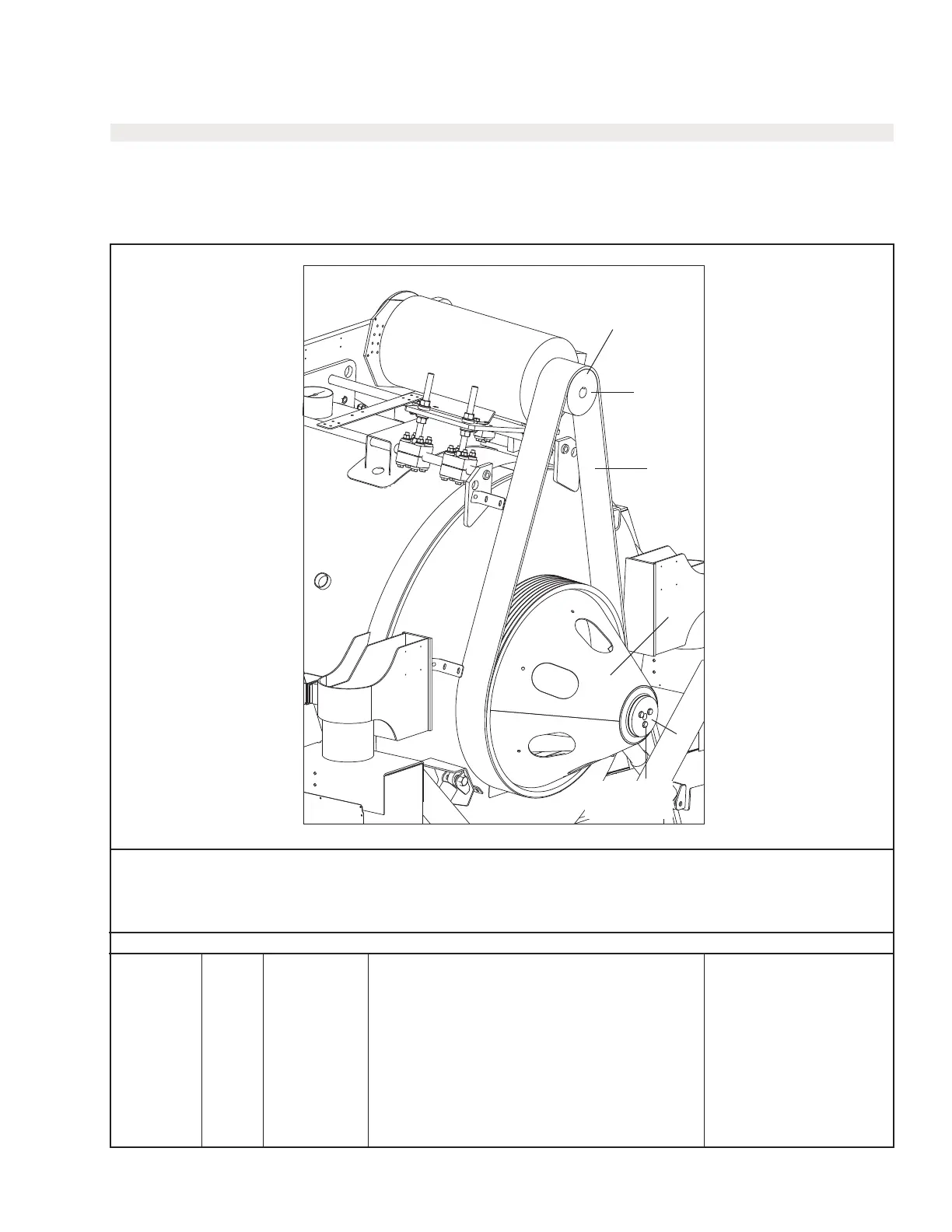

Parts List—Drive Chart
--------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 X2 04428A MACH=PULLEY, FAB, 8 GROOVE
all 2 X2 21923 PLATE=PULLEY PULL UP, 4840F
all 3 15K232A HEXCAPSCR 3/4-10X2 GR8 ZINC
all 4 15U321H FLTWASH 3/4 HARD ASTM F436
all 5 56050B8SK VPUL 8G5.0B TYPE SK(MASKA 8B54) WT.14LBS
all 6 56Q2CSK 2+1/8" BUSHING VPUL QD TYPE SK (SPLIT BUSHING)
all 7 56VB171XB4 VBAND 4RBX171 EACH =1
1
2
3,4
(3 Places)
5
6
7
54
