PELLERIN MILNOR CORPORATION
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Motor Mount
----------------------------------------------------------------------------------------------ASSEMBLIES--------------------------------------------------------------------
A GDB68001 6836M5K DRIVE BASE 68036M5K
B GDB48003 4840M7K DRIVE BASE 48040M7K
---------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 02 11311B MTR BASE PIVOT CLAMP 4226QHE
all 2 X2 11311P PAINT=JACKBOLT CLAMP, 6836F
all 3 C2 11311C CAST=JACKBOLT CLAMP, 6836F
all 4 15K227B HEXCAPSC 5/8-11X5.5 GR8 ZINC
all 5 17W030 SPHERICAL WASHER SET 5/8 M/F
all 6 15U315 LOKWASHER MEDIUM 5/8 ZINCPL
all 7 15G238 HXNUT 5/8-11UNC2B SAE ZINC GR2
all 8 17R031A13A THRD ROD 1-8 X 13" GR8 ZNPL
all 9 15G250 HXNUT 1-8UNC2B SAE ZNC GR2
all 10 15U393 FLTWASH 1" HARD ASTM F436
all 11 17W060 SPHERICALWASHER SET 1" M/F
all 12 15K226L HEXCAPSCW 5/8-11X3.5 GR8 ZINC
Page (1 / 3)BMP150036/2015386A

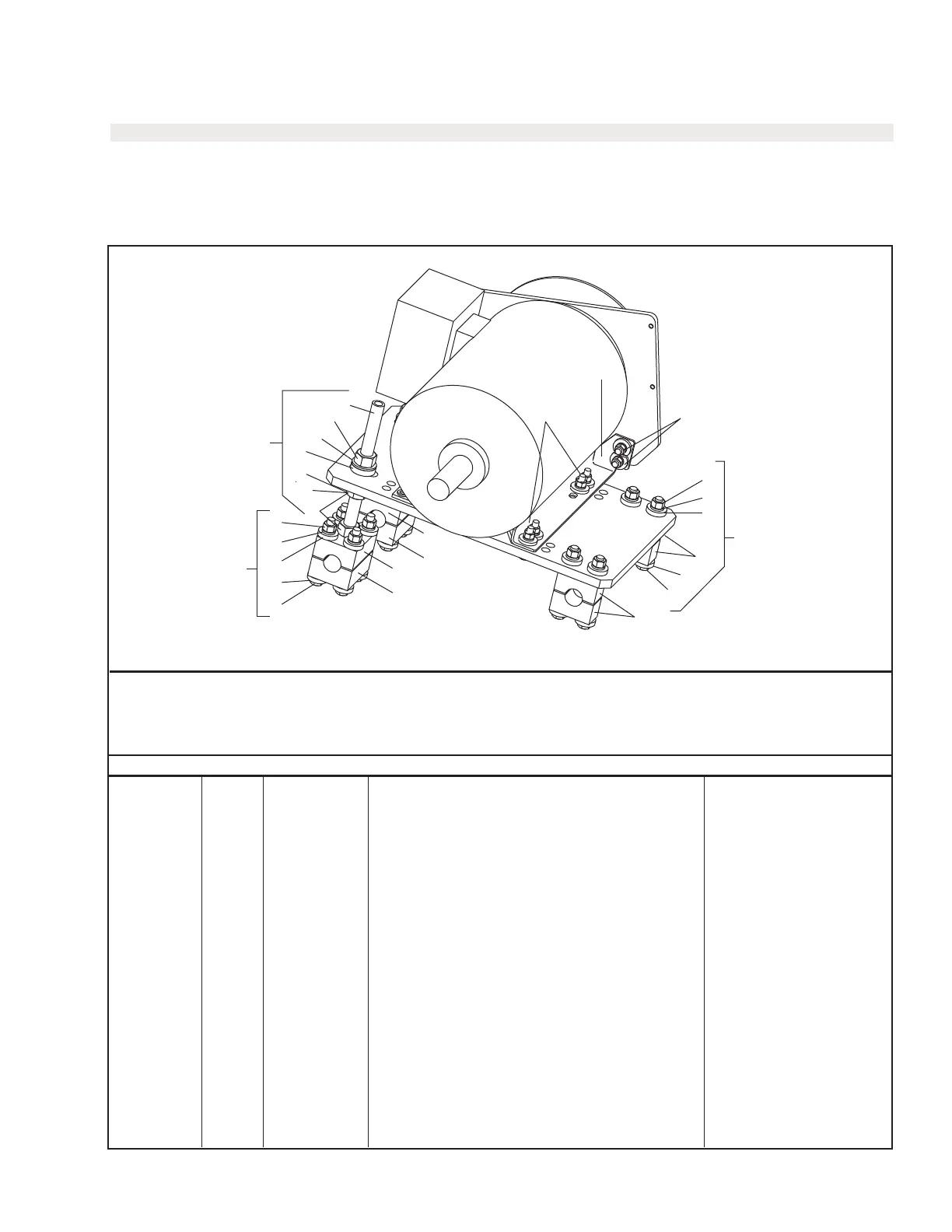

Motor Mount
Figure 2: 48040M7K
48040M5K, 6836M5K
1
1
2
2
4
5
5
6
7
4
5
5
6
7
15,16
17,18
(2 places)
4
Places
8
Places
3
3
6,7,12
(4 Places)
14
8
9
9
10
10
11
11
2 Places
58
To Next Page
