PELLERIN MILNOR CORPORATION
Page (1 / 2)BMP150047/2015155A

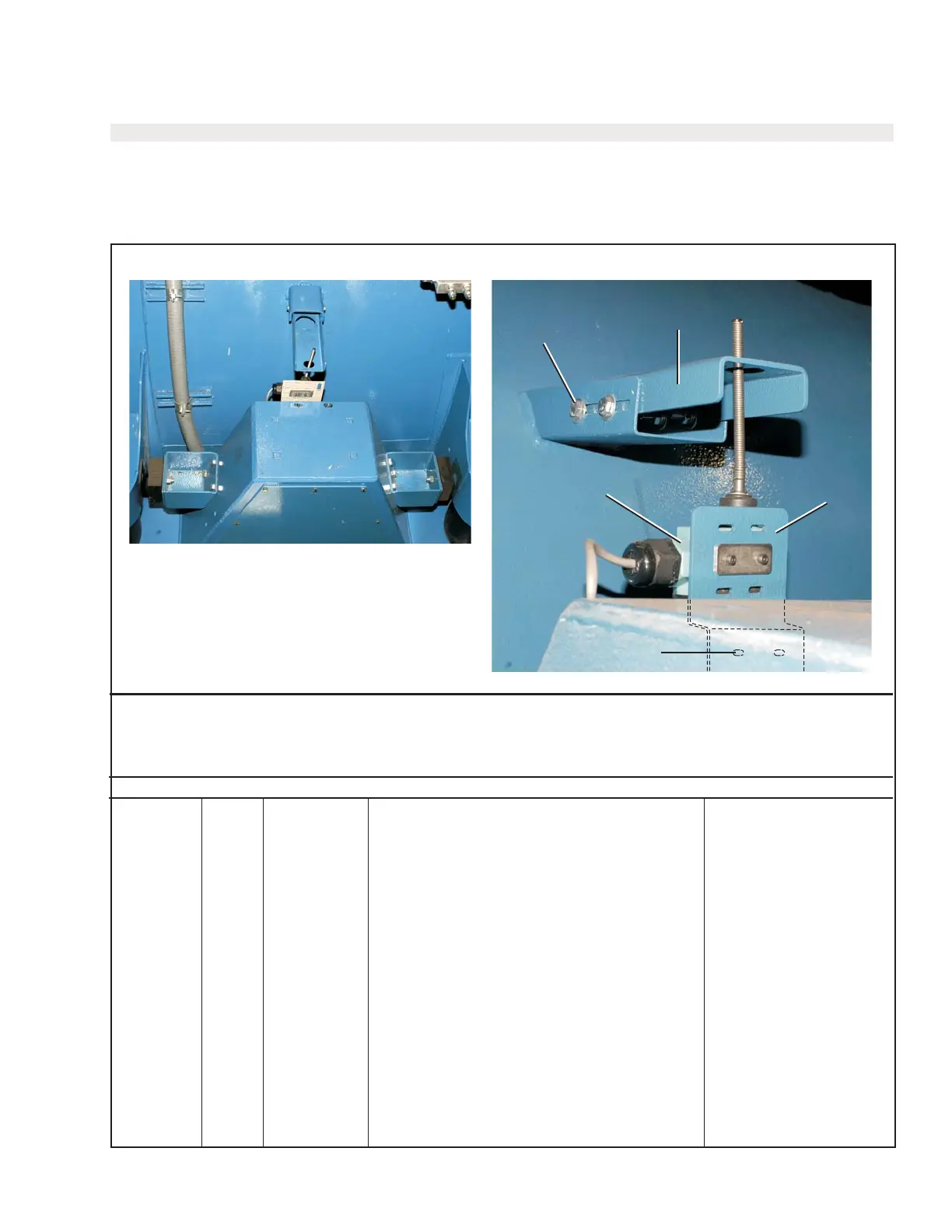

Excursion Switch
48040M7K, 68036M5K, 72046M5K
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Excursion Switch
---------------------------------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
A GES68001 6836M5K EXCURSION SWITCH INSTALL
-------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 09R008A MICSW SPDT BZE6-2RN183
all 2 02 22736 6836M5K EXCURSION SWITCH MOUNT BRKT
all 3 02 22735 6836M5K EXCURSION SWITCH TARGET
all 4 15K030 HEXCAPSCR 1/4-20UNC2X1/2 GR5 Z
all 5 15U185 FLATWASHER(USS STD) 1/4" ZNC P
all 6 15G177 HXNUT 1/4-28UNF2B SAE ZINC GR2
all 7 15U180 LOCKWASHER MEDIUM 1/4 ZINCPL
all 8 15K085 HEXCAPSCR 3/8-16UNC2AX3/4 GR5
all 9 15G205 HXNUT 3/8-16UNC2B ZINC GR2
all 10 15U240 FLATWASHER(USS STD) 3/8" ZNC P
all 11 15U255 LOCKWASHER MEDIUM 3/8 ZINCPL
1
2
3
4,5,6,7
(4 places)
8,9,10,11
(2 places)
171
To Next Page
