Mindray DC-80 EXP User Manual

System Preparation 3-7
3.3 Monitor Adjustment
3.3.1 Monitor Position Adjustment
Gently hold the bottom edge of the monitor when adjusting its position.

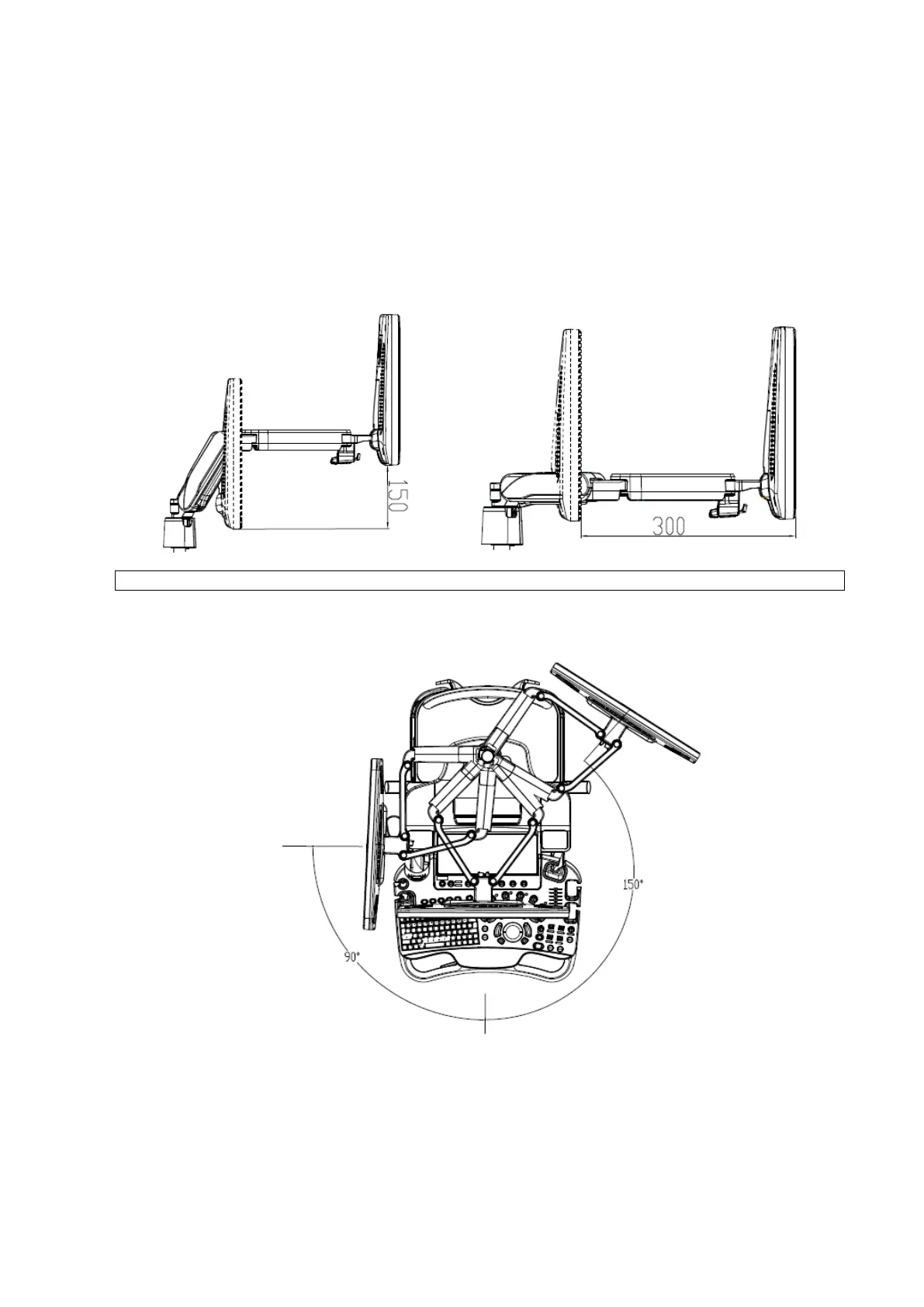

 Height and displacement adjustment
Move the monitor support arm up or down to adjust the height, back and forth to adjust the
displacement
NOTE:
Take care of your hands when adjusting the monitor up and down, back and forth.
 Rotate the monitor
The monitor can turn left 90 degrees to the right 150 degrees along with the support arm.
 Tilt the monitor
When positioned vertically, the monitor can be tilted for 20°backward and to the horizontal
position forward. In the process of transportation or moving the system, keep monitor in the
horizontal position, shown as follows:
