System Preparation 3-5
3.5 Connecting the Footswitch
Connect the footswitch to the main unit via a USB port.
Set the functions of the footswitch in the [Key Config] page. Refer to "11.1.6 Key Config" for
details.
3.6 Connecting/ Removing a USB Storage
Device
DO NOT detach an USB storage device directly; otherwise,
the ultrasound system or the USB device and/ or data
stored in the device may be damaged.
When connecting a USB storage device to the ultrasound system, you can see the symbol
in the lower right corner of the screen.
To remove the USB storage device: Click to open the [Remove USB Device] screen.
Select the device to be removed. Click [OK].
3.7 Graph / Text Printer
3.7.1.1 Connecting a Local Printer

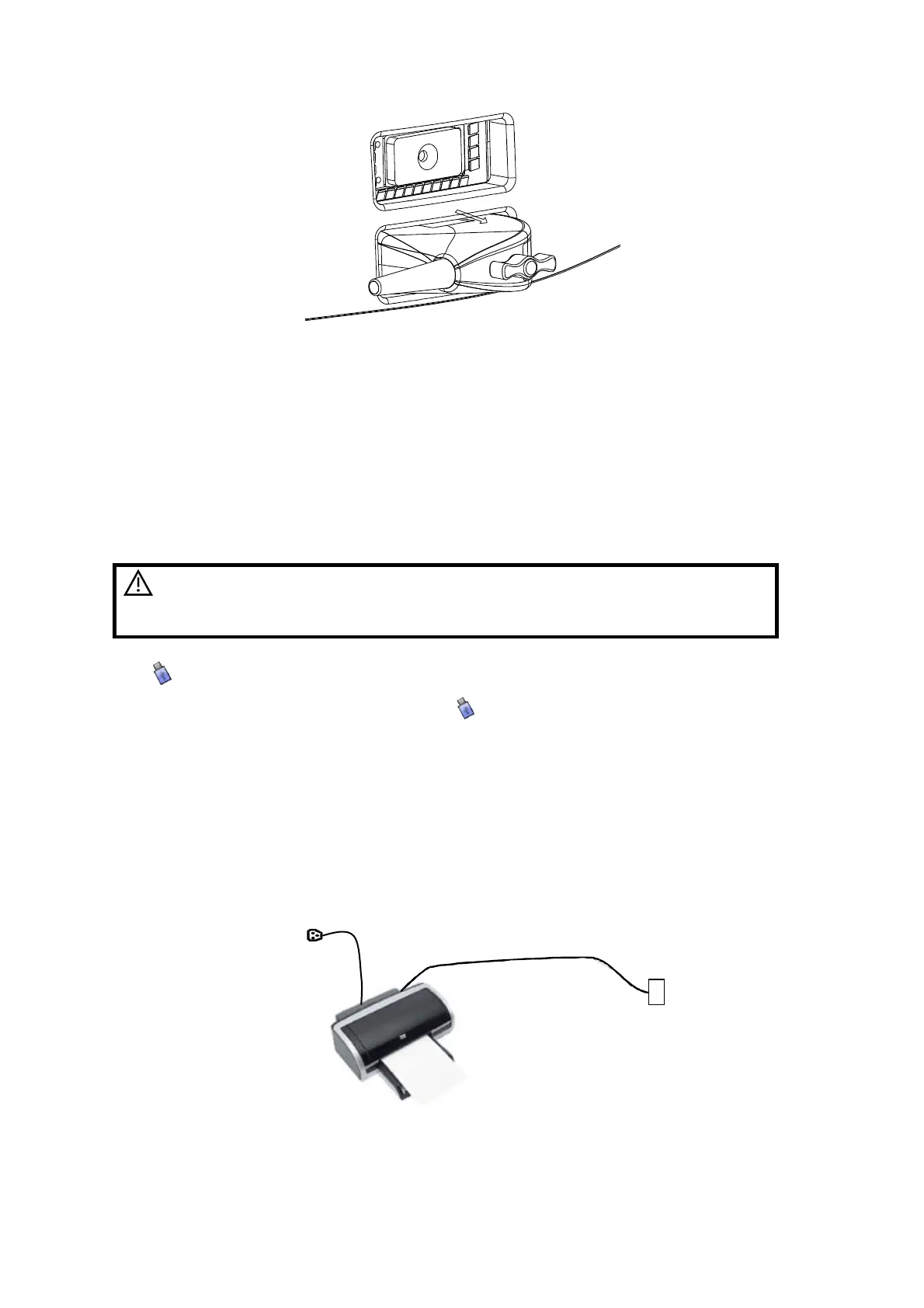

As shown in the figure below, a graph / text printer has a power cord and data cable. The
power cord shall be directly connected to a wall receptacle as required.
1. Connect the data cable with the USB port on the ultrasound system.
2. Plug the other end power plug into an appropriate outlet.
3. Power on the system and the printer.
To Next Page
