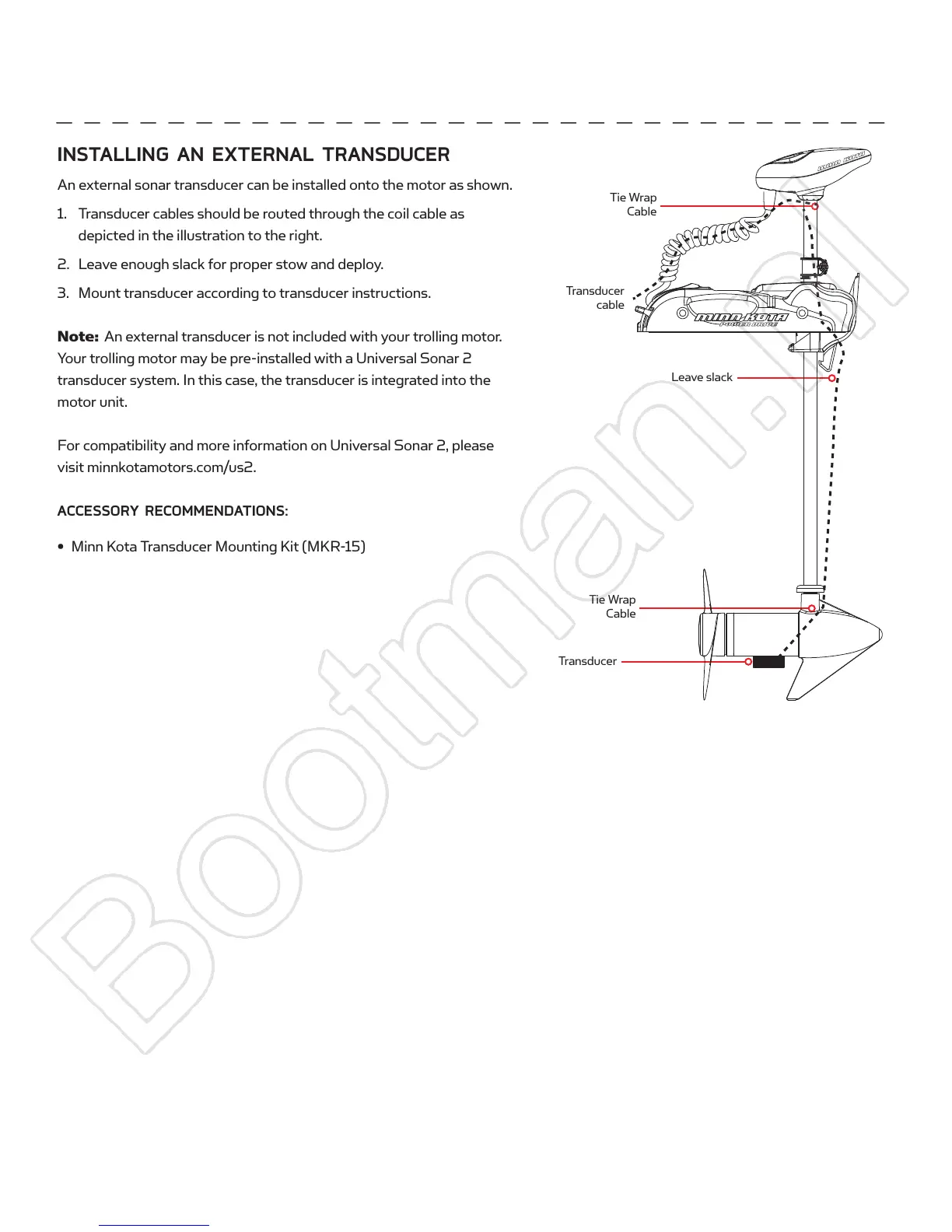

INSTALLING AN EXTERNAL TRANSDUCER
An external sonar transducer can be installed onto the motor as shown.
1. Transducer cables should be routed through the coil cable as
depicted in the illustration to the right.
2. Leave enough slack for proper stow and deploy.
3. Mount transducer according to transducer instructions.
Note: An external transducer is not included with your trolling motor.
Your trolling motor may be pre-installed with a Universal Sonar 2
transducer system. In this case, the transducer is integrated into the
motor unit.
For compatibility and more information on Universal Sonar 2, please
visit minnkotamotors.com/us2.
ACCESSORY RECOMMENDATIONS:
• Minn Kota Transducer Mounting Kit (MKR-15)
Leave slack
Leave slack
Tie wrap cable
Tie wrap cable
Transducer
Transducer
cable
Leave slack
Tie Wrap
Cable
Tie Wrap
Cable
Transducer
Transducer
cable
12 | minnkotamotors.com
©2015 Johnson Outdoors Marine Electronics, Inc.
