MINN KOTA POWERDRIVE V2 User Manual

minnkotamotors.com | 17
©2015 Johnson Outdoors Marine Electronics, Inc.

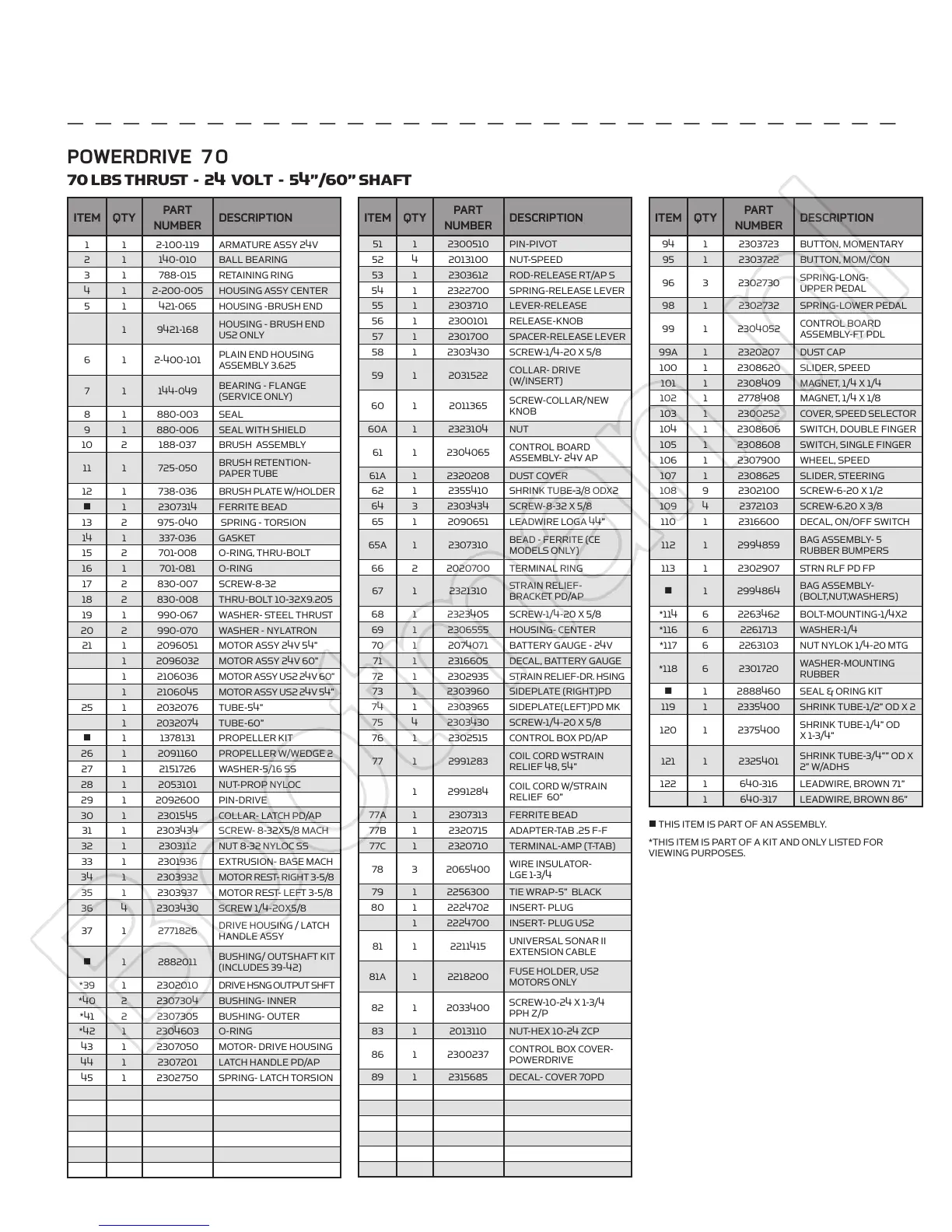

PARTS LIST
POWERDRIVE 70
70 LBS THRU - 24 VOLT - 54”/60” SHA
n THIS ITEM IS PART OF AN  SEMBLY.
*THIS ITEM IS PART OF A KIT AND ONLY LI ED FOR
VIEWING PURPOS .
ITEM QTY
PART
NUMBER
DESCRIPTION
1 1 2-100-119 ARMATURE  SY 24V
2 1 140-010 BALL BEARING
3 1 788-015 R AINING RING
4 1 2-200-005 HOUSING  SY CENTER
5 1 421-065 HOUSING -BRUSH END
1 9421-168
HOUSING - BRUSH END
US2 ONLY
6 1 2-400-101
P IN END HOUSING
 SEMBLY 3.625
7 1 144-049
BEARING - F NGE
(SERVICE ONLY)
8 1 880-003 SEAL
9 1 880-006 SEAL WITH SHIELD
10 2 188-037 BRUSH  SEMBLY
11 1 725-050
BRUSH R ENTION-
PAPER TUBE
12 1 738-036 BRUSH P TE W/HOLDER
n
1 2307314 FERRITE BEAD
13 2 975-040 SPRING - TORSION
14 1 337-036 G K
15 2 701-008 O-RING, THRU-BOLT
16 1 701-081 O-RING
17 2 830-007 SCREW-8-32
18 2 830-008 THRU-BOLT 10-32X9.205
19 1 990-067 W HER-  EEL THRU
20 2 990-070 W HER - NY TRON
21 1 2096051 MOTOR  SY 24V 54”
1 2096032 MOTOR  SY 24V 60”
1 2106036 MOTOR  SY US2 24V 60”
1 2106045 MOTOR  SY US2 24V 54”
25 1 2032076 TUBE-54”
1 2032074 TUBE-60”
n
1 1378131 PROPELLER KIT
26 1 2091160 PROPELLER W/WEDGE 2
27 1 2151726 W HER-5/16 SS
28 1 2053101 NUT-PROP NYLOC
29 1 2092600 PIN-DRIVE
30 1 2301545 COL R-  TCH PD/AP
31 1 2303434 SCREW- 8-32X5/8 MACH
32 1 2303112 NUT 8-32 NYLOC SS
33 1 2301936 EXTRUSION- B E MACH
34 1 2303932 MOTOR R - RIGHT 3-5/8
35 1 2303937 MOTOR R - LE 3-5/8
36 4 2303430 SCREW 1/4-20X5/8
37 1 2771826
DRIVE HOUSING /  TCH
HANDLE  SY
n
1 2882011
BUSHING/ OUTSHA KIT
(INCLUD 39-42)
*39 1 2302010 DRIVE HSNG OUTPUT SHFT
*40 2 2307304 BUSHING- INNER
*41 2 2307305 BUSHING- OUTER
*42 1 2304603 O-RING
43 1 2307050 MOTOR- DRIVE HOUSING
44 1 2307201  TCH HANDLE PD/AP
45 1 2302750 SPRING-  TCH TORSION
46 1 2302627 PIN- ROLL ZINC
46A 6 2303407 SCREW - DRIVE HOUSING
47 1 2305564 DE L- OW/DEPLOY
48 4 2305110 PAD-PIVOT SUPT
49 2 2305103 PIVOT PAD- NEW MTR’L
50 1 2300500 PIN- TCH
ITEM QTY
PART
NUMBER
DESCRIPTION
51 1 2300510 PIN-PIVOT
52 4 2013100 NUT-SPEED
53 1 2303612 ROD-RELE E RT/AP S
54 1 2322700 SPRING-RELE E LEVER
55 1 2303710 LEVER-RELE E
56 1 2300101 RELE E-KNOB
57 1 2301700 SPACER-RELE E LEVER
58 1 2303430 SCREW-1/4-20 X 5/8
59 1 2031522
COL R- DRIVE
(W/INSERT)
60 1 2011365
SCREW-COL R/NEW
KNOB
60A 1 2323104 NUT
61 1 2304065
CONTROL BOARD
 SEMBLY- 24V AP
61A 1 2320208 DU COVER
62 1 2355410 SHRINK TUBE-3/8 ODX2
64 3 2303434 SCREW-8-32 X 5/8
65 1 2090651 LEADWIRE LOGA 44”
65A 1 2307310
BEAD - FERRITE (CE
MODE ONLY)
66 2 2020700 TERMINAL RING
67 1 2321310
 RAIN RELIEF-
BRACK PD/AP
68 1 2323405 SCREW-1/4-20 X 5/8
69 1 2306555 HOUSING- CENTER
70 1 2074071 BATTERY GAUGE - 24V
71 1 2316605 DE L, BATTERY GAUGE
72 1 2302935  RAIN RELIEF-DR. HSING
73 1 2303960 SIDEP TE (RIGHT)PD
74 1 2303965 SIDEP TE(LE )PD MK
75 4 2303430 SCREW-1/4-20 X 5/8
76 1 2302515 CONTROL BOX PD/AP
77 1 2991283
COIL CORD W RAIN
RELIEF 48, 54”
1 2991284
COIL CORD W/ RAIN
RELIEF 60”
77A 1 2307313 FERRITE BEAD
77B 1 2320715 ADAPTER-TAB .25 F-F
77C 1 2320710 TERMINAL-AMP (T-TAB)
78 3 2065400
WIRE INSU TOR-
LGE 1-3/4
79 1 2256300 TIE WRAP-5” B CK
80 1 2224702 INSERT- PLUG
1 2224700 INSERT- PLUG US2
81 1 2211415
UNIVERSAL SONAR II
EXTENSION  BLE
81A 1 2218200
FUSE HOLDER, US2
MOTORS ONLY
82 1 2033400
SCREW-10-24 X 1-3/4
PPH Z/P
83 1 2013110 NUT-HEX 10-24 ZCP
86 1 2300237
CONTROL BOX COVER-
POWERDRIVE
89 1 2315685 DE L- COVER 70PD
1 2315688 DE L- COVER 70PD US
90 4 2012100 SCREW-8-18 X 5/8
n
1 2994725 FOOT PEDAL  SEMBLY
91 1 2304505 FOOT PEDAL B E
92 1 2308501 WEAR P TE FOOT PDL
93 1 2300255  PDL, CORDED UPPER
ITEM QTY
PART
NUMBER
DESCRIPTION
94 1 2303723 BUTTON, MOMENTARY
95 1 2303722 BUTTON, MOM/CON
96 3 2302730
SPRING-LONG-
UPPER PEDAL
98 1 2302732 SPRING-LOWER PEDAL
99 1 2304052
CONTROL BOARD
 SEMBLY- PDL
99A 1 2320207 DU  P
100 1 2308620 SLIDER, SPEED
101 1 2308409 MAGN , 1/4 X 1/4
102 1 2778408 MAGN , 1/4 X 1/8
103 1 2300252 COVER, SPEED SELE OR
104 1 2308606 SWITCH, DOUBLE FINGER
105 1 2308608 SWITCH, SINGLE FINGER
106 1 2307900 WHEEL, SPEED
107 1 2308625 SLIDER,  EERING
108 9 2302100 SCREW-6-20 X 1/2
109 4 2372103 SCREW-6.20 X 3/8
110 1 2316600 DE L, ON/OFF SWITCH
112 1 2994859
BAG  SEMBLY- 5
RUBBER BUMPERS
113 1 2302907  RN RLF PD FP
n
1 2994864
BAG  SEMBLY-
(BOLT,NUT,W HERS)
*114 6 2263462 BOLT-MOUNTING-1/4X2
*116 6 2261713 W HER-1/4
*117 6 2263103 NUT NYLOK 1/4-20 MTG
*118 6 2301720
W HER-MOUNTING
RUBBER
n
1 2888460 SEAL & ORING KIT
119 1 2335400 SHRINK TUBE-1/2” OD X 2
120 1 2375400
SHRINK TUBE-1/4” OD
X 1-3/4”
121 1 2325401
SHRINK TUBE-3/4”” OD X
2” W/ADHS
122 1 640-316 LEADWIRE, BROWN 71”
1 640-317 LEADWIRE, BROWN 86”
