MITSUBISHI ELECTRIC 9900CX SERIES UPS
9900CX SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
2-4

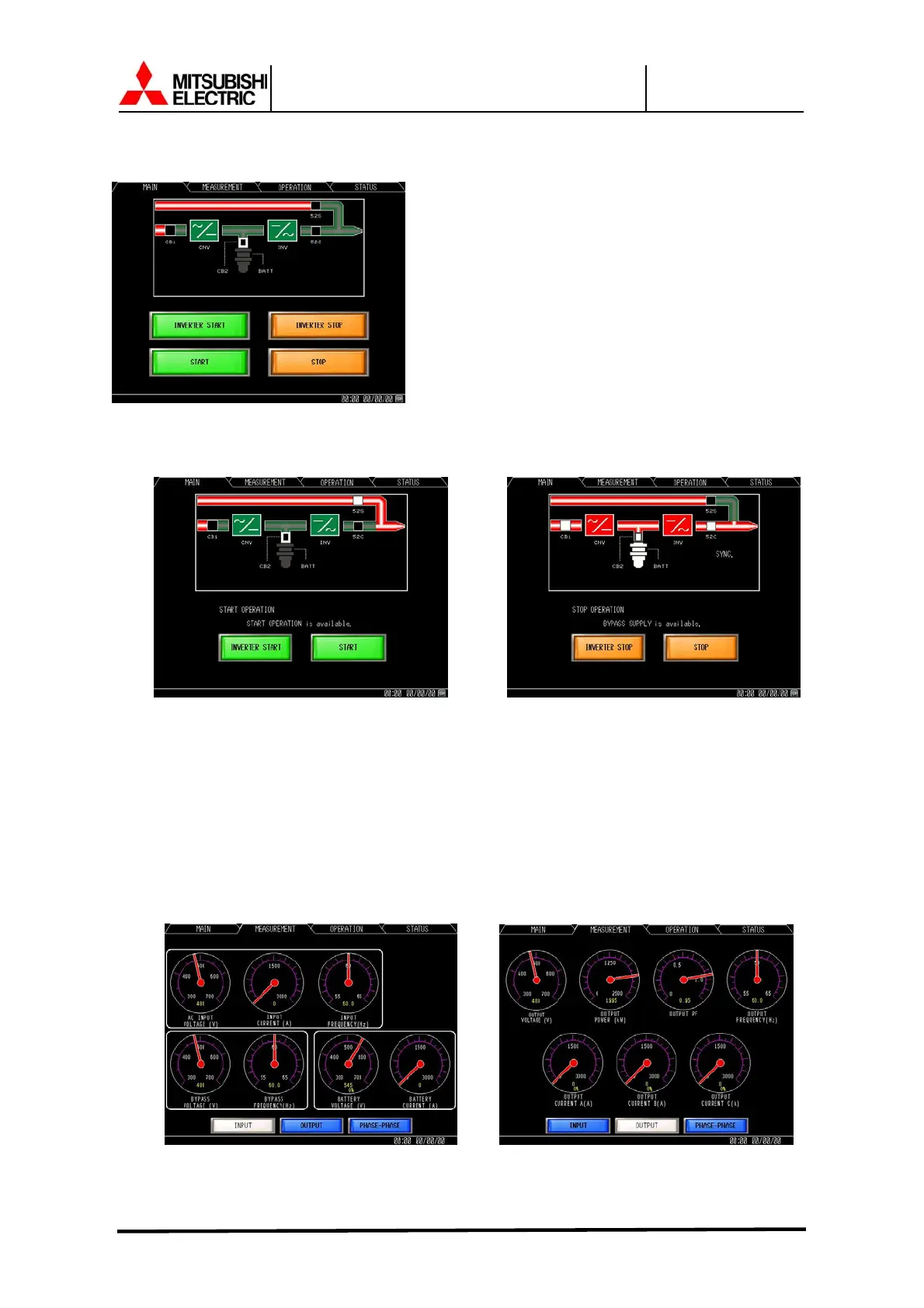

Figure 2.3(a)*
Start/Stop Operation
*Meaning of the icons in SMS (Single Modular System)
INV. START:
UPS Module Startup
INV. STOP:
UPS Module Stop
START:
Output Transfer from Bypass Line to Inverter
STOP:
Output Transfer from Inverter to Bypass Line
Figure 2.3(b)
Start Operation
Figure 2.3(c)
Stop Operation
Follow Start/Stop operation guidance accordingly.
B) MEASUREMENT MENU
(Figure 2.4)
This screen shows details of measured values. Input and Output values are displayed.
During Battery operation, Remaining battery power and Run time are also displayed.
Figure 2.4(a)
Input Values
Figure 2.4(b)
Output Values
To Next Page
