MITSUBISHI ELECTRIC 9900CX SERIES UPS
9900CX SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
3-4

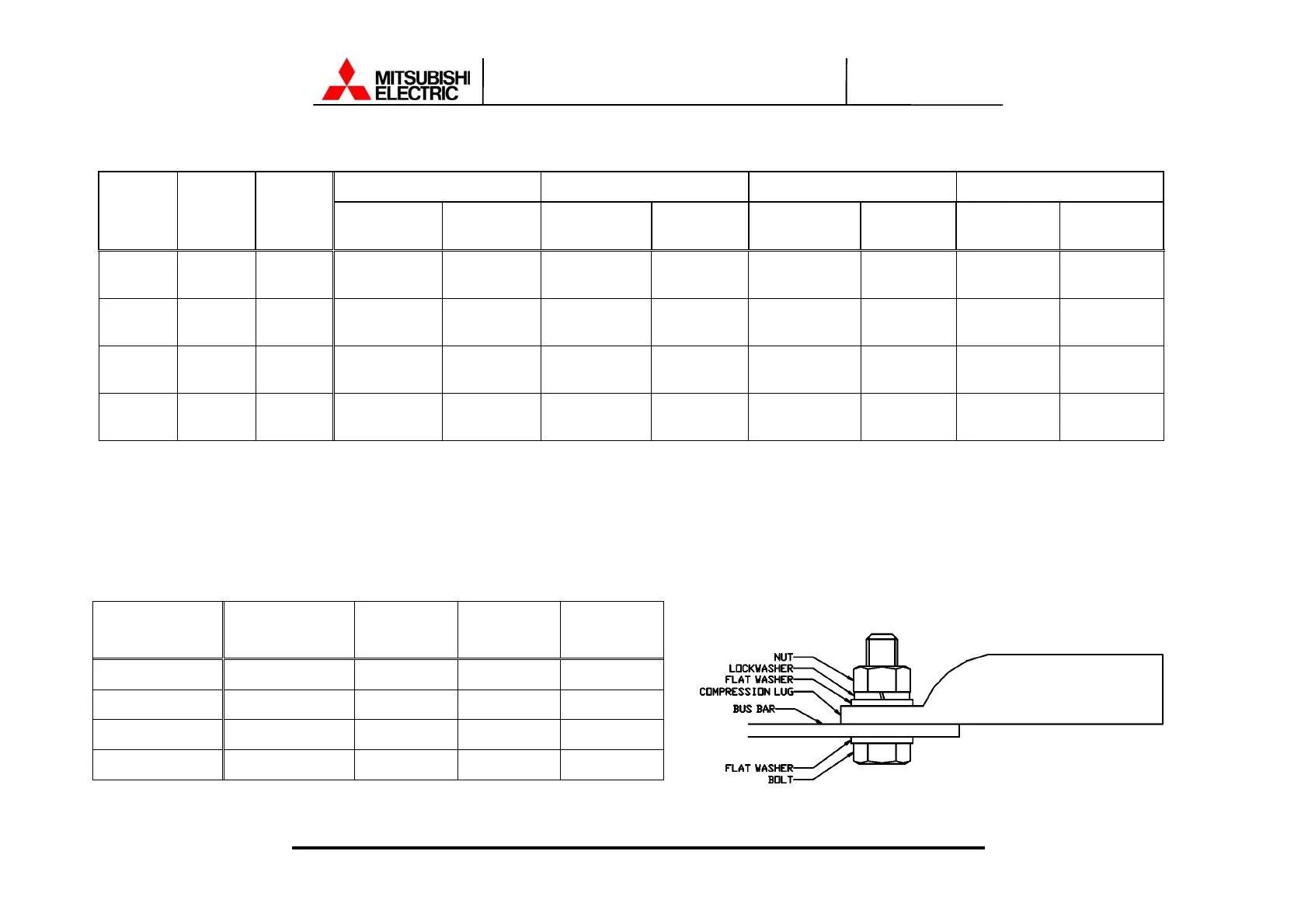

Table 3.4 Recommended Cable Sizes
Input Side Output Side Bypass Side DC Input Side
kVA
Capacity
Input
Voltage
Output
Voltage
Cable
Size
Torque
in. lbs
Cable
Size
Torque
in. lbs
Cable
Size
Torque
in. lbs
Cable
Size
Torque
in. lbs
1050kVA 480V 480V 6 x 500MCM
347 - 469
in. lbs
6 x 500MCM
347 - 469
in. lbs
6 x 500MCM
347 - 469
in. lbs
10 x 500MCM
347 - 469
in. lbs
1400kVA 480V 480V 6 x 500MCM
347 - 469
in. lbs
6 x 500MCM
347 - 469
in. lbs
6 x 500MCM
347 - 469
in. lbs
11 x 500MCM
347 - 469
in. lbs
1750kVA 480V 480V 7 x 500MCM
347 - 469
in. lbs
7 x 500MCM
347 - 469
in. lbs
7 x 500MCM
347 - 469
in. lbs
12 x 500MCM
347 - 469
in. lbs
2100kVA 480V 480V 9 x 500MCM
347 - 469
in. lbs
9 x 500MCM
347 - 469
in. lbs
9 x 500MCM
347 - 469
in. lbs
14 x 500MCM
347 - 469
in. lbs
*1 – Use 75 degree C copper wire.
*2 - The cables must be selected to be equal or larger to the sizes listed in the table.
*3 - Voltage drop across power cables not to exceed 2% of nominal source voltage.
*4 - Allowable ampere-capacities based on copper conductors with 75 degree C. insulation at ambient temperature of 40 degree C.
Table 3.5 Recommended Hardware
UPS Capacity Bolt size
Flat washer
size
Split
lockwasher
size
Nut size
1050kVA M12 x 40mm M12 M12 M12
1400kVA M12 x 40mm M12 M12 M12
1750kVA M12 x 40mm M12 M12 M12
2100kVA M12 x 40mm M12 M12 M12
