Mitsubishi Electric 9900CX SERIES User Manual

MITSUBISHI ELECTRIC 9900CX SERIES UPS
9900CX SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
2-9

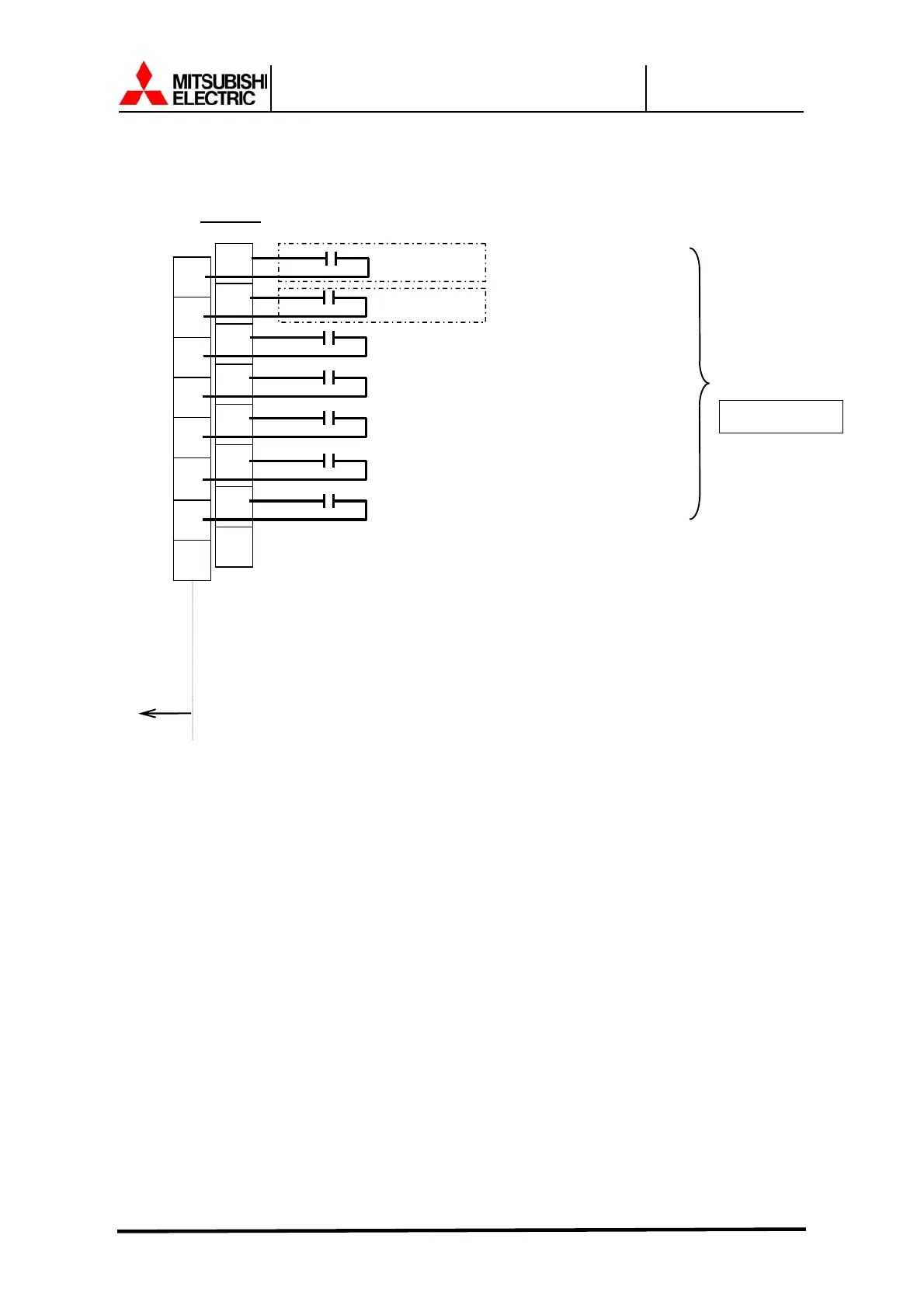

Figure 2.10(b) External Signal Terminal Block TN11-14 (NEC Class2)
TN11-14
(User supplied dry
contact)
IN3: BATTERY TEMP. HIGH
IN1: REMOTE INVERTER START
IN2: REMOTE INVERTER STOP
REMOTE EPO
IN4: POWER DEMAND
CB2 AX
52L AX
21
23
25
27
29
35
33
31
22
24
26
28
30
36
34
32
Battery Breaker Panel
Load Circuit Switch
Not use
UPS

Mitsubishi Electric 9900CX SERIES Specifications

General

Brand	Mitsubishi Electric
Model	9900CX SERIES
Category	Power Supply
Language	English
