Mitsubishi Electric Mr. SLIM User Manual

11
E
D
F
PR
ES
I
3

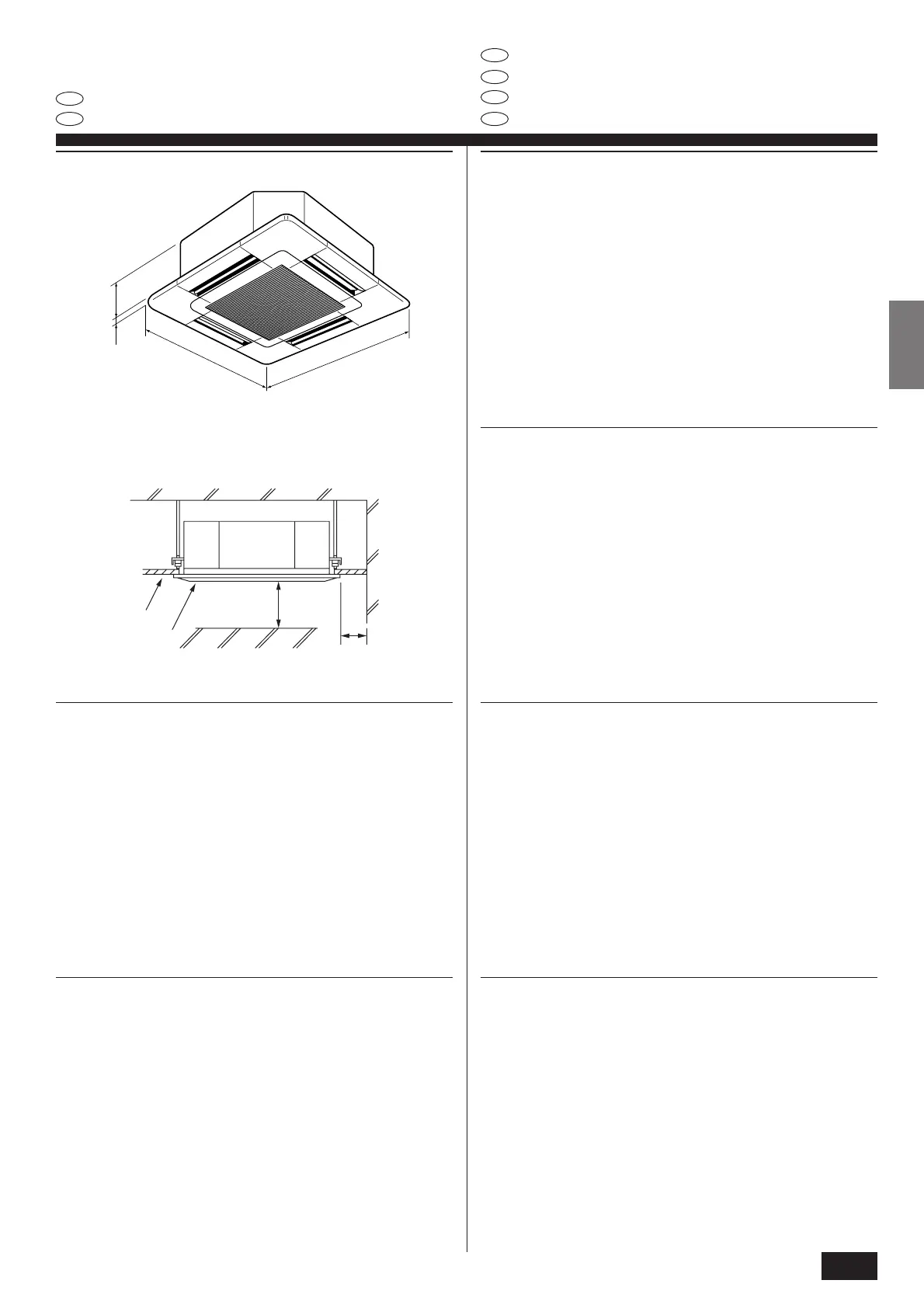

3. Installation diagram
3. Schéma d’installation
3. Diagrama de instalação
3. Installationszeichnung
3. Diagrama de instalación
3. Schema d’installazione
3.1. Indoor unit
A Ceiling
B Grille
C Obstacle
D Min. 1000 mm
E Min. 500 mm (Entire periphery)
If setting the maintenance space for E, be sure to leave is a minimum of 700 mm.
23520
650
650
(mm)
C
D
E
A
B
3.1. Innenanlage
A Decke
B Gitter
C Hindernis
D Min. 1000 mm
E Min. 500 mm (Gesamte Außenseite)
Bei der Einrichtung des Freiraums für Wartung und Instandhaltung für E dafür sorgen, daß
dabei mindestens 700 mm berücksichtigt werden.
3.1. Unidad interior
A Techo
B Rejilla
C Obstáculo
D Min. 1000 mm
E Min. 500 mm (Toda la periferia)
Si ajusta el espacio de mantenimiento para E, asegúrese de dejar un mínimo de 700 mm.
3.1. Appareil intérieure
A Plafond
B Grille
C Obstacle
D Min. 1000 mm
E Min. 500 mm (Toute la périphérie)
Lors de la définition de l’espace de maintenance pour E, veiller à laisser au moins 700 mm.
3.1. Unidade interior
A Tecto
B Grelha
C Obstáculo
D Min. 1000 mm
E Min. 500 mm (Toda a periferia)
Se deixar o espaço de manutenção para E, certifique-se de que deixa um mínimo de 700
mm.
3.1. Sezione interna
A Soffitto
B Griglia
C Ostacolo
D Min. 1000 mm
E Min. 500 mm (Intero bordo esterno)
Nel sistemare lo spazio di manutenzione per E, lasciare almeno 700 mm.

Mitsubishi Electric Mr. SLIM Specifications

General

Type	Split System
Inverter Technology	Yes
Refrigerant	R-410A
Indoor Unit Noise Level	19 dB (varies by model)
Indoor Unit Dimensions	Varies by model
Outdoor Unit Dimensions	Varies by model
Energy Efficiency Ratio (EER)	Varies by model
Coefficient of Performance (COP)	Varies by model
Noise Level	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
Features	Quiet Mode
