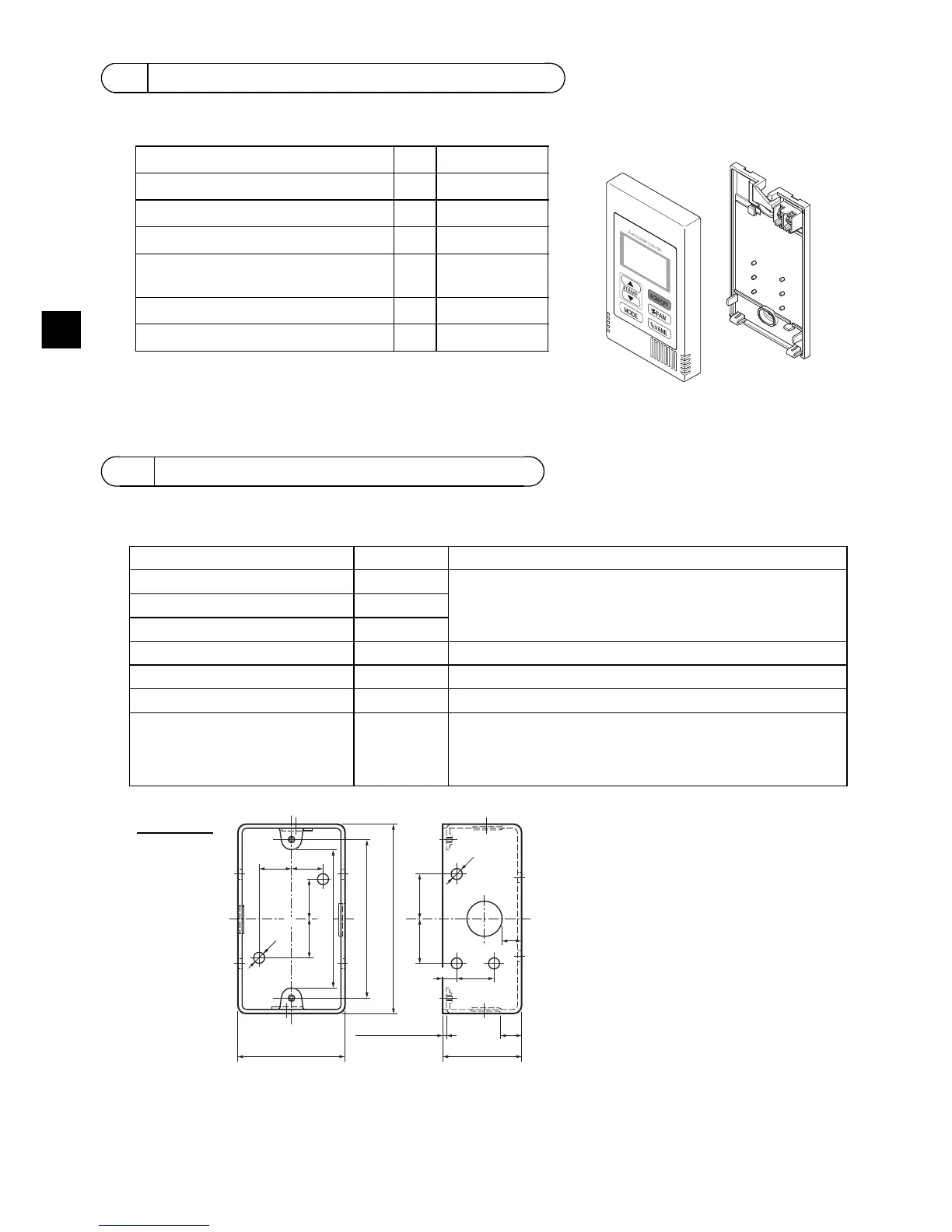

– 4 –
GB
The following parts are included in the box.
(1) Field-supplied parts
The following parts are field-supplied parts.
(2) Field-supplied tools
• Flat-tip screwdriver (Width: 3 - 5 mm (1/8 - 7/32 inch))
• Knife or Nipper
• Miscellaneous tools
2 Component names and supplied parts
*3 ISO metric screw thread
*4 Remote controller cable is not included.
3 Field-supplied parts/Required tools
Parts name Qty. Notes
Single switch box 1 Not required for direct wall installation
Thin metal conduit Necessary
Lock nut and bushing Necessary
Cable cover Necessary Required for routing remote controller cable along a wall
Putty Reasonable
Molly anchor Necessary
Remote controller cable
(Use a 0.3 mm² (AWG22) 2-core
sheathed cable.)
Necessary If you need to use a cable extension longer than 10 m (32 ft),
select an electric wire that meets the following specifications:
Wire specification VCTF or CVV (2-core):
1.25 mm² (stranded 16 AWG) or equivalent
Parts name Qty. Appearance
Remote controller (top case) 1 Right figure *1
Remote controller (bottom case) 1 Right figure *2
Roundhead cross slot screws M4×30 2 *3
Wood screw 4.1×16
(for direct wall installation)
2*3
Installation Manual (this manual) 1
Instruction Book 1
Bottom case *2
Top case *1
h
16 (5/8) 16 (5/8)
25 (1)
25 (1)
102 (4)
54 (2-1/8)
20
(13/16)
10
(3/8)
44 (1-3/4)
1.5 (1/16) or less
83.5±0.4 (3-3/8±1/32)
ø6 (1/4OD)
20 (13/16)
6 (1/4)
ø6 (1/4OD)
20 (13/16)
Switch box
unit: mm (in)
WT06429X01_GB.fm Page 4 Friday, December 16, 2011 10:19 AM
