DLP
®
HOME CINEMA
39
Chapter 2
DLP
®
HOME CINEMA
DISASSEMBLY & PARTS REPLACEMENT
DLP Home Cinema
SIZE V45C V45 V45CA V45+
73” WD-73C11 WD-73640 WD-73CA1 WD-73740
82” WD-82740
92”
V45++
WD-73840
WD-82840
WD-92840
V45CB
WD-82CB1

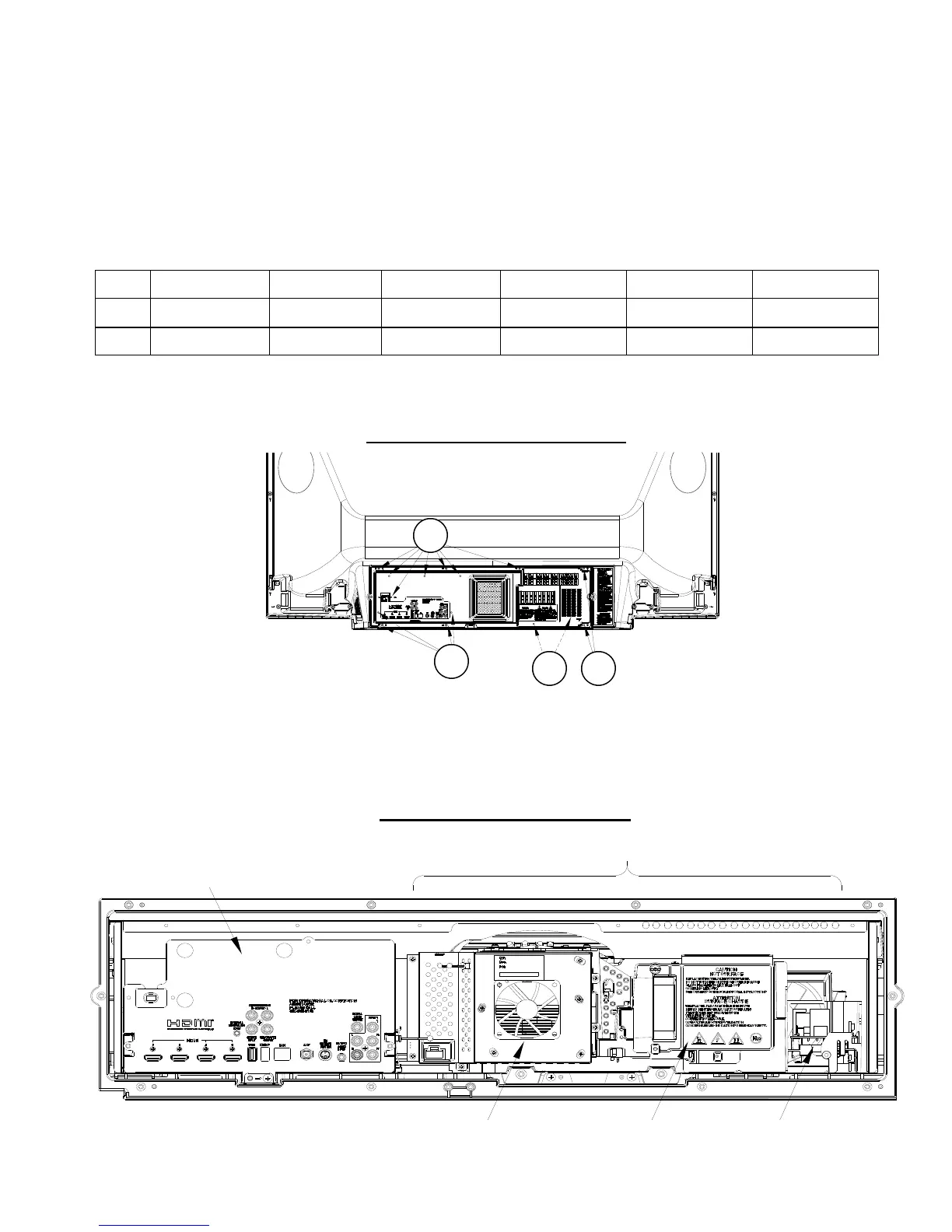

BACK COVER REMOVAL
ASSEMBLY LOCATIONS
CHASSIS
OPTICAL ENGINE ASSEMBLY
DMD FAN LAMP PWB-BALLAST
Back Cover Removal
1. Remove screws (A) and remove the Lamp Cover.
2. Remove screws (B) from behind the Lamp Cover.
3. Remove Screws (C).
4. Remove the back cover from the TV.
C
A B
C
