ADJUSTMENT PROCEDURES
Index Delay Adjustment (Perform after color wheel replacement)
1. Enter the Service Menu <MENU><2-4-5-7>.
2. Select the Ramp Pattern shown below <2> <CH-DOWN> or
<> x3.
3. Use the <VIDEO> button to select the adjustment, “60.IDL”.
4. After selecting the IDL adjustment item, use the Navigation <
> buttons to adjust the ramp pattern color
bars for the smoothest transition from dark to bright.
5. Press <ENTER> to save the adjustment data. The on-screen display will turn red while the data is saved.
<MENU><2-4-5-7> <2> <CH-DOWN> or
<> x2
Vertical & Horizontal Position Adjustment
60.IDL
201
Data
Adjustment
SERVICE
TVM
<MENU><2-4-5-7> <2> <CH-DOWN> or <> x3 <VIDEO>
Index Delay Adjustment
1.HVPOS
Data (HPOS)
Adjustment
SERVICE
TVM
Data (VPOS)
-3
4

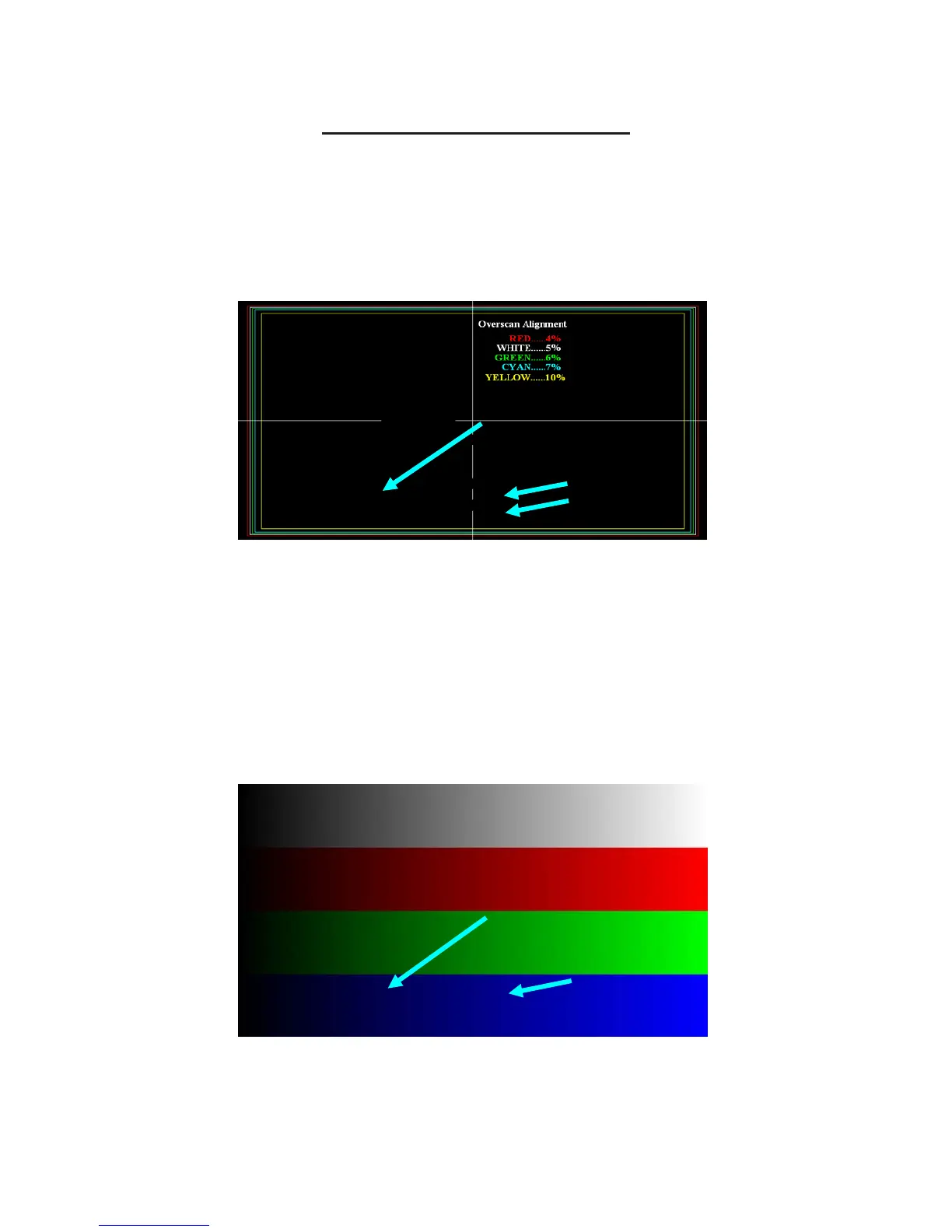

Horizontal and Vertical Position Adjustment
1. Enter the Service Menu <MENU><2-4-5-7>.
2. Select the Geometry Test Pattern shown <2> <CH-DOWN>or
<> x2.
3. If necessary, use the <VIDEO> button to select the adjustment, “1.HVPOS”.
4. After selecting the HVPOS adjustment item, use the Navigation <
> buttons to center the display.
5. Press <ENTER> to save the adjustment data. The on-screen display will flash red while the data is saved.
