Chapter 2 NAME OF PARTS
Engine external diagrams
The external diagram is for the standard type of the engine. The installed equipment and shapes differ according to
the engine type.
L2E left view

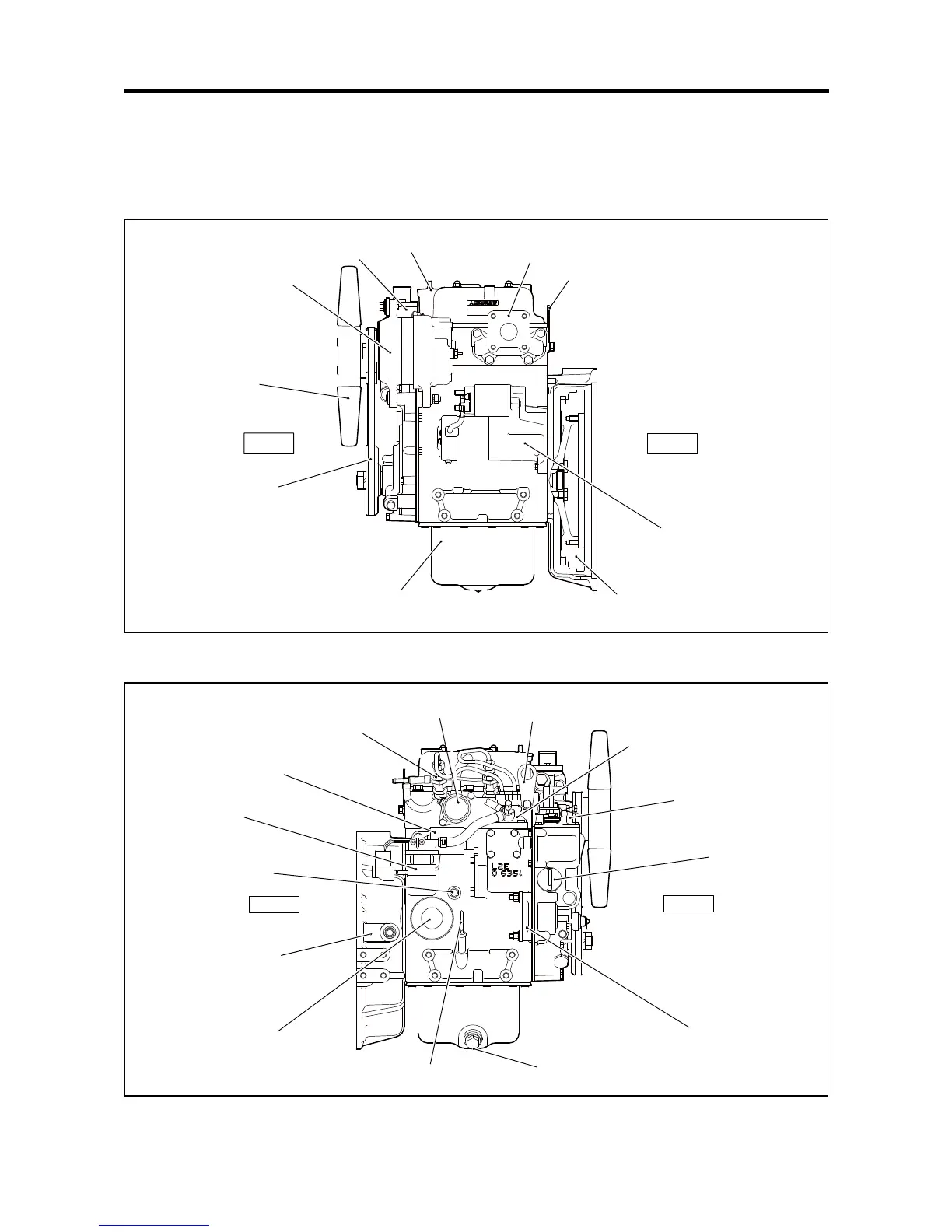

Fig. 2-1 Engine left view
L2E right view
Fig. 2-2 Engine right view
Rear
Rear hanger
Exhaust manifold
Starter
Flywheel
Oil pan
Belt
Thermostat
Oil filler
Alternator
Fan
Front
Rear
Front
Oil drain plug
Oil level gauge
PTO
Oil filler
Water pump
Fuel injection pump
Front hanger
Oil filter
Coolant drain plug
Fuel filter
Stop solenoid
Inlet cover
Fuel injection nozzle
Flywheel housing
