10-1
Chapter 10 TRANSPORTATION

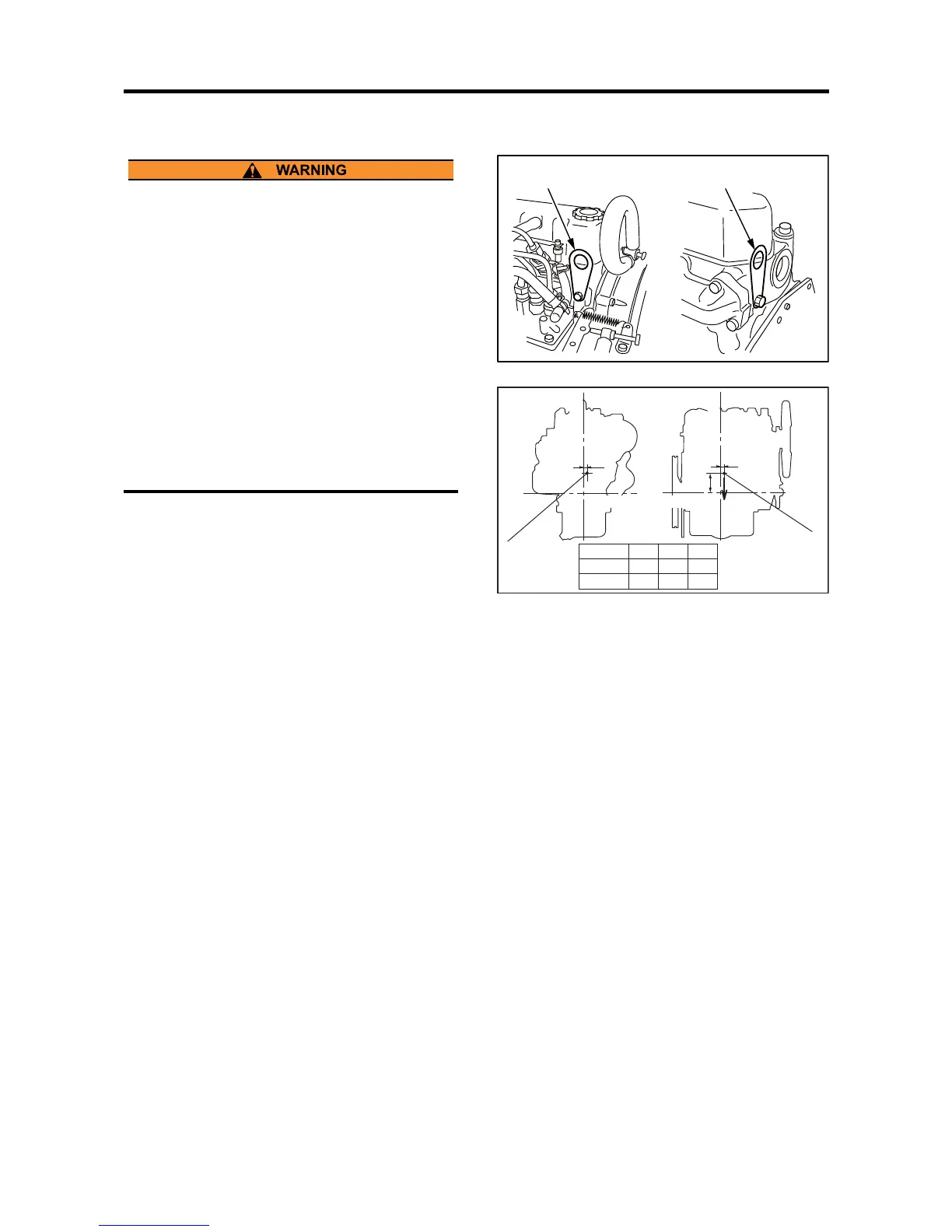

Lifting the engine
Fig. 10-1 Hangers
Fig. 10-2 Engine's center of gravity
(standard specification)
To lift the engine, use wire ropes, shackles and slings
capable of supporting the weight of the engine.
Attach the wire rope to the hangers provided on the
engine using a correct sling.
Keep the engine balanced during lifting by consider-
ing the engine's center of gravity.
Keep the angle formed by slings attached to hangers
within 60°. If the angle exceeds this limit, excessive
load could be imposed on the hangers and this could
damage the hangers and result in a serious accident.
Attach wire ropes to the hangers after removing the
pipe cover and the insulator near the hangers. To
prevent wire ropes from contacting the engine, use a
cloth or other soft padding.
Front hanger
Rear hanger
XZY
L2E
7697
4767
L3E
Crankshaft center
Engine center
Engine center
Z
Y
X
(mm)
The center
of gravity
The center
of gravity
