Romote controller signal receiving part
Backup switch
Check monitor
(Error code display E1~E59)
Operation display light (Green)
• Lights continuously: Under air conditioner operaton
• Keeps flashing: Under heating preparation (At the time of heating operation)
• 3 time flash: Under reception of a remote controller signal
Timer/Check display light (Yellow)
• Lights continuously: Under timer operation
• 0.5 seconds lighting, 0.5 seconds stays OFF : At the time of abnormalities
• 2 seconds lighting, 1 second stays OFF : Filter sign
TIMER
RUN
CHECK
TIMER/CHECK
Error code [ ~ ]
Operation display light (Green)
The following two kinds are displayed.
• Lights continuously: Under air conditioner operation
• Keeps flashing: Under heating preparation
Flashes 3 times when a
signal is received from
the remote controller.
Timer/Check display (Yellow)
The following three kinds are displayed.
• Lights continuously:Under timer operation
•
Long lighting (2 seconds lighting, 1 second stays OFF)
: Filter sign
(Clean the air filter when this display is output.)
•
Short lighting (0.5 seconds lighting, 0.5 seconds stays OFF): At the time of the abnormalites air conditioner
TIMER/CHECK
RUN

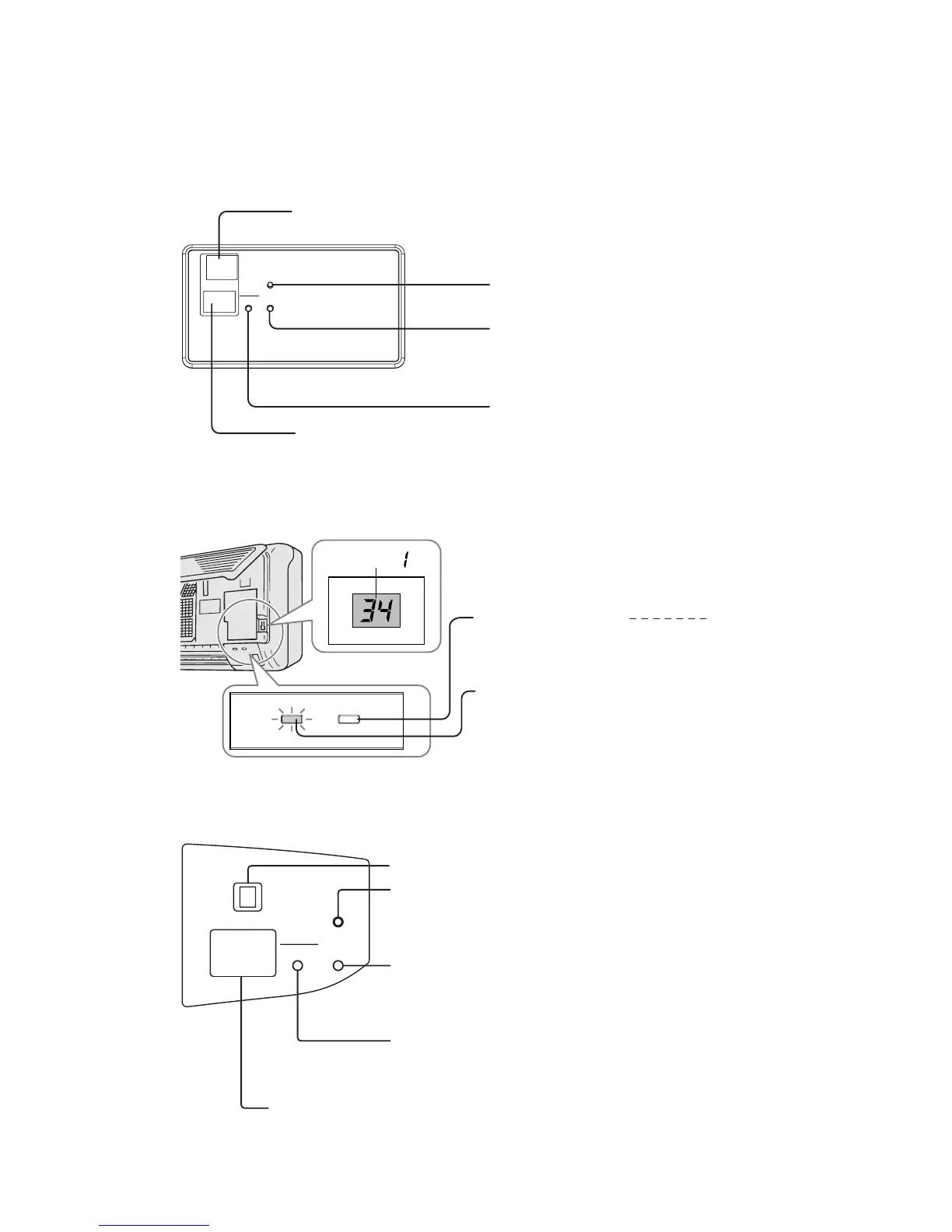

1.6.4 Check display on wireless specification models (FDEN · FDKN · FDT)
(1) Indication board
(a) FDEN Series
(b) FDKN Series
(c) FDT (Wireless kit)
Remote controller signal receiving part
Backup switch
Operation display light (Green)
• Light continuously: Under air conditioner operation
• Keeps flashing: Under heating preparation (At the time of heating operation)
• 3 time flash: Under reception of a remote controller signal
Timer/Check display light (Yellow)
• Light continuously: Under timer operation
• 0.5 seconds lighting, 0.5 seconds stays OFF: At the time of abnormalities
• 2 seconds lighting, 1 second stays OFF: Filter sign
Check monitor
(Error code display E1 ~ E59)
TIMER
CHECK RUN
To Next Page
