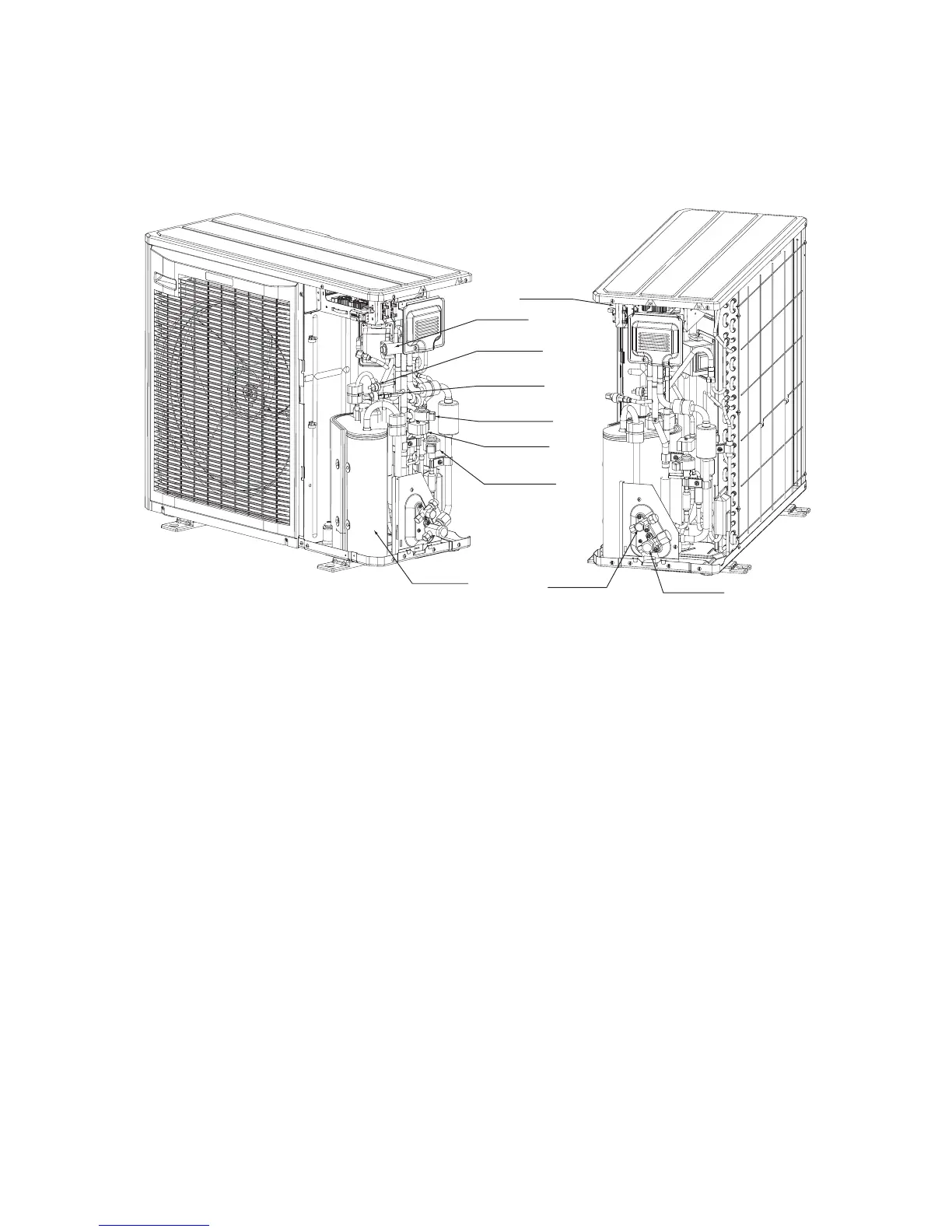

2.2.4 Inside view
Outdoor unit
Control box
4way valve
High pressure
switch
(63H1)
Low pressure
sensor
(PSL)
Electronic
expansion valve
(EEVH)
Electronic
expansion valve
(EEVC)
Solenoid valve
(SV1)
Compressor
Service valve
(Liquid side)
Service valve
(Gas side)
