FX1N Series Programmable Controllers Installation Notes 3.
3-18
3.8.2 FX
1N

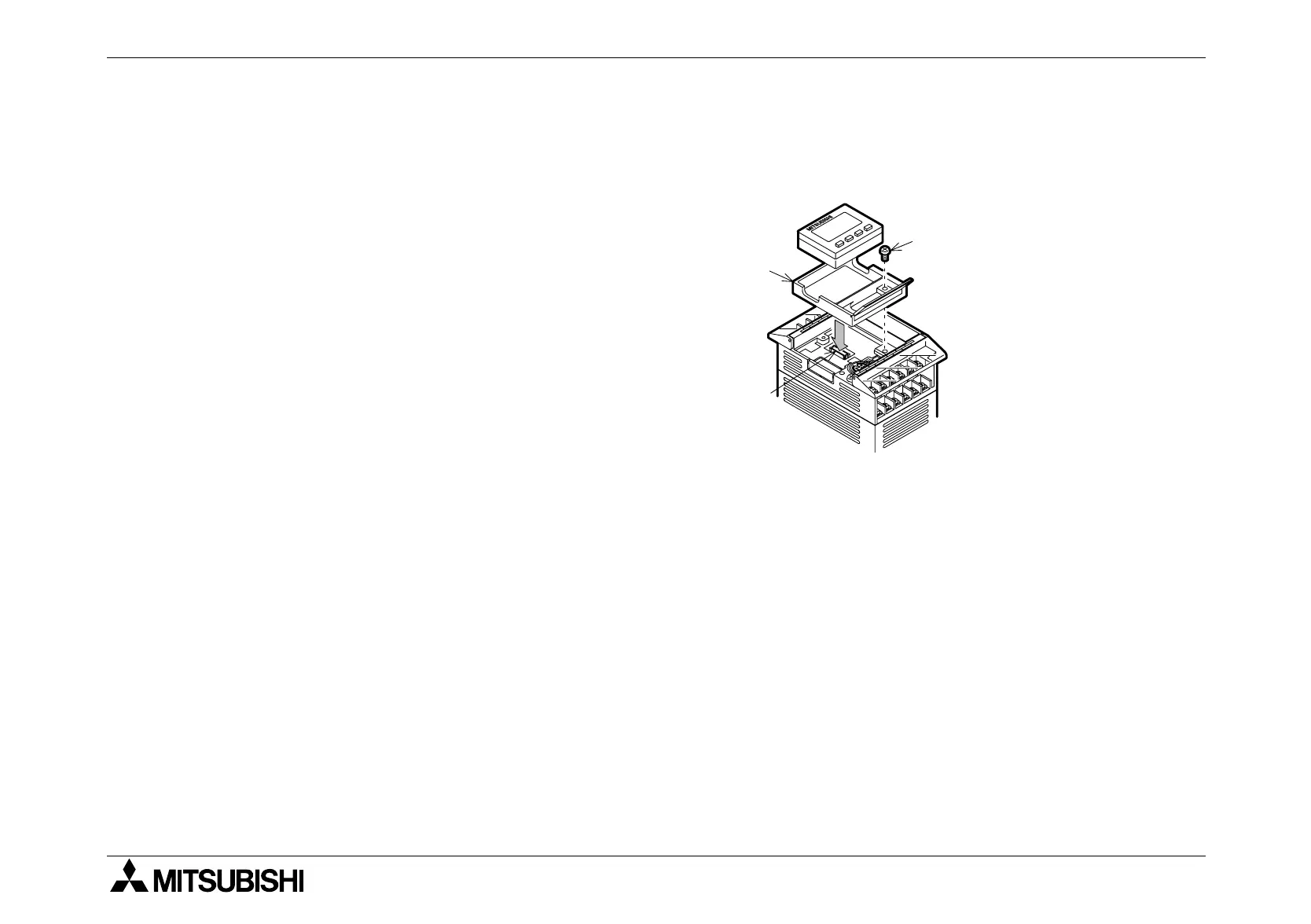

-5DM Display Module
Always make sure the power is turned off, before installing the 5DM.
A) Top cover for DM
B) Optional equipment connector port.
C) M3 screw to secure top cover.
• Remove the base unit top cover.
• Attach the top cover for DM A), and
secure with screw C) (if 5DM is to be
permanently mounted)
• Plug in the 5DM at connector B)
For further information please refer to the FX
1N
-5DM users manual.
B)
A)
C)
