FX1N Series Programmable Controllers Outputs 6.
6-2

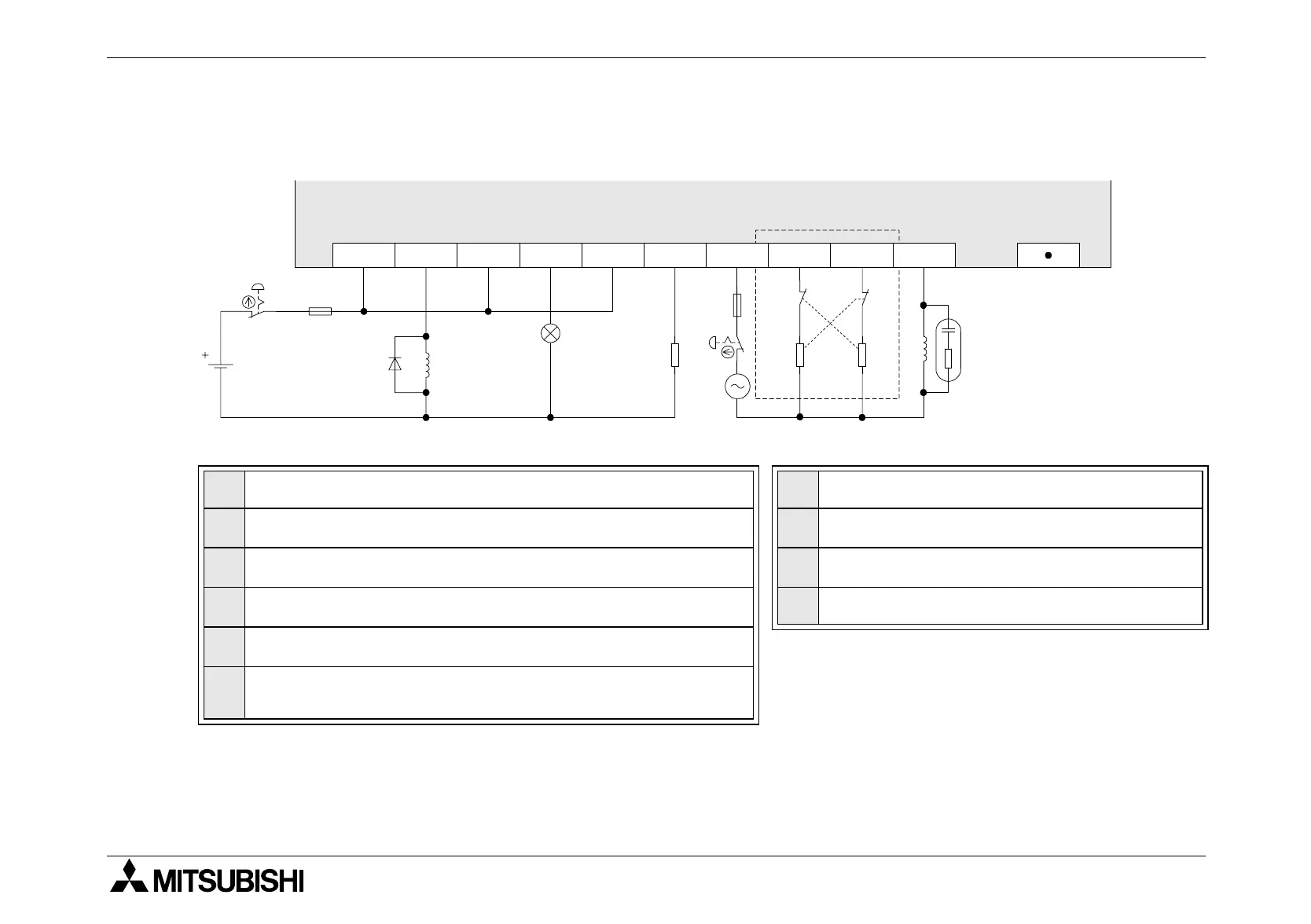

6.2 Relay Output Example
Typical Relay
）
➊
Do not use this terminal
➐
Inductive load
➋
Fuse
➑
Incandescent Lamp
➌
Reverse-current protection diode (See section 6.4)
➒
DC Power Supply
➍
External Mechanical Interlock (See section 6.4)
➓
AC Power Supply
➎
Emergency Stop
➏
Surge absorber (0.1
µ
F capacitor + 100-120
Ω
resistor)
(See section 6.4)
MC2 MC1
COM0
MC2MC1
➒
➌
➋
➑
➋
➍
Y000 COM1 Y001 COM2 Y002 Y003 Y004 Y005
➎
➎
➓
➏
➊
➐
➐
COM3
