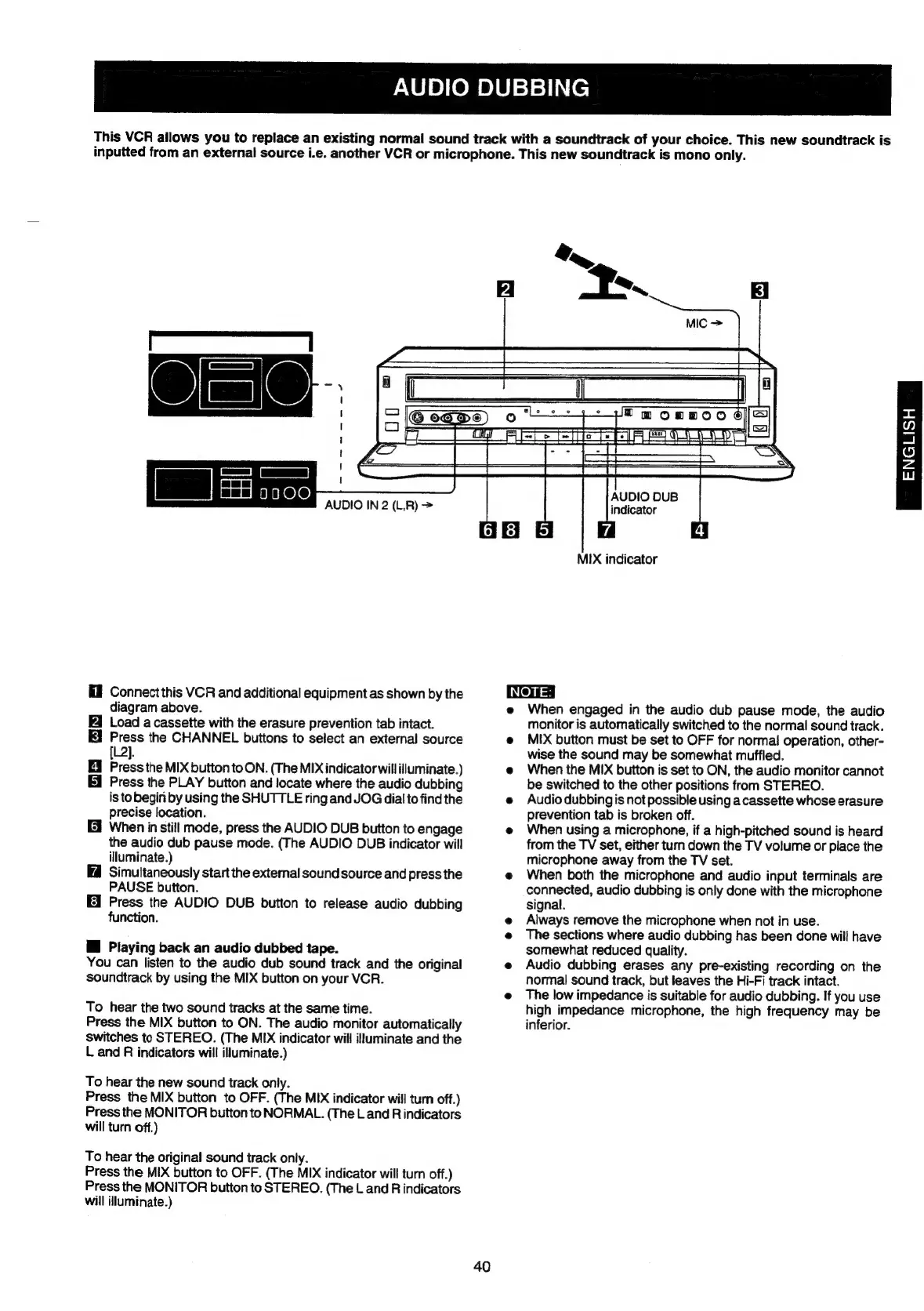

AUDIO DUBBING
This
VCR
ailows
you
to
replace
an
existing
normal
sound
track
with
a
soundtrack
of
your
choice.
This
new
soundtrack
is
inputted
from
an
external
source
i.e.
another
VCR
or
microphone.
This
new
soundtrack
is
mono
only.
P| fer is reo
wo
eS MOnmnmoo ©
Connect this VCR and additional equipment as shown by the
diagram above.
Load a cassette with the erasure prevention tab intact.
Press the CHANNEL buttons to select an external source
[L2].
E¥ Press the MIX button to ON. (The MIX indicator will illuminate.)
Press the PLAY button and locate where the audio dubbing
is to begin by using the SHUTTLE ring and JOG dial to find the
precise location.
[I When in still mode, press the AUDIO DUB button to engage
the audio dub pause mode. (The AUDIO DUB indicator will
illuminate.)
Simultaneously start the external sound source and press the
PAUSE button.
EI Press the AUDIO DUB button to release audio dubbing
function.
W@ Playing back an audio dubbed tape.
You can listen to the audio dub sound track and the original
soundtrack by using the MIX button on your VCR.
To hear the two sound tracks at the same time.
Press the MIX button to ON. The audio monitor automatically
switches to STEREO. (The MIX indicator will illuminate and the
L and R indicators will illuminate.)
To hear the new sound track only.
Press the MIX button to OFF. (The MIX indicator will turn off.)
Press the MONITOR button to NORMAL. (The L and R indicators
will turn off.)
To hear the original sound track only.
Press
the
MIX
button
to
OFF.
(The
MIX
indicator
will
turn
off.)
Press
the
MONITOR
button
to
STEREO.
(The
L
and
R
indicators
will
illuminate.)
40
aS) WE EER GEE
GR eee
AUDIO DUB
indicator
MIX indicator
NOTE:
When engaged in the audio dub pause mode, the audio
monitor is automatically switched to the normal sound track.
MIX button must be set to OFF for normal operation, other-
wise the sound may be somewhat muffled.
When the MIX button is set to ON, the audio monitor cannot
be switched to the other positions from STEREO.
Audio dubbing is not possible using a cassette whose erasure
prevention tab is broken off.
When using a microphone, if a high-pitched sound is heard
from the TV set, either turn down the TV volume or place the
microphone away from the TV set.
When both the microphone and audio input terminals are
connected, audio dubbing is only done with the microphone
signal.
Always remove the microphone when not in use.
The sections where audio dubbing has been done will have
somewhat reduced quality.
Audio dubbing erases any pre-existing recording on the
normal sound track, but leaves the Hi-Fi track intact.
The low impedance is suitable for audio dubbing. If you use
high impedance microphone, the high frequency may be
inferior.
