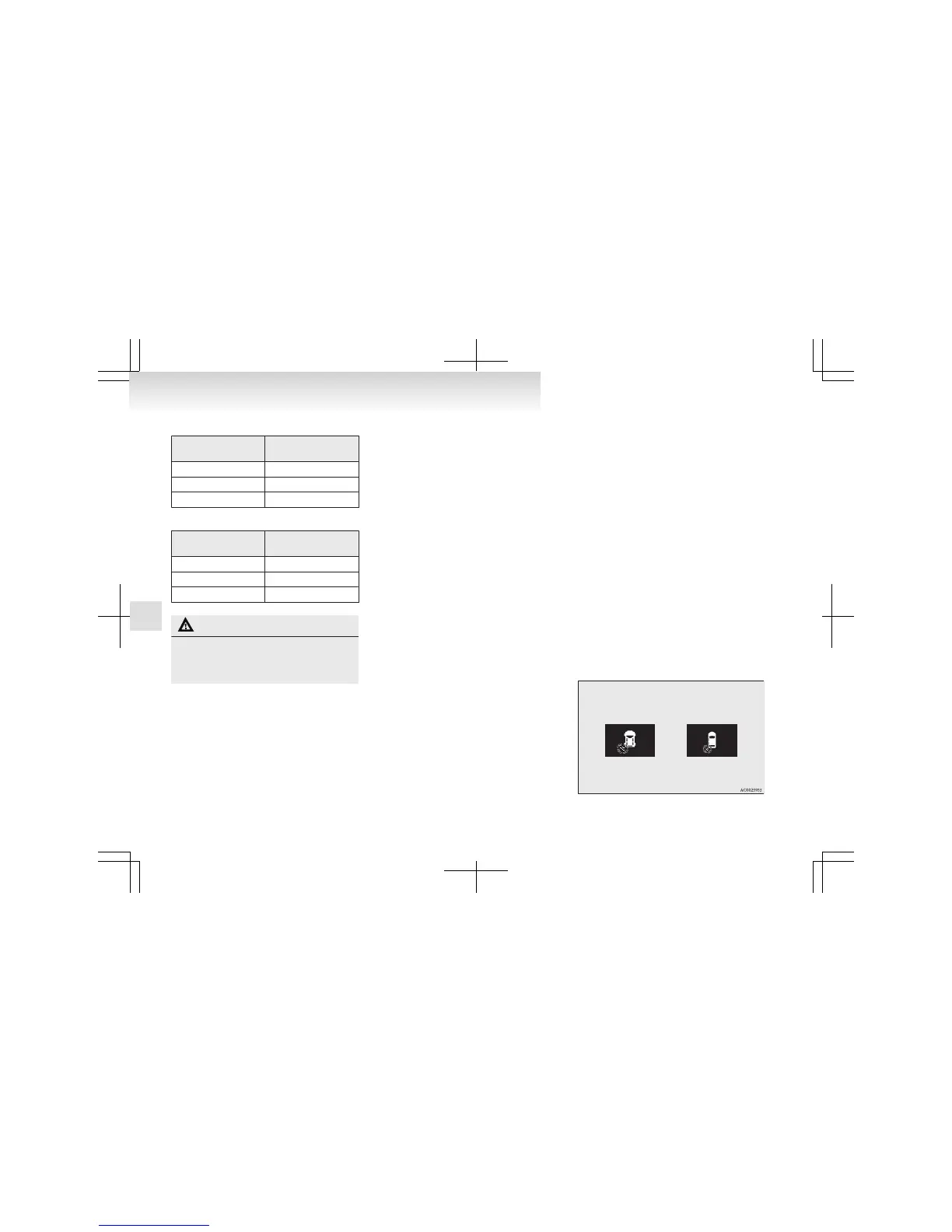

Back sensor (vehicles without a towing bar)
Vehicle to obstacle dis-
tance
Warning display/sound
cycle
Approx. 150 to 80 cm Intermittent
Approx. 80 to 40 cm Fast intermittent
Within approx. 40 cm Continuous
Back sensor (vehicles with a towing bar)
Vehicle to obstacle dis-
tance
Warning display/sound
cycle
Approx. 150 to 100 cm Intermittent
Approx. 100 to 60 cm Fast intermittent
Within approx. 60 cm Continuous
CAUTION
l
The distances given are to be used for ref-
erence
only, as errors may be caused by
various factors, such as temperature, hu-
midity, or the shape of the obstacles.
NOTE
l
When
the sensors detect different obstacles
at the same time, the information screen in
the multi-information display indicates the di-
rections of the obstacles each sensor is detect-
ing. However, closer obstacles are given pri-
ority over other detected obstacles and the
warning buzzer sounds to inform you of clos-
er obstacles.
Changing the detection areas
E00615800191
The detection areas can be changed as follows:
Vehicles with a towing bar
While
the operation of the system is stopped at the
“SONAR” switch, push the “SONAR” switch ap-
proximately 3 seconds or more, and release it. The
buzzer sounds twice to indicate that the detection
area has been changed.
Vehicles without a towing bar
While the operation of the system is stopped at the
“SONAR” switch, push the “SONAR” switch ap-
proximately 3 seconds or more, and release it. The
buzzer sounds once to indicate that the detection
area has been changed.
NOTE
l
The detection area will not change if you
keep the “SONAR” switch pushed for 10 sec-
onds or more.
l
After pushing the “SONAR” switch, revers-
ing sensor system operation differs accord-
ing to the detection area setting.
• Setting when towing bar is not equipped
When the gearshift lever or selector lever
is moved to the “R” position, the revers-
ing sensor system will operate even if cor-
ner sensor operation was stopped by push-
ing the “SONAR” switch.
• Setting when towing bar is equipped
When
reversing sensor system operation
was stopped by pushing the “SONAR”
switch, the reversing sensor system will
not operate until the engine has been stop-
ped even if the gearshift lever or selector
lever is moved to the “R” position.
To resume reversing sensor system opera-
tion, push the “SONAR” switch or stop
and restart the engine, and then move the
gearshift lever or selector lever to the “R”
position.
Reversing sensor system warning dis-
play
E00615900310
In case there is a malfunction in the reversing sen-
sor
system, the display for the malfunctioning sen-
sor will blink and the warning buzzer will sound
for approximately 5 seconds. Even after the buzzer
has stopped sounding, the display will continue
blinking until the system reverts to the normal
state. Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Service Point.
