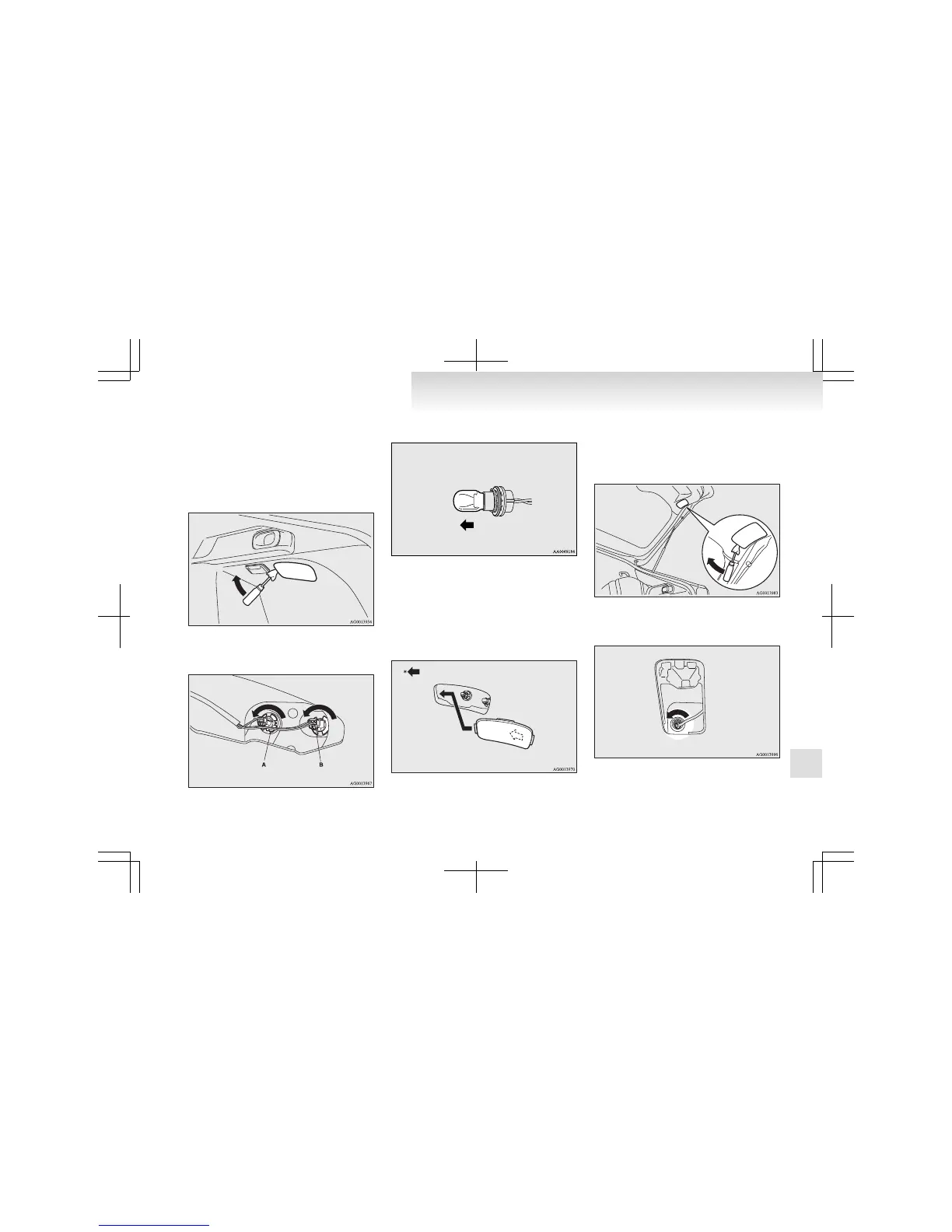

Rear combination lamps
E01004201151
Stop and tail lamps and rear turn-signal lamps
1. Insert
a straight blade (or minus) screwdriver
with the end covered with a cloth or other ob-
ject at the edge of the cover and pry gently to
remove the cover.
2. Remove
the socket and bulb assemblies by
turning them anticlockwise.
A- Rear turn-signal lamp
B- Stop and tail lamp
3. Remove the bulb by pulling it out.
4. To
install the bulb, perform the removal
steps in reverse.
NOTE
l
When installing the cover, make sure the ar-
row on the cover is pointing in the direction
of the front of the vehicle.
*: Front of the vehicle
Reversing lamps
1. Insert a straight blade (or minus) screwdriver
with the end covered with a cloth or other ob-
ject into the cut out area of the cover and pry
gently to remove the cover.
2. Remove
the socket and bulb assembly by turn-
ing it anticlockwise.
Maintenance
8-39
8
To Next Page
