Mitsubishi LS2-190 User Manual

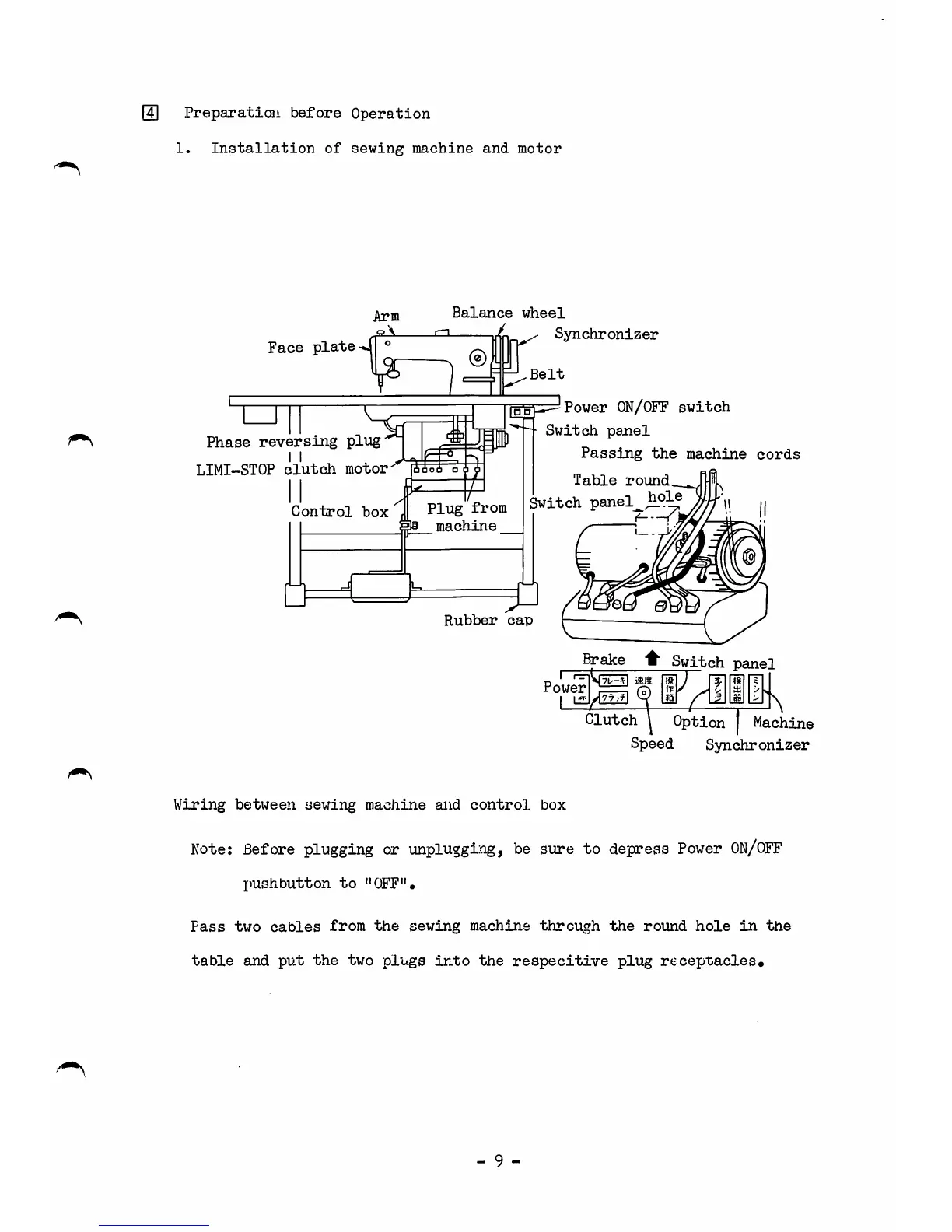

[4] Preparation before Operation
1. Installation of sewing machine and motor
Arm
Face plate
5
Phase reversing plug
I I
LIMI-STOP clutch motor
Control box
/I
•
Balance wheel
-1=] ^ Synchronizer
Belt
eft
E®
Plug from
machine
Rubber cap
•Power on/off switch
Switch panel
Passing the machine cords
Table round.
Switch panel^^^°^®
^ake ^ Switch panel
ID ' iig fl^ j
Power liriq ^
Clutch ^Option |Machine
Speed Synchronizer
Wiring between sewing machine and control box
Note: Before plugging or unplugging, be sure to depress Power ON/OFF
I)Ushbutton to "OFF".
Pass two cables from the sewing machine through the round hole in the
table and put the two plugs into the respecitive plug receptacles.
- 9 -
