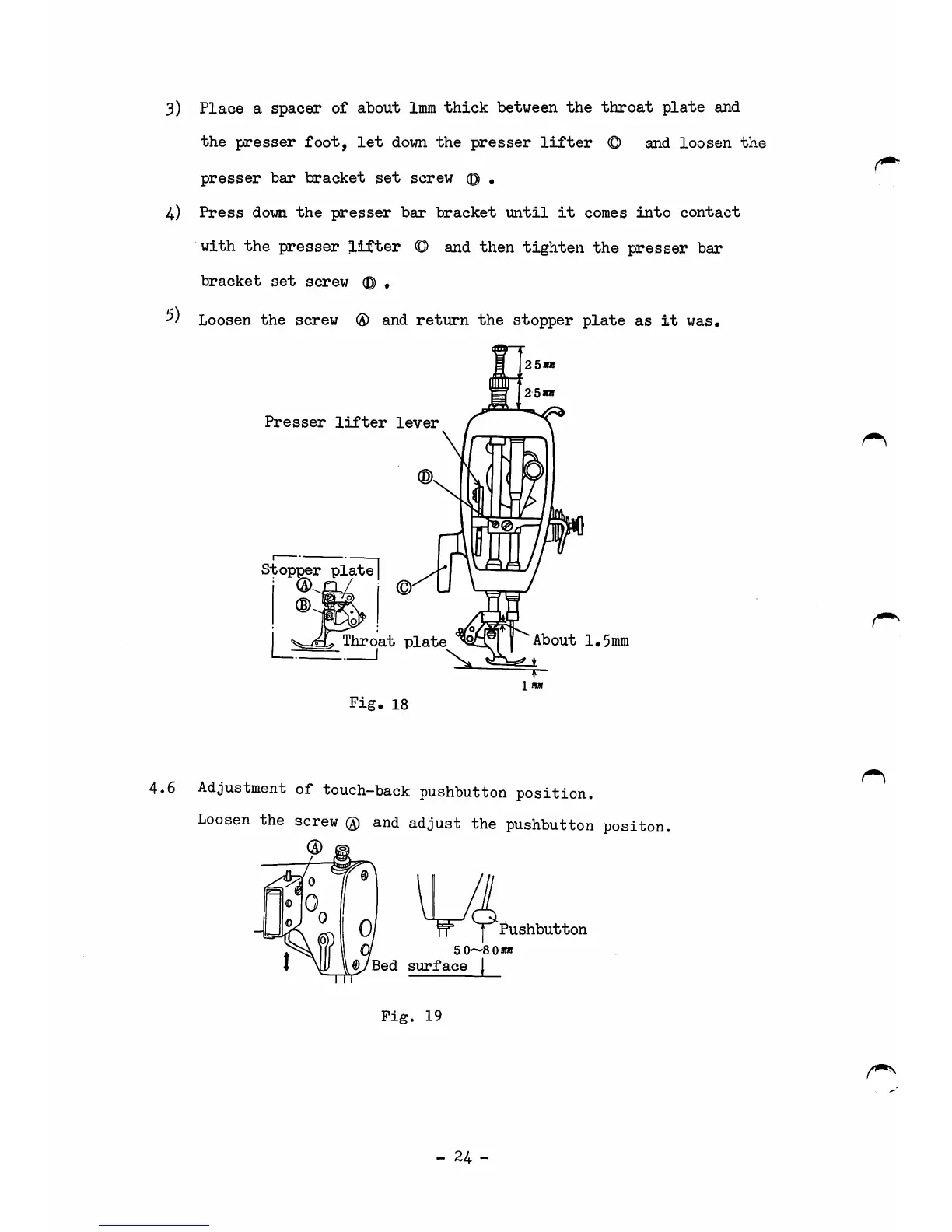

3) Place a spacer of about 1mm thick between the throat plate and
the presser foot, let down the presser lifter © and loosen the
presser bar bracket set screw © •
4.) Press down the presser bar bracket until it comes into contact
with the presser lifter © and then tighten the presser bar
bracket set screw © .
Loosen the screw (3) and return the stopper plate as it was.
Presser lifter lever
Stopper plate
(D-
Throat plate
Fig. 18
2 5»b
2 Bis
About 1.5mm
4.6 Adjustment of touch-back pushbutton position.
Loosen the screw (g) and adjust the pushbutton positon.
0.
0
TTT
Pushbutton
„ 50—SQaa
I^Bed surface |
Fig. 19
