3#1«3 Remove the three cam shaft bracket clamping screws (g).
Now the cam shaft bracket unit can be removed.

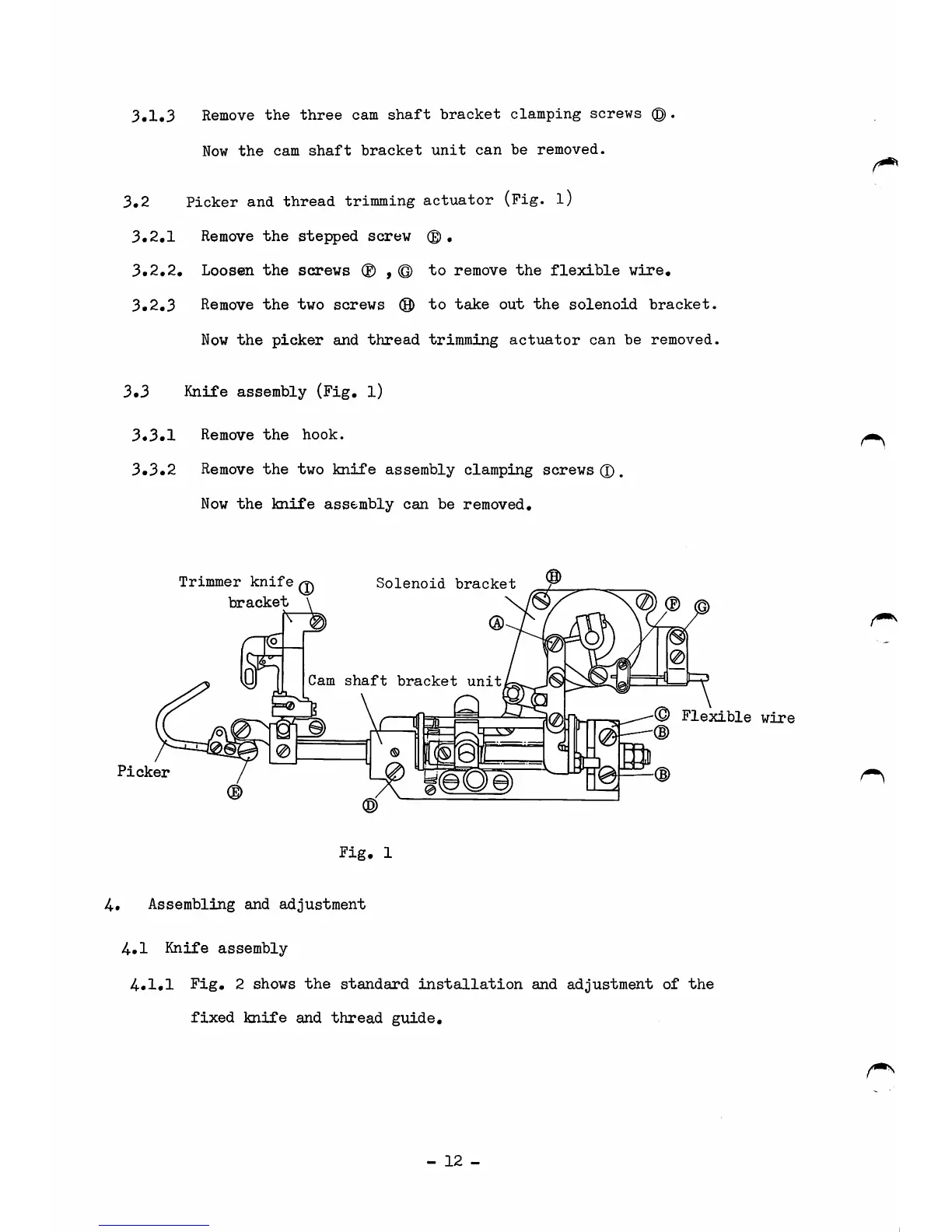

3.2 Picker and thread trimming actuator (Fig. l)
3.2,1 Remove the stepped screw 0•
3.2.2, Loosen the screws ® ,© to remove the flexible wire.
3.2.3 Remove the two screws ® to take out the solenoid bracket.
Now the picker and thread trimming actuator can be removed,
3.3 Knife assembly (Fig, l)
3.3.1 Remove the hook.
3.3.2 Remove the two knife assembly clamping screws Q.
Now the knife assembly can be removed.
Trimmer knife
bracket
D Solenoid bracket
3 ®
Cam shaft bracket unit
Picker
©
Fig, 1
4-. Assembling and adjustment
4.1 Knife assembly
4.1.1 Fig, 2 shows the standard installation and adjustment of the
fixed knife and thread guide.
\U]
0
\
e
b w
C-=,
- 12 -
© Flexible wire
