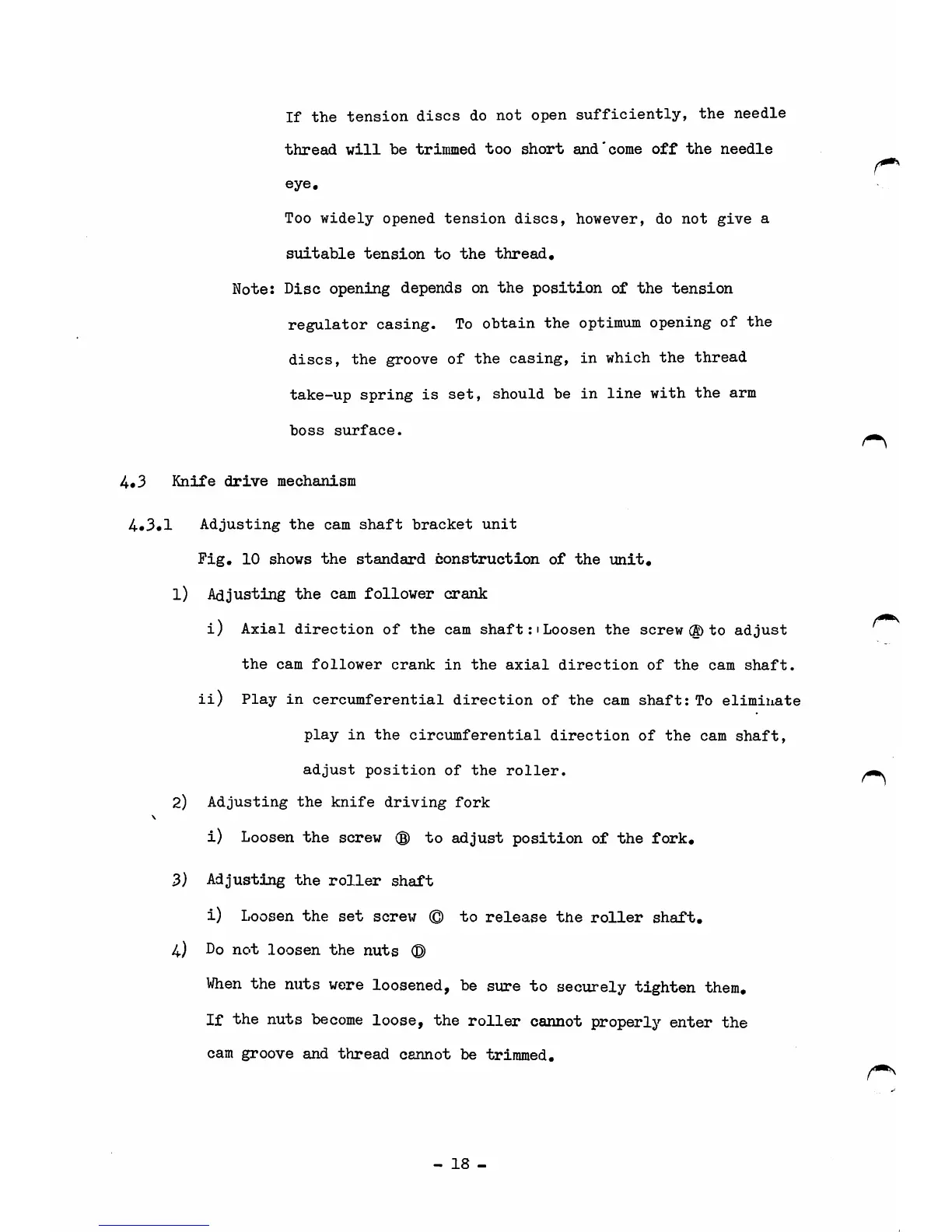

If the tension discs do not open sufficiently, the needle
thread will be trimmed too short and'come off the needle
eye.
Too widely opened tension discs, however, do not give a
suitable tension to the thread.
Note: Disc opening depends on the position of the tension
regulator casing. To obtain the optimum opening of the
discs, the groove of the casing, in which the thread
take-up spring is set, should be in line with the arm
boss surface.
Knife drive mechanism
4-*3*l Adjusting the cam shaft bracket unit
Fig, 10 shows the standard construction of the unit,
1) Adjusting the cam follower crank
i) Axial direction of the cam shaft: iLoosen the screw ® to adjust
the cam follower crank in the axial direction of the cam shaft,
ii) Play in cercumferential direction of the cam shaft: To eliminate
play in the circumferential direction of the cam shaft,
adjust position of the roller.
2) Adjusting the knife driving fork
\
i) Loosen the screw (D to adjust position of the fork,
3) Adjusting the roller shaft
i) Loosen the set screw © to release the roller shaft,
4.) Do not loosen the nuts ©
When the nuts were loosened, be sure to securely tighten them.
If the nuts become loose, the roller cannot properly enter the
cam groove and thread cannot be trimmed.
