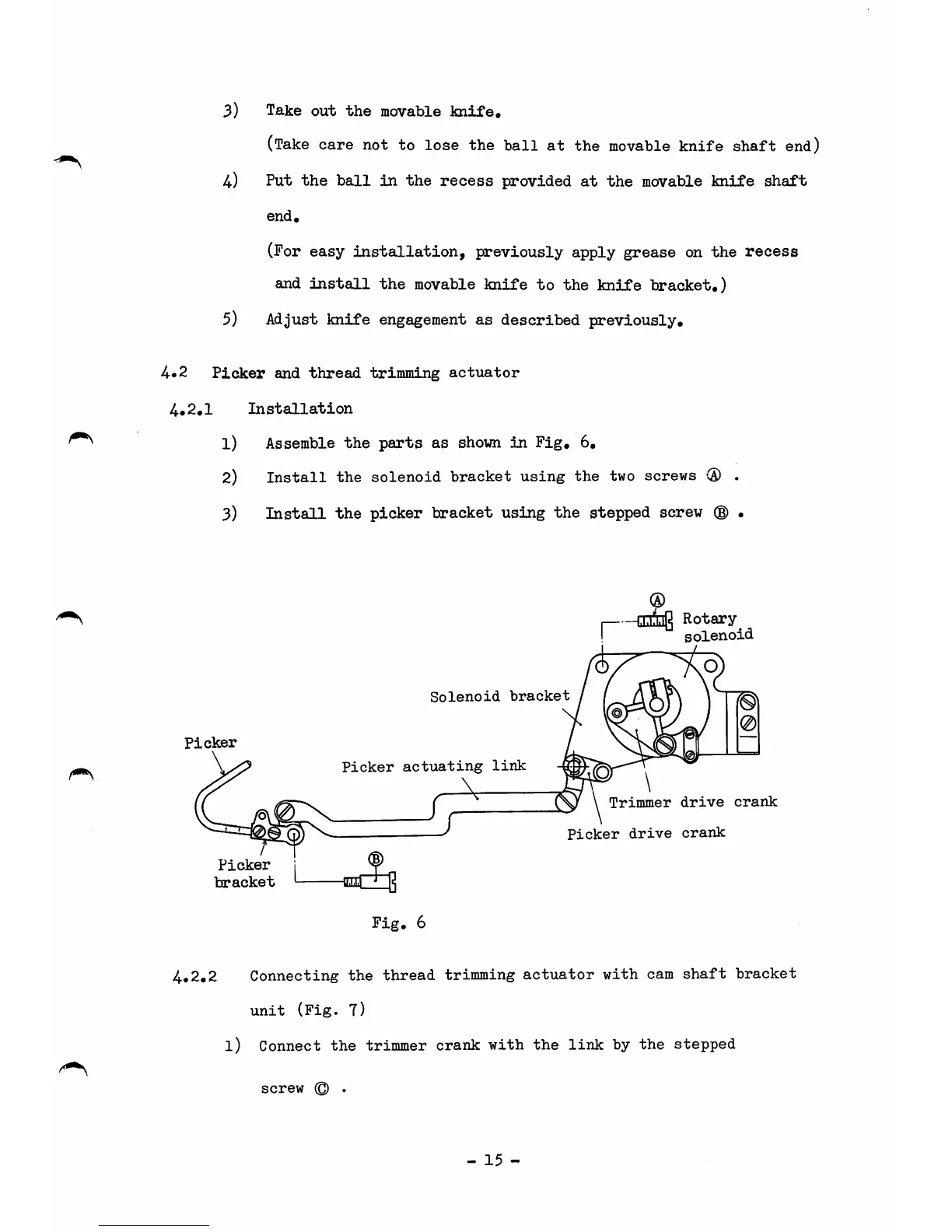

3) Take out the movable knife.
(Take care not to lose the ball at the movable knife shaft end)
4.) Put the ball in the recess provided at the movable knife shaft
end.
(For easy installation, previously apply grease on the recess
and install the movable knife to the knife bracket.)
5) Adjust knife engagement as described previously.
A*2 Picker and thread trimming actuator
4.2.1 Installation
1) Assemble the parts as shown in Fig. 6.
2) Install the solenoid bracket using the two screws (S) .
3) Install the picker bracket using the stepped screw (B) •
Picker
Picker
bracket
Solenoid bracket
Picker actuating link
X
—nAg Rotary^
solenoid
0
Trimmer drive crank
Picker drive crank
Fig. 6
4.2.2 Connecting the thread trimming actuator with cam shaft bracket
unit (Fig. 7)
1) Connect the trimmer crank with the link by the stepped
screw © •
- 15 -
