Mitsubishi LS2-210 User Manual

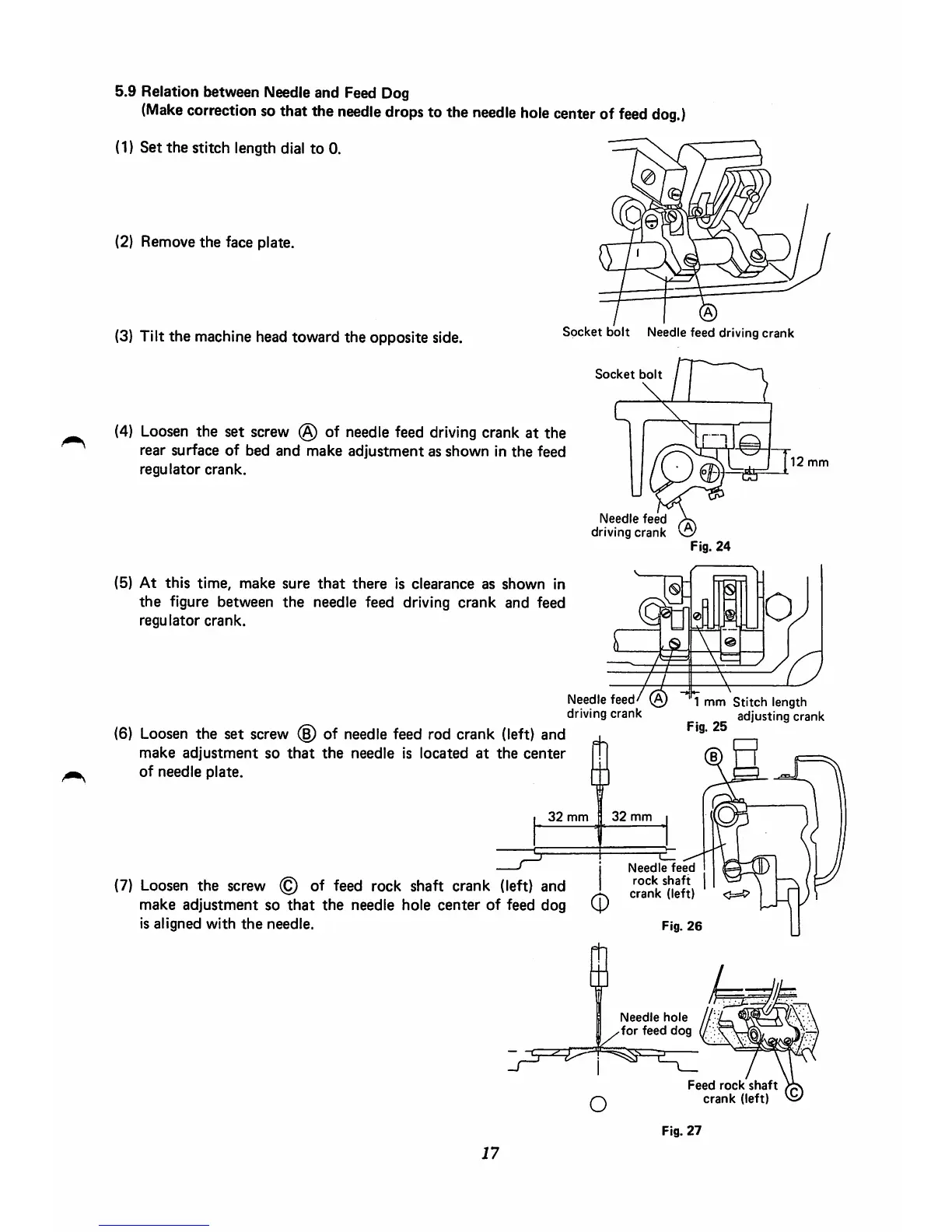

5.9 Relation between Needle and Feed Dog
(Make correction so thatthe needle drops tothe needle hole center of feed dog.)
(1) Set the stitch length dial to 0.
©
(2) Remove the face plate.
(3) Tilt the machine head toward the opposite side.
Socket bolt Needle feed driving crank
Socket bolt
C
(4) Loosen the set screw @ of needle feed driving crank at the
rear surface of bed and make adjustment as shown in the feed
regulator crank.
(5) At this time, make sure that there is clearance as shown in
the figure between the needle feed driving crank and feed
regulator crank.
Needle feed
driving crank
12 mm
Fig. 24
Needle feed/ mm Stitch length
driving crank adjustingcrank
(6) Loosen the set screw (B) of needle feed rod crank (left) and
make adjustment so that the needle is located at the center
of needle plate.
32 mm
1 32 mm
' Needle feed
(7) Loosen the screw © of feed rock shaft crank (left) and I c7anV(ieft)
make adjustment so that the needle hole center of feed dog Cp
is aligned with the needle. Fig. 26
17
Needle hole
for feed dog
Feed rock shaft
crank (left)
Fig. 27
