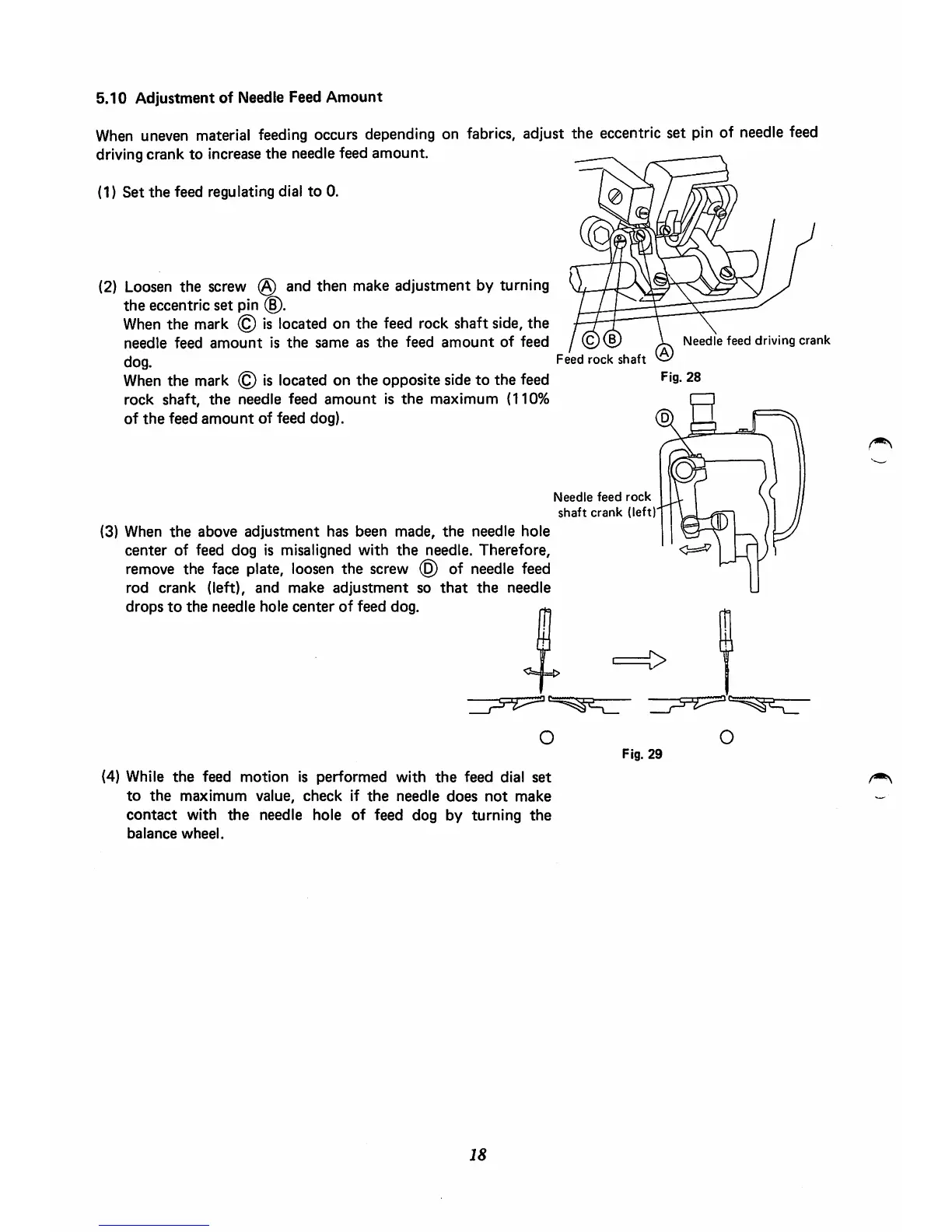

5.10 Adjustment of Needle Feed Amount
When uneven material feeding occurs depending on fabrics, adjust the eccentric set pin of needle feed
driving crank to increase the needle feed amount.
(1) Set the feed regulating dial to 0.
(2) Loosen the screw @ and then make adjustment by turning
the eccentric set pin (B).
When the mark © is located on the feed rock shaft side, the
needle feed amount is the same as the feed amount of feed
dog. Feed rockshaft
When the mark © is located on the opposite side to the feed
rock shaft, the needle feed amount is the maximum {110%
of the feed amount of feed dog).
0
Needle feed rock
shaft crank (left)
(3) When the above adjustment has been made, the needle hole
center of feed dog is misaligned with the needle. Therefore,
remove the face plate, loosen the screw ® of needle feed
rod crank (left), and make adjustment so that the needle
drops to the needle hole center of feed dog.
o
Needle feed driving crank
Fig. 28
o
Fig. 29
(4) While the feed motion is performed with the feed dial set
to the maximum value, check if the needle does not make
contact with the needle hole of feed dog by turning the
balance wheel.
18
