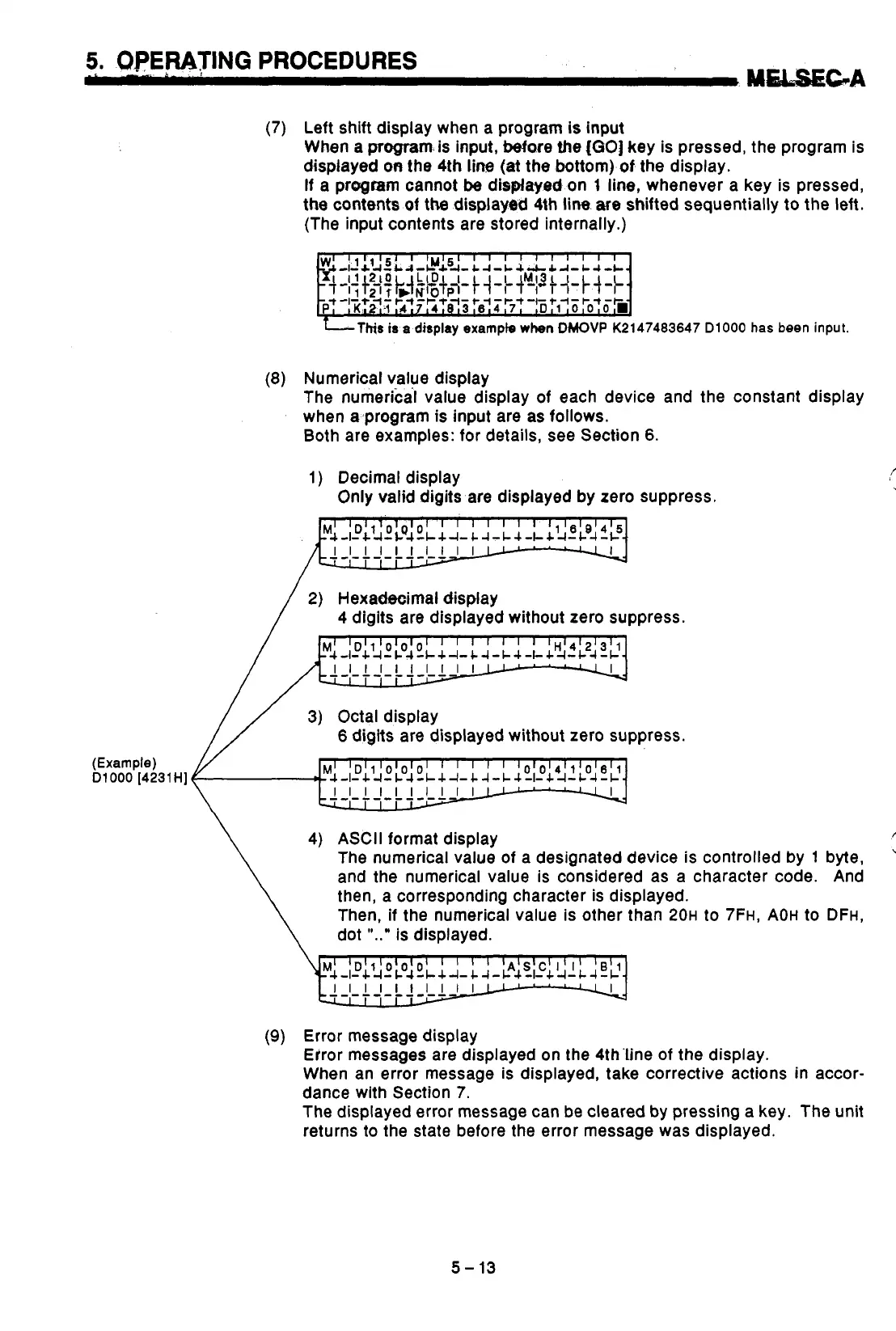

5.
QPERATING
PROCEDURES
h
,.!
MELSEGA
r=
(7)
Left shift display when a program
is
input
When a
program,
is input,
More
the
(QOj
key is pressed, the program is
displayed
OR
the 4th
line
(at
the bottom)
of
the display.
If
a program cannot
be
displayed on
1
line, whenever a key is pressed,
the
contents
of
the
displayed 4th
line.
ase
shifted sequentially
to
the left.
(The input contents are stored internally.)
t
(8)
Numerical value display
The numerical value display
of
each device and the constant display
when adprogram
is
input are as follows.
Both are examples:
for
details, see Section
6.
1)
Decimal display
Only valid digits are displayed by zero suppress.
2)
Hexadecimal display
4
digits are displayed without zero suppress.
3)
Octal display
6
digits
are
displayed without zero suppress.
(Example)
Dl
000
[4231
HI
-MJ-I-c-I-c,-L:-I-::-L:-,-+~-c-l-c-
0'1
'0'0'0
0'014111016'1
I~'.~I
*
4)
ASCII format display
The numerical value of a designated device is controlled by
1
byte,
and the numerical value is considered as a character code. And
then, a corresponding character
is
displayed.
Then,
if
the numerical value is other than 20H
to
7FH, AOH
to
DFH,
dot
I'.."
is
displayed.
(9)
Error
message display
Eiror
messages are displayed
on
the 4th'Line of the display.
When an error message is displayed, take corrective actions in accor-
dance with Section
7.
The displayed error message can be cleared by pressing a key. The unit
returns
to
the state before the error message was displayed.
i
1
5-
13
