5 - 19 5 - 19
MELSEC-Q/QnA
5 SEQUENCE INSTRUCTIONS

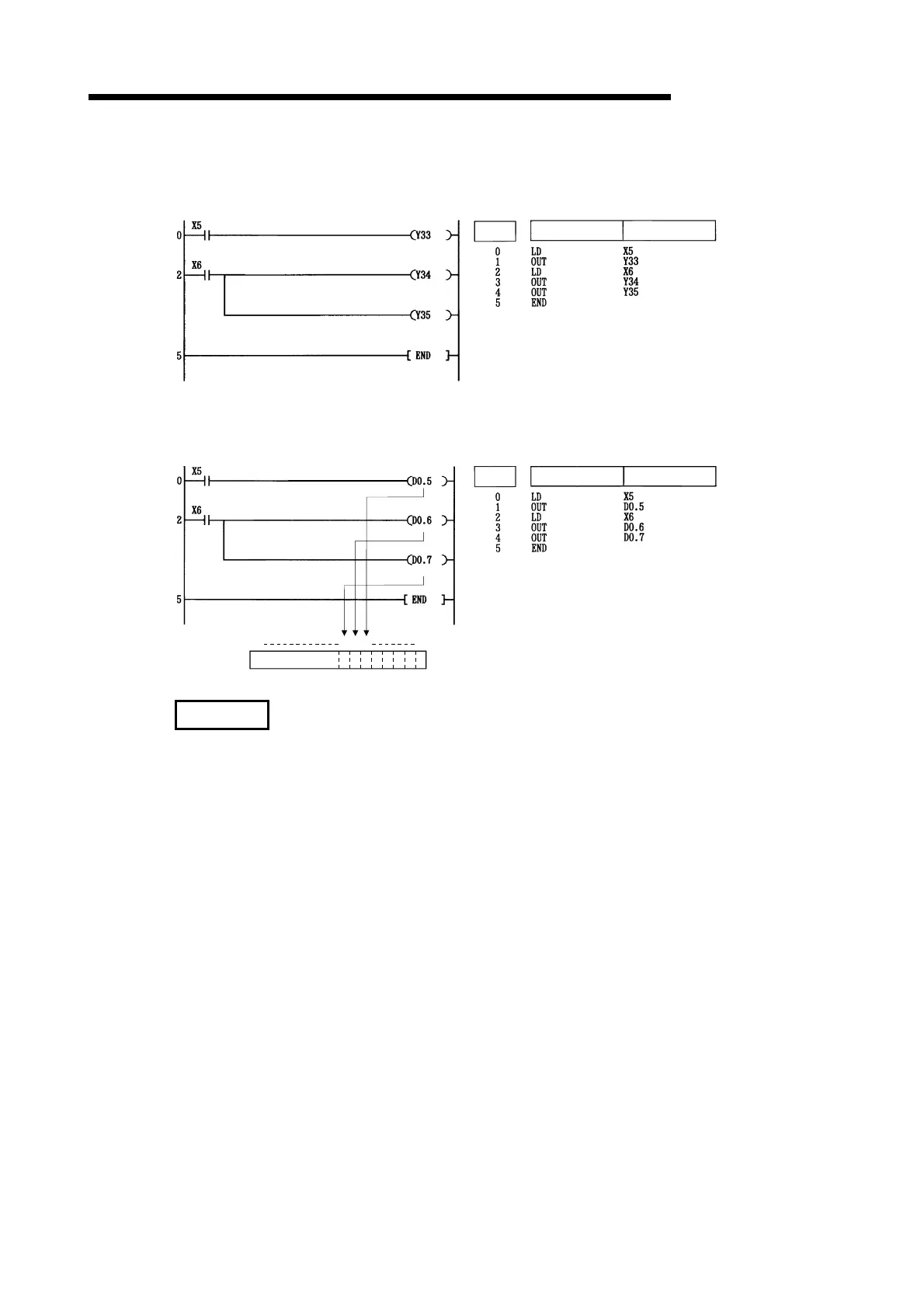

[Program Example]
(1) When bit device is in use
[Ladder Mode] [List Mode]
Steps
Instruction Device
(2) When bit designation has been made for word device
[Ladder Mode] [List Mode]
b0
D0
b5b15 b6b7
Device
Instruction
Steps
REMARK
The number of basic steps for OUT instructions is as follows:
• When using internal device or file register (R) : 1
• When using direct access output (DY) : 2
• When using any other device : 3
(Including serial number access file register)
