Mitsubishi MELSEC QCPU User Manual

6 - 108 6 - 108
MELSEC-Q/QnA
6 BASIC INSTRUCTIONS
[Operation Errors]
(1) There are no operation errors associated with the DI and EI instructions.
(2) There are no operation errors associated with the IMASK instruction.
[Program Example]

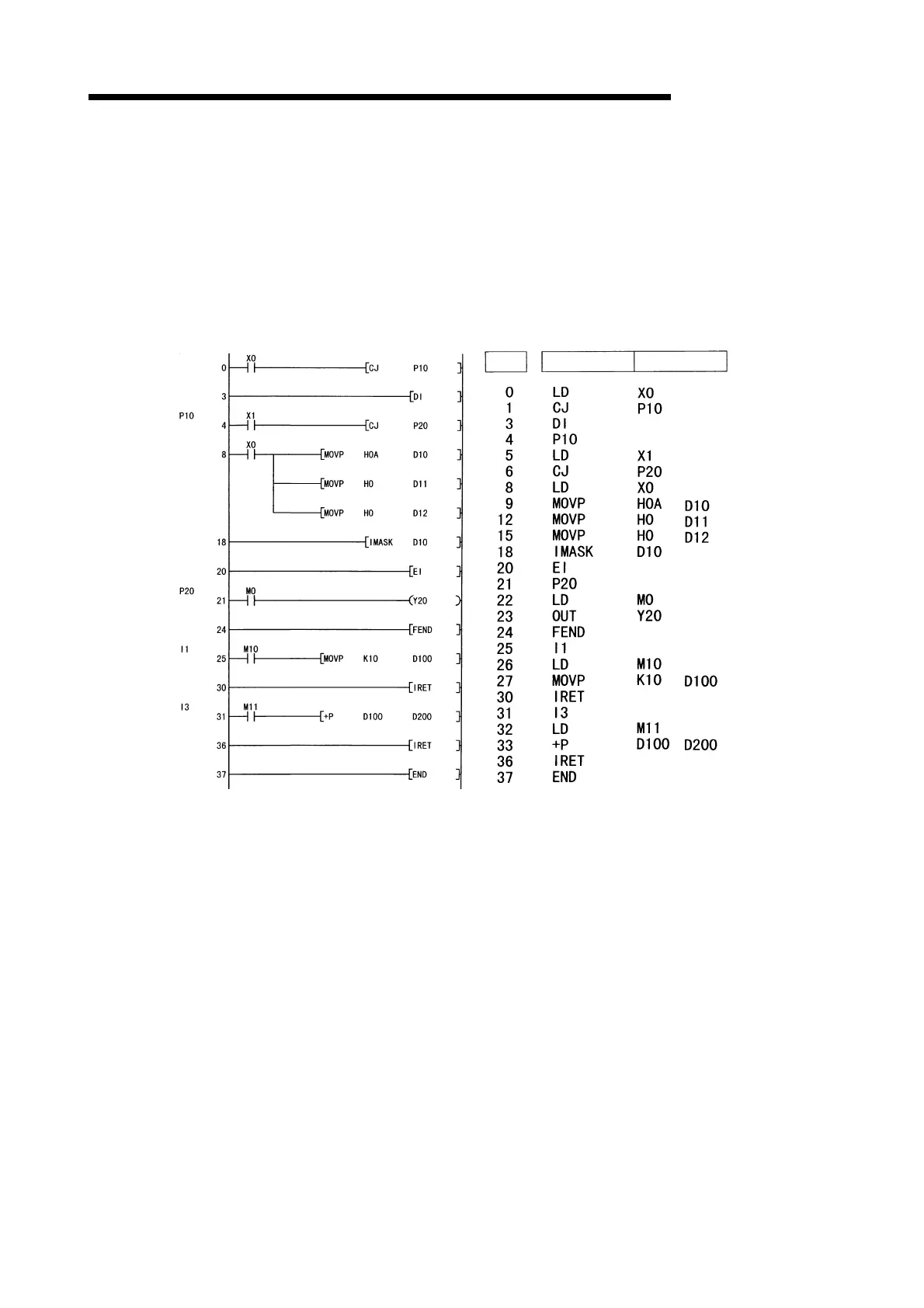

(1) The following program creates an execution enabled state for the interrupt program marked by
the interrupt pointer number when X0 is ON.
[Ladder Mode] [List Mode]
Steps Instruction
Device
