5. CIRCUIT BREAKER SELECTION
5.1 Circuit Breaker Selection Table
Following Table shows various characteristics of each breaker to consider selection and coordination with
upstream devices or loads.
Characteristics
Standard : Standard characteristics MCCBs
Low-inst : Low-inst. MCCBs for Discrimination
When a power fuse (PF) is used as a high-voltage protector, it must be coordinated
with an MCCBs on the secondary side.
Generator: Generator-Protection MCCBs
These MCCBs have long-time-delay operation shorter than standard type and low
instantaneous operation.
Mag-Only : Magnetic trip only MCCBs
These are standard MCCBs minus the thermal tripping device. They have no time-
delay tripping characteristic, providing protection only against large-magnitude short-
circuit faults.

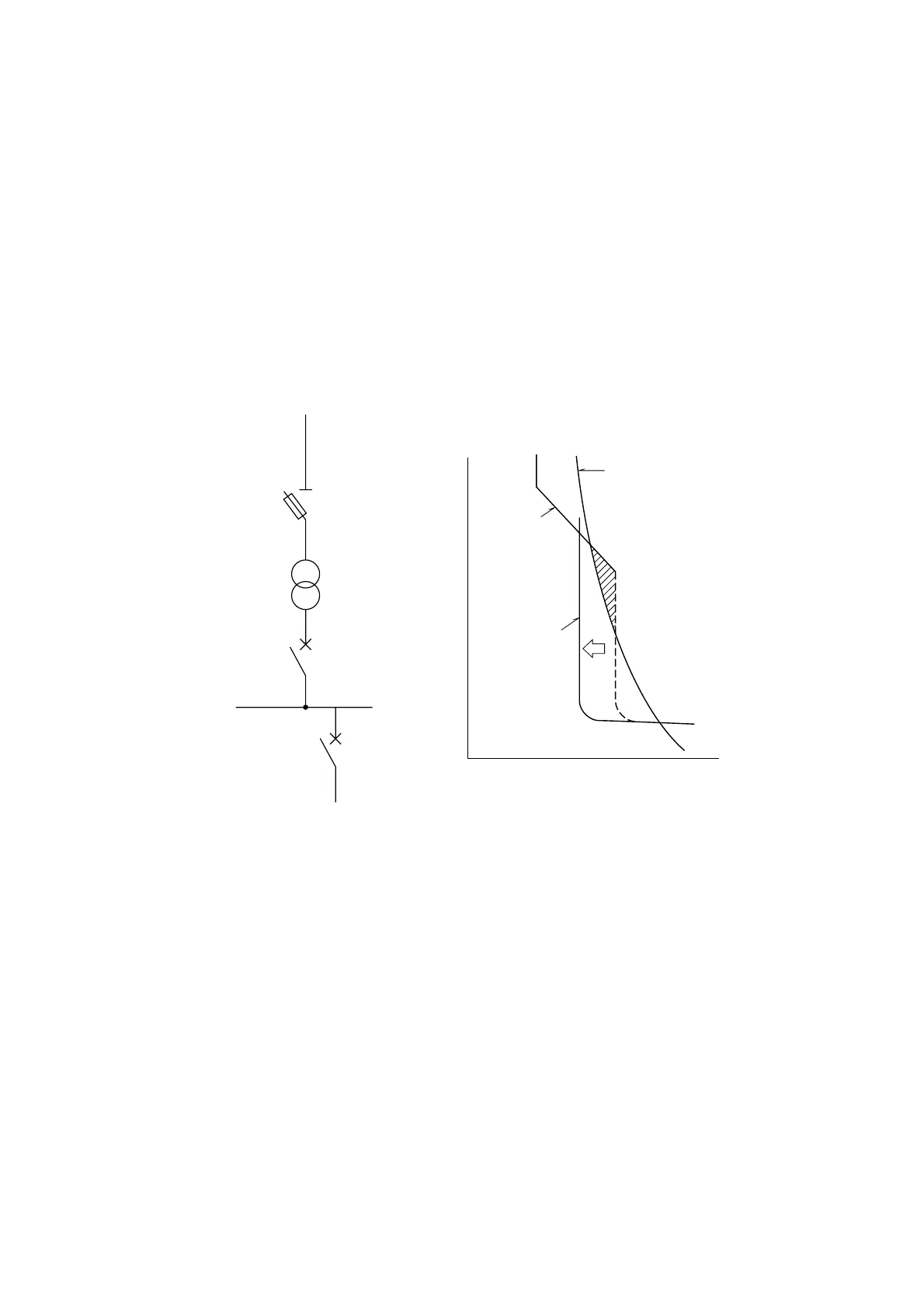

PF short-time tolerancs
capacity
Pf.
Tr.
MCCB1
MCCB2
Time
MCCB
operating
characteristic
curve
Low-inst.MCCBs
Current
