2 - 4 2 - 4
MELSEC-Q
2 SYSTEM CONFIGURATION
(4) Software packages supported
Correspondence between systems which use QJ71DN91s and software
packages are as shown below.
The GX Developer is necessary when using a QJ71DN91.
Software Version
GX Developer
GX Configurator-DN
If installed in the Q00J/Q00/ Q01CPU Version 7 or later Version 1.10L or later
If installed in the Q02/Q02H/Q06H/
Q12H/Q25HCPU
Version 4 or later Version 1.00A or later
If installed in the Q12PH/Q25PHCPU Version 7.10L or later Version 1.13P or later
If installed in a multiple PLC system Version 6 or later Version 1.10B or later
(5) Precautions on wiring
In order to avoid the effects of noise, the DeviceNet communication cable, power
cable and signal lines for the I/O module should be installed in such a way that
they are sufficiently away from each other.
(6) Remote operation is not allowed from other DeviceNet node
Each DeviceNet node on DeviceNet cannot read/write/monitor the sequence
program or data of the PLC CPU where the QJ71DN91 is installed.

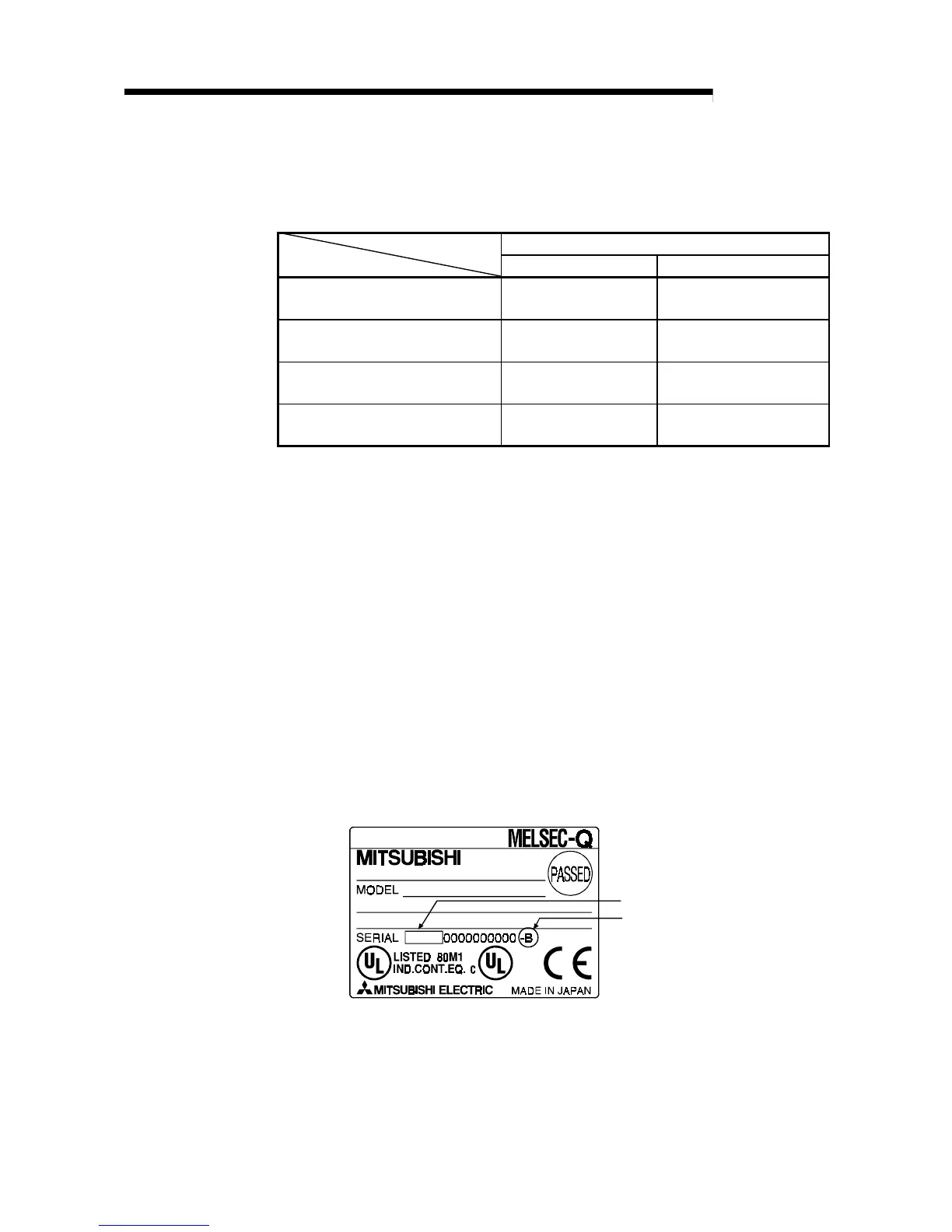

2.3 How to Check the Function Version, Serial No. and Software Version
This section describes how to check the function version and serial No. of the
QJ71DN91 and the GX Configurator-DN software version.
(1) How to check the function version and serial No. of the QJ71DN91
(a) To check the version using the "SERIAL column of the rating plate" located
on the side of the module
Function version
03052
Serial No. (first 5 digits)
(b) To check the version using the GX Developer
See Section 9.3 of this manual.
To Next Page
