8 INSPECTION AND MAINTENANCE

Mitsubishi Diesel Engine S12R OPERATION & MAINTENANCE MANUAL

129

Pub. No. 291Y1-40720 Revision: 5

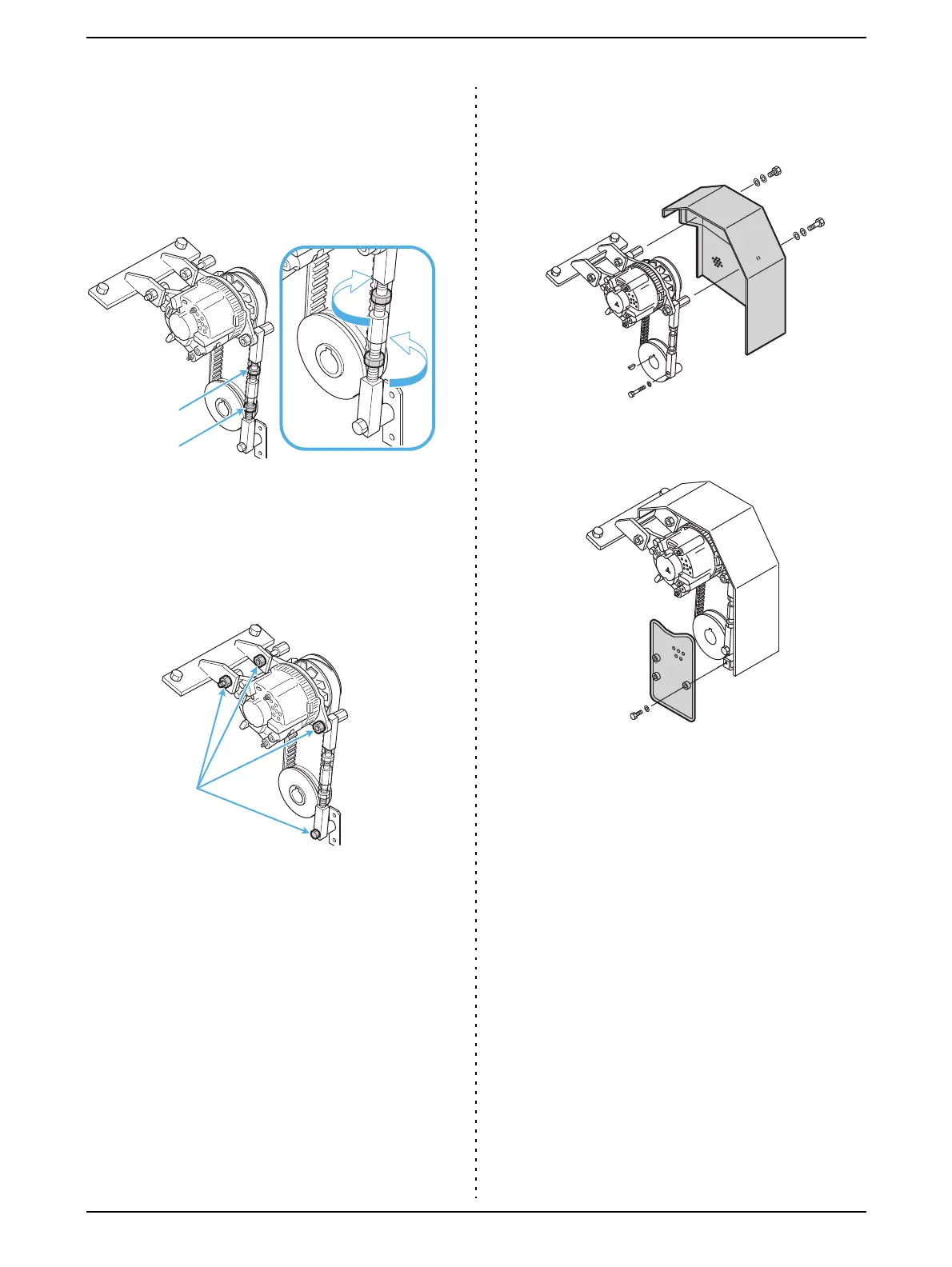

5 After adjusting deflection, tighten

the lock nut of the adjusting rod.

• The upper lock nut (2) has a right-hand

thread.

• The lower lock nut (3) has a left-hand thread.

• Tool: Wrench

Fig. 8-9 Belt Tension - Adjust (Lock Nut)

6 Tighten the retaining bolts (1) of the

alternator and the adjusting rod

which were loosened in Step 2.

• Tool: Wrench

Fig. 8-10 Belt Tension - Adjust (Retaining Bolt)

7 Install the belt cover of the

alternator which was removed in

Step 1.

Fig. 8-11 Belt Cover - Install

8 Install the front cover.

Fig. 8-12 Front Cover - Install

(3)

(2)

(1)
