FUEL SYSTEM
8-2

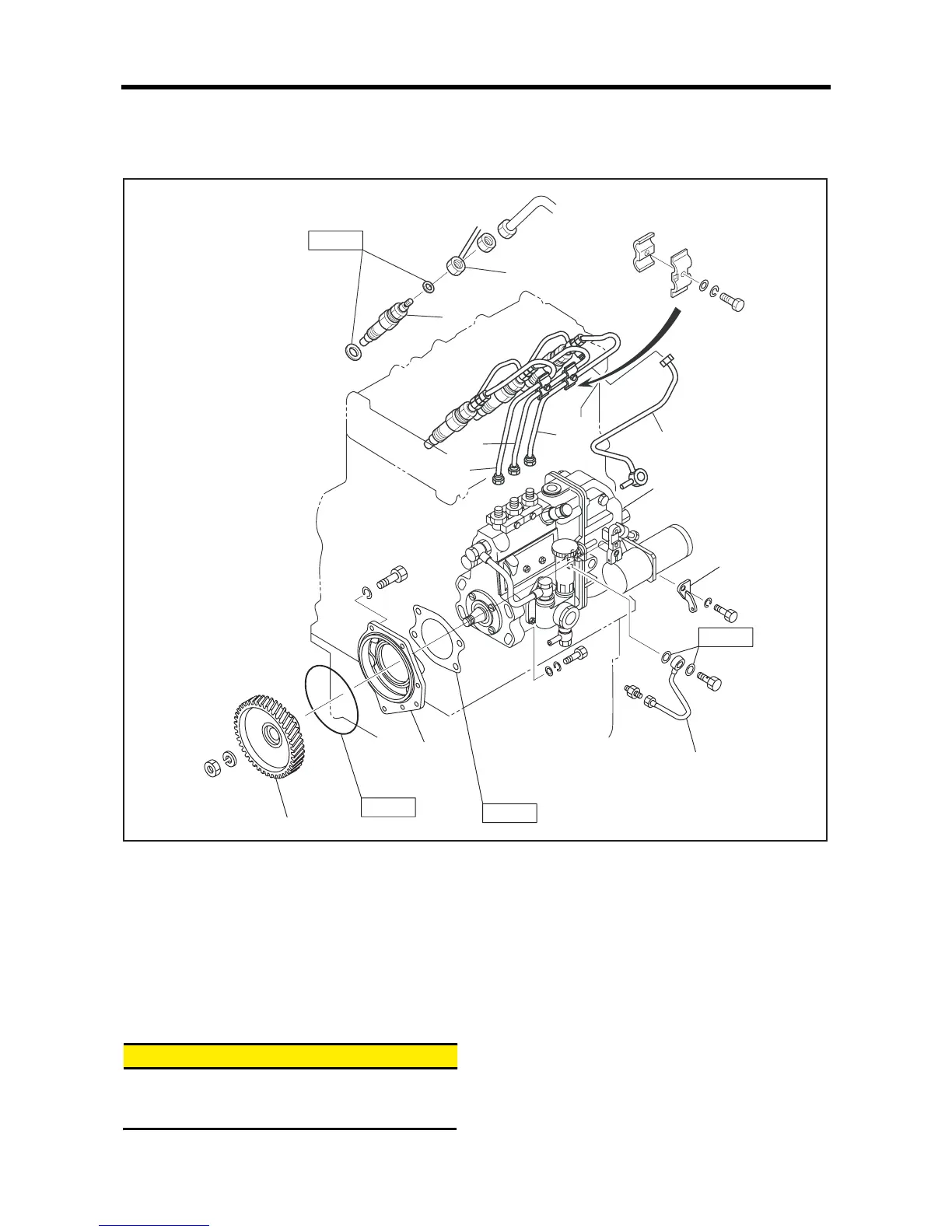

1. Removing fuel system
Removing fuel system
Removing sequence
&$87,21
To prevent the fuel system from the contaminants,
cover the openings such as injection pump openings
nozzle openings, injection pipes.
1 Fuel return pipe 7 Oil pipe
2 No.1 fuel injection pipe 8 Pump bracket
3 No.2 fuel injection pipe 9 Injection pump gear
4 No.3 fuel injection pipe 10 Injection pump flange
5 fuel leak-off pipe 11 Fuel injection pump
6 Fuel injection nozzle
6
5
1
4
3
2
9
10
7
8
11
Replace
Replace
Replace
Replace
