136
-
LO
MED
HI
AUTO
HI POWER
ECONO
ON OFF
AM PM

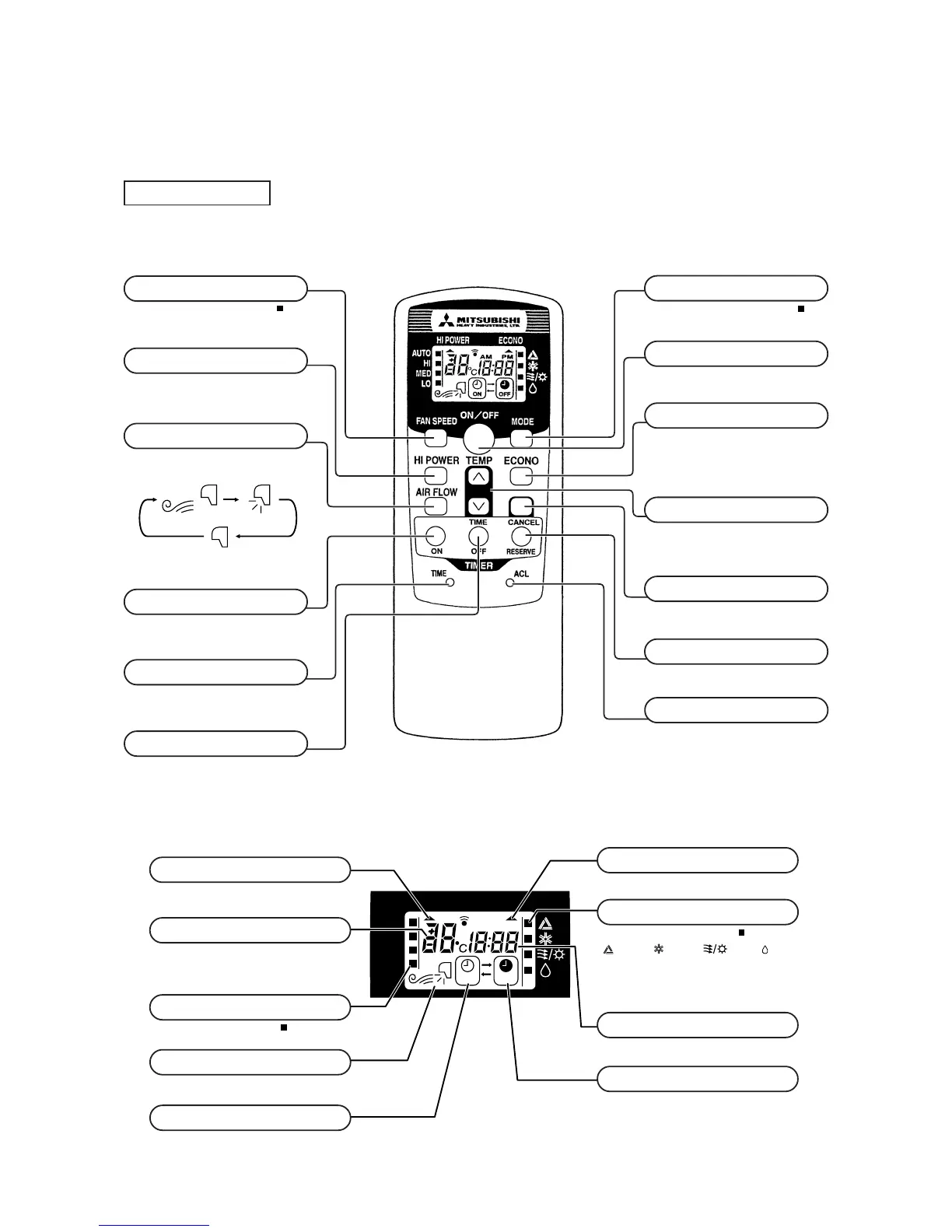

FAN SPEED button
Each time the button is pushed, the indi-
cator is switched over in turn.
• The above illustration shows all controls, but in practice
only the relevant parts are shown.
OPERATION MODE select button
Each time the button is pushed, the indi-
cator is switched over in turn.
AIR FLOW button
This button changes the flap mode. When
pressed, this button changes the mode in the
following order:
ON/OFF button
Press for starting operation, press again for
stopping.
HI POWER button
This button changes the HIGH POWER
mode.
ECONO button
This button changes the ECONOMY mode.
RESET switch
Switch for resetting microcomputer.
ON TIMER button
This button selects ON TIMER operation.
Time switch
This switch for setting the time.
OFF TIMER button
This button selects OFF TIMER operation.
TEMPERATURE button
This button sets the room temperature.
(This button changes the present time and
TIMER time.)
CANCEL button
This button cancels the ON timer and OFF
timer.
RESERVE button
This button sets the present time and
TIMER time.
S Indication section
OPERATION MODE indicator
Indicates selected operation with lamp.
[
(Auto) • (Cool) • (Fan) • (Dry)]
TEMPERATURE indicator
Indicates set temperature.
(Does not indicate temperature when operation
mode is on AUTO)
FAN SPEED indicator
Indicates set air flow rate with lamp.
AIR FLOW indicator
Shows selected flap mode.
HIGH POWER MODE indicator
Indicates during high power mode operation.
ECONOMY MODE indicator
Indicates during economy mode operation.
ON TIMER indicator
Indicates during ON TIMER operation.
TIME indicator
Indicates present time or timer setting time.
OFF TIMER indicator
Indicates OFF TIMER operation.
Models All models
Remote control
S Operation section
(Air scroll) (Swing)
2.1.4
OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER
(1) Operation control function by remote control switch
(Flap stopped)
