SSDC-ECX-H/J Hardware Manual
400-820-9661
3.3 Analog Inputs
SSDC-ECX-J series drive has one analog signal inputs which can accept signal range of 0-5V,
0-10V,±5V and ±10V.
Use the Stepper Suite to configure the input range, offset, deadband and noisy filter frequency.
SSDC-ECX-J series provides a +5V/100mA limit power supply that can be used to power external
devices such as potentiometer. It is not the most accurate supply for reference, for more precise
readings use an external supply that can provide the desired accuracy.
Ω
+5V OUT
AIN
GND
1 - 10k
pot
SSDC

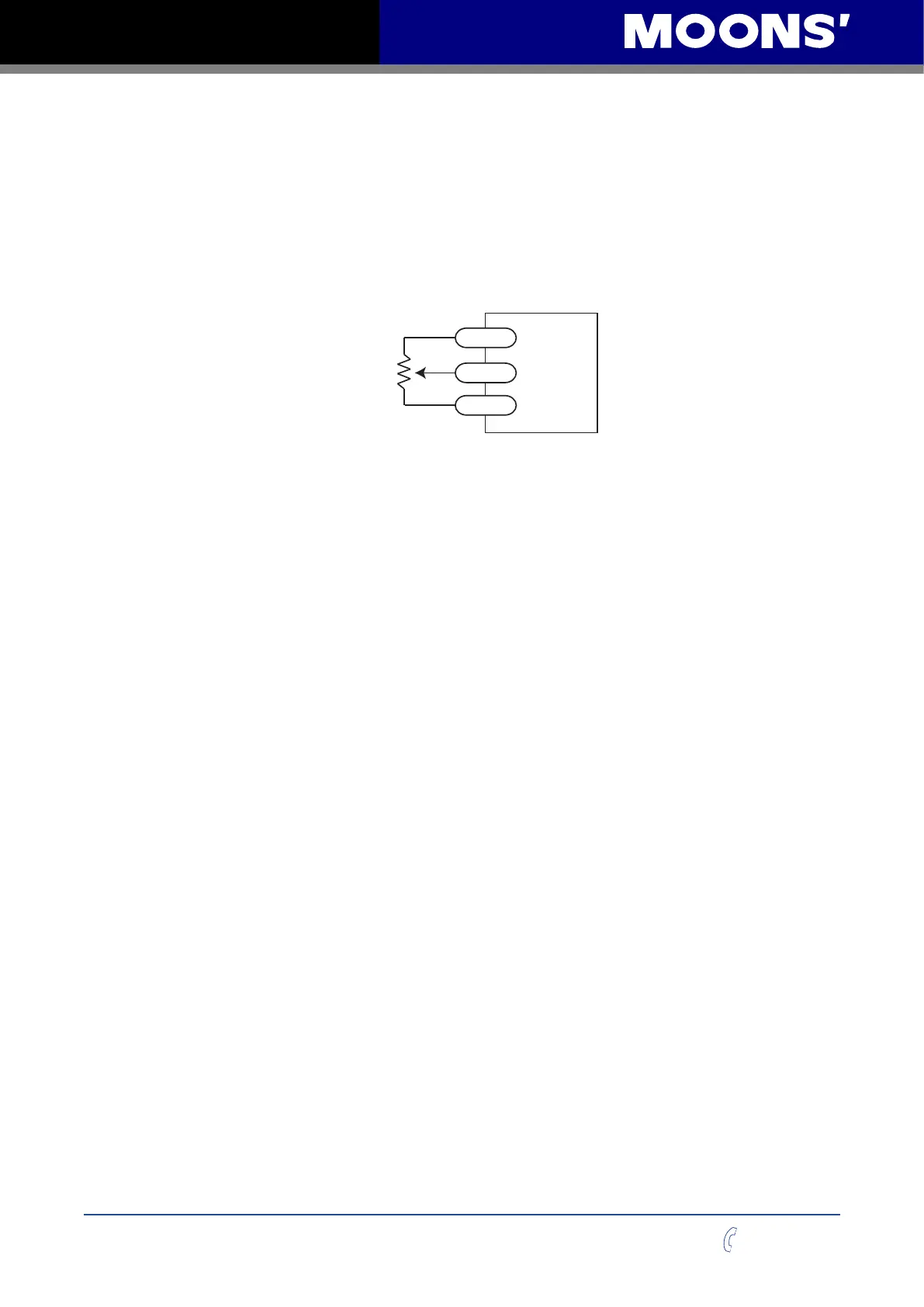

Connecting a potentiometer to an analog input
