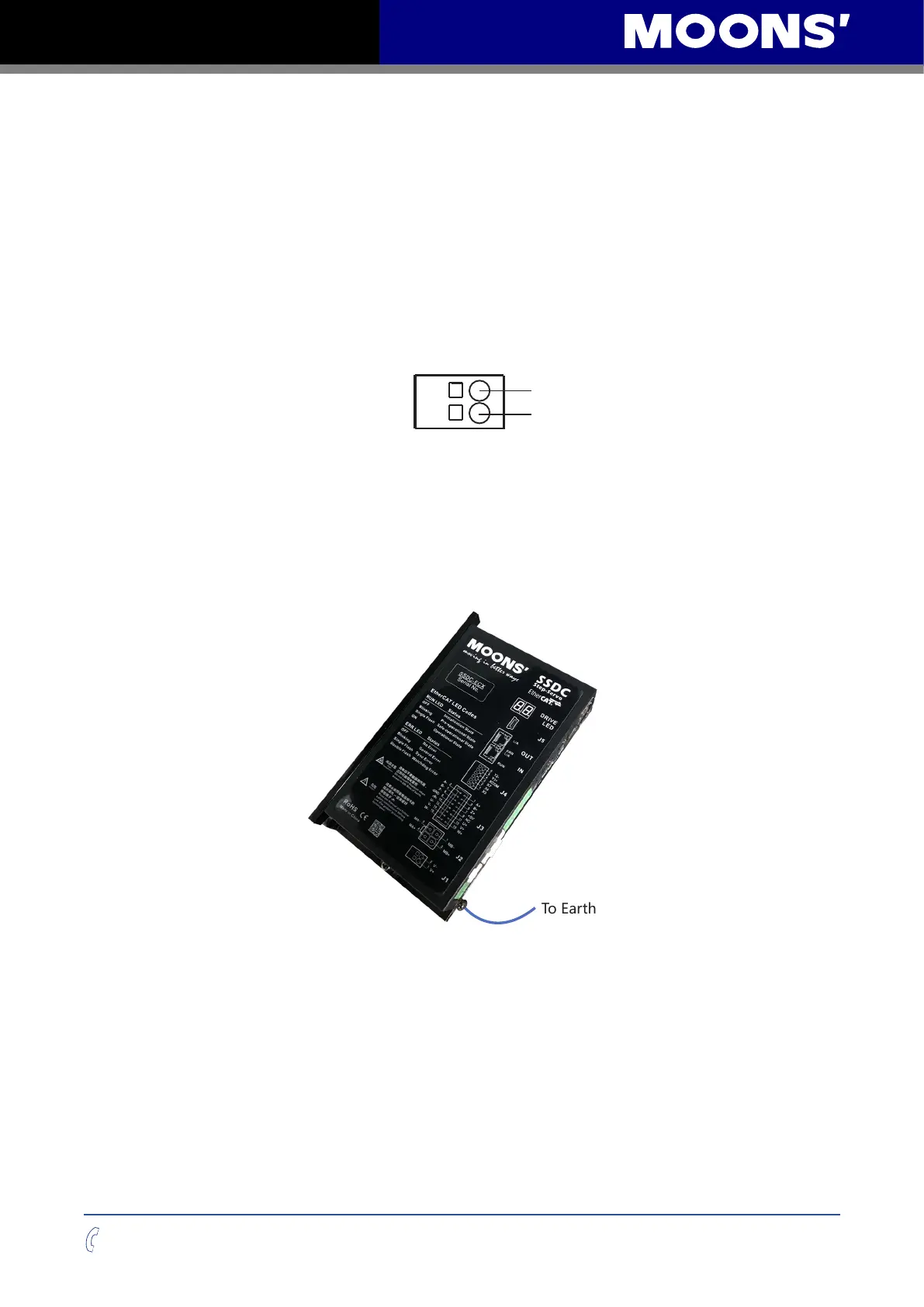

2.3 Connecting the Power Supply
The SSDC series step-servo drive and motor are shipped with a power cable, 2 meters long.
Connect the red wire to the positive of the power supply. Connect the black wire to the negative of
the power supply. Plug the cable into the power connector of the drive.
(NOTE: Be careful not to reverse the wires. Reversing the connection may open the
internal fuse on the drive and void the warranty.)
SSDC06: 24 – 70VDC
SSDC10: 24 – 70VDC
Power Connector
Wire Range
：
0.2mm
2
– 1.5mm
2
(24 – 16AWG)
Recommended stripping length
：
10mm
Connect the chassis to the earth ground through the grounding screws.
To Earth Ground
The section entitled
“
Choosing a Power Supply
”
will help you to select a right power supply.
V+
-
1
V
-
2
To Next Page
