2.1 Installing Software

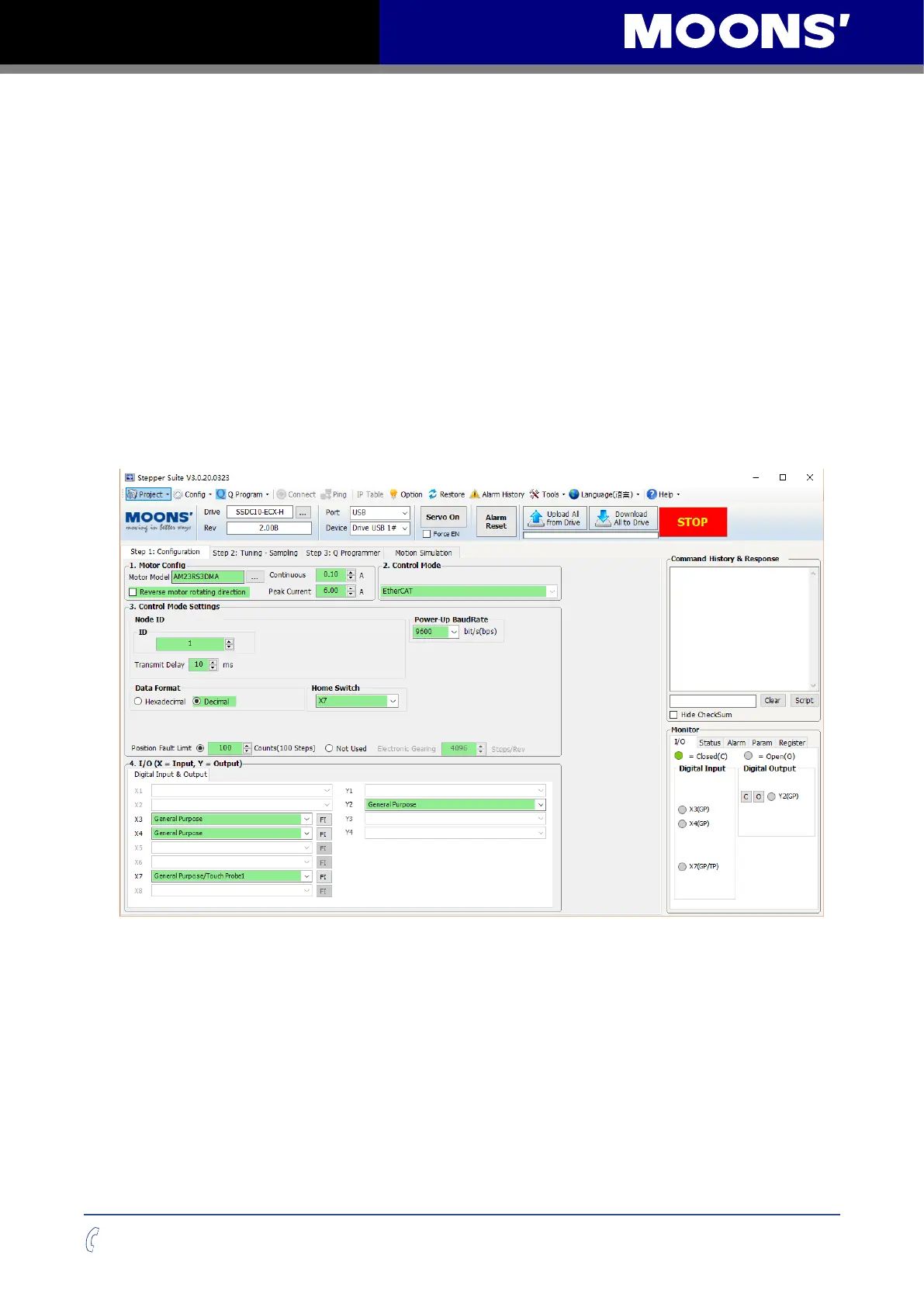

Stepper Suite is the PC based software application used to configure, and perform servo
tuning, drive testing and evaluation of the step-servo products. System servo control gains, drive
functionality and I/O configuration are set with Stepper Suite. It also contains an oscilloscope
function to help set the servo control gains.
• Download the Stepper Suite from the MOONS
’
website and install it.
• Launch the software by clicking Start-----Programs ----MOONS
’
----Stepper Suite
• Connect the drive to PC by USB Mini-B cable. Please see the section below entitled
“
Choosing the Right USB Port
”
.
• Connect the drive to the Power Supply.
• Connect the motor to the drive.
• Power up the drive.
• The software will recognize your drive, display the model and firmware version and be ready
for action.
