Section 4 - Trolling Motor Operation
Page 18 90-8M0082949 eng JULY 2013

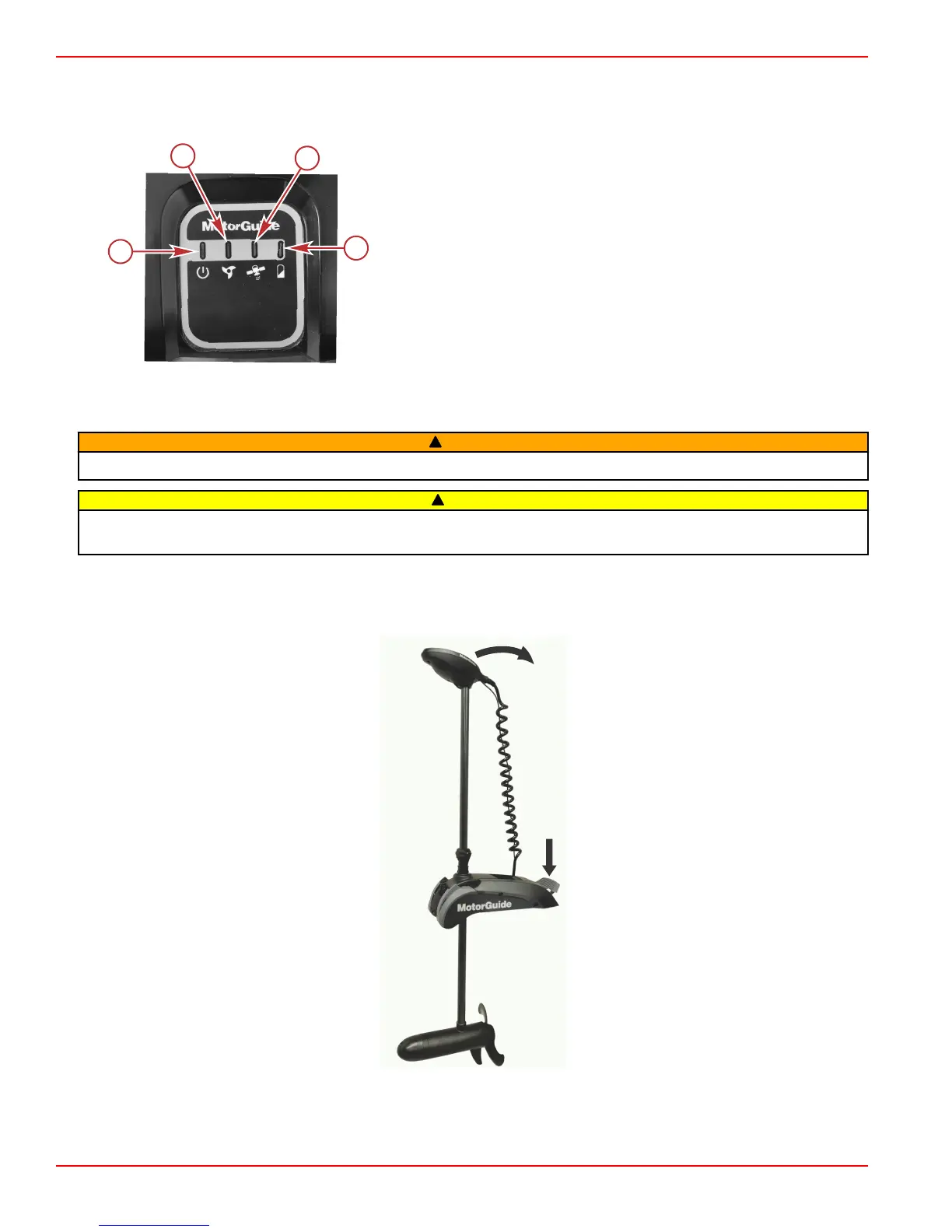

Status Indicator Light Identification
This trolling motor is equipped with a multifunction status indicator light panel. It can display the status of the motor, propeller,
battery charge, and GPS status for quick and easy reference during operation.
a - Power on/off indicator light
b - Propeller on/off indicator light
c - GPS navigation indicator light
d - Battery status light
Stowing and Deploying the Trolling Motor
!
WARNING
Rotating propellers can cause serious injury or death. Never start or operate the motor out of water.
!
CAUTION
Moving parts, such as hinges and pivot points, can cause serious injury. Keep away from moving parts when stowing,
deploying, or tilting the motor.
Stowing the Trolling Motor
1. Press down on the stow/deploy release lever with one hand or one foot. Firmly grasp the column with one hand and tilt the
trolling motor towards the mount.
