MotorGuide Xi5 User Manual

Section 5 - Maintenance and Storage
Page 28 90-8M0082949 eng JULY 2013

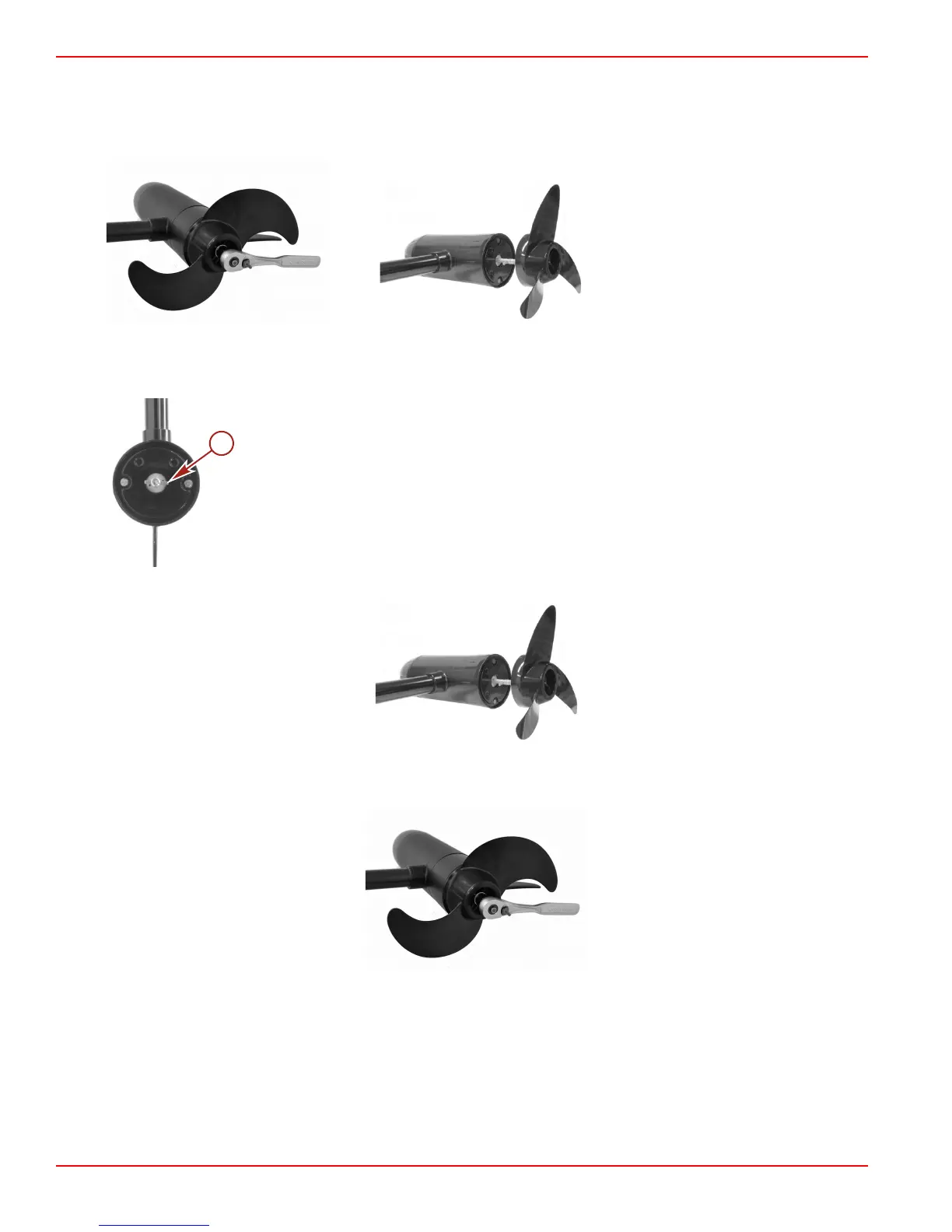

IMPORTANT: Remove the propeller nut with a wrench or a ratchet and socket. Using another tool may damage the
propeller nut or shaft. If the propeller cannot be removed easily, use a rubber mallet to lightly tap the back side of the
opposite blade. If the propeller cannot be removed, have the propeller removed by an authorized dealer.
NOTE: If the propeller pin is bent, replace the propeller pin.
53442
44663
Installing the Propeller
1. Rotate the motor shaft to insert the propeller pin horizontally.
a - Propeller pin
2. Install the propeller onto the motor shaft by engaging the propeller onto the propeller pin.
44663
3. Install the washer (or anode, for saltwater models) onto the propeller shaft then install the propeller nut. Tighten the
propeller nut securely.
53442
4. Tighten the propeller nut another ¼ turn.
a
44664

MotorGuide Xi5 Specifications

General

Pinpoint GPS	Yes
Digital Guardian	Yes
GPS Anchor	Yes
Spot-Lock	Yes
Steering	Electric
GPS	Yes
Remote Control	Yes
Mount Style	Bow Mount
Voltage	24V or 36V
Thrust	80 lbs or 105 lbs
