MotorGuide Xi5 User Manual

Section 6 - Owner Service Assistance
Page 32 90-8M0082949 eng JULY 2013

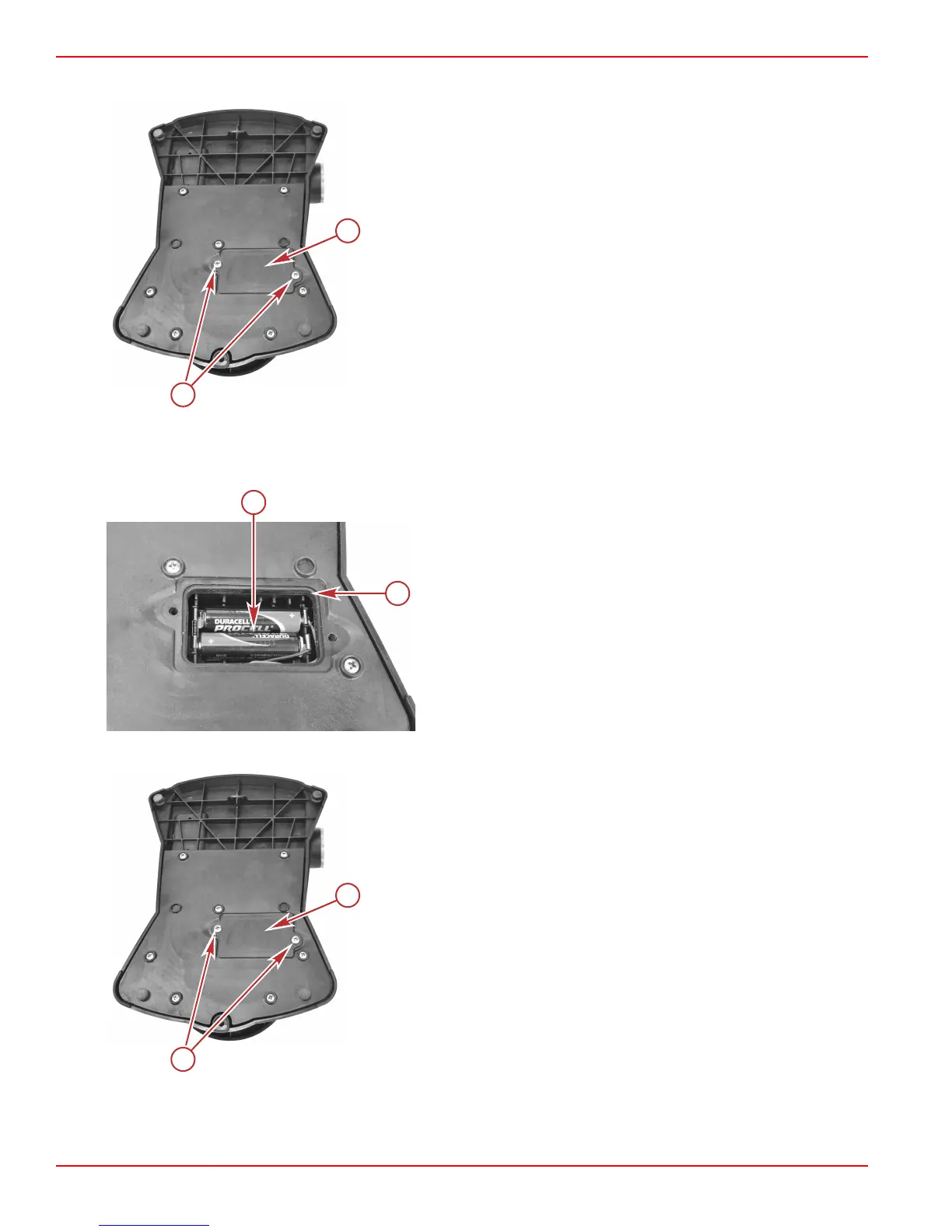

1. Remove the two screws securing the battery cover plate. Remove the battery cover plate.
a - Battery cover plate
b - Screws
2. Remove the batteries from the battery holder.
3. Install the new batteries in the proper orientation for correct polarity.
4. Ensure the rubber seal is positioned correctly around the battery cover plate.
a - AA alkaline batteries
b - Rubber seal
5. Replace the battery cover plate and install the two screws. Tighten the screws securely.
a - Battery cover plate
b - Screws
Handheld Remote Battery Replacement
Battery required: One AAA alkaline battery
a
b
a
51760
51761
a
b
a
b
a
51760

MotorGuide Xi5 Specifications

General

Pinpoint GPS	Yes
Digital Guardian	Yes
GPS Anchor	Yes
Spot-Lock	Yes
Steering	Electric
GPS	Yes
Remote Control	Yes
Mount Style	Bow Mount
Voltage	24V or 36V
Thrust	80 lbs or 105 lbs
