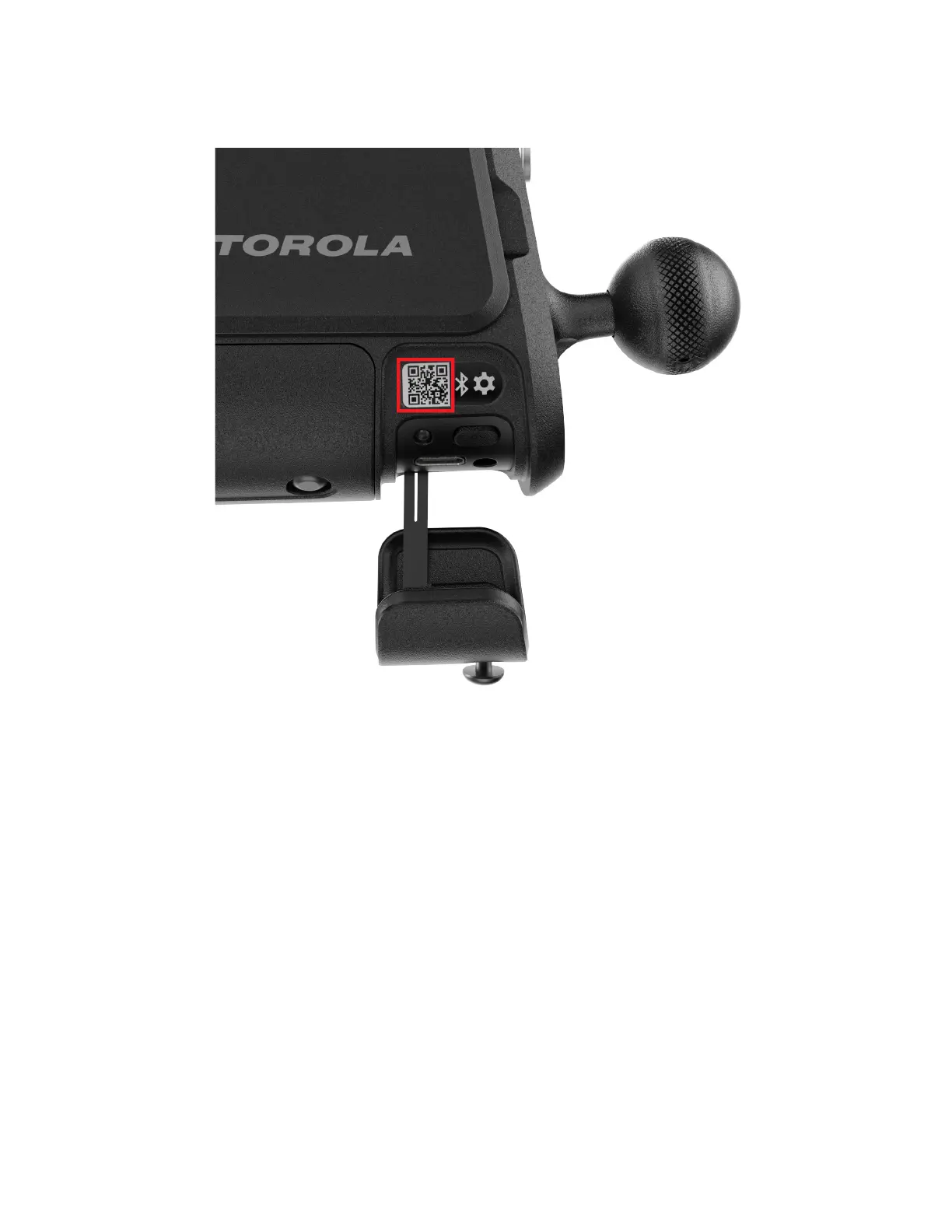

Figure 29: Scanning the Camera
7 Wait until the camera successfully connects.
3.5.3
Installing the Camera
Procedure:
1 Connect the Long Range Antenna to the upper connector on the back of the camera. If
necessary, connect the Angle Adapter first so that the antenna can be positioned vertically
as shown.
2 Connect the M12 elbow connector from the power source to the lower port on the back of the
camera and screw down the connector sleeve to secure.
3 Insert the ball on the back of the camera into the ball socket on the mounting bracket and tighten
the ball joint enough to keep the camera in place, but still allow it to pivot.
4 Remove the protective film from the camera lens.
MN008660A01-AC
Chapter 3 : Hardware Installation
50
