RADIUS network authenticated login
Motorola, Inc. 570510-001-00 rev A Page 41 of 50
Port-based VLAN webUI, continued

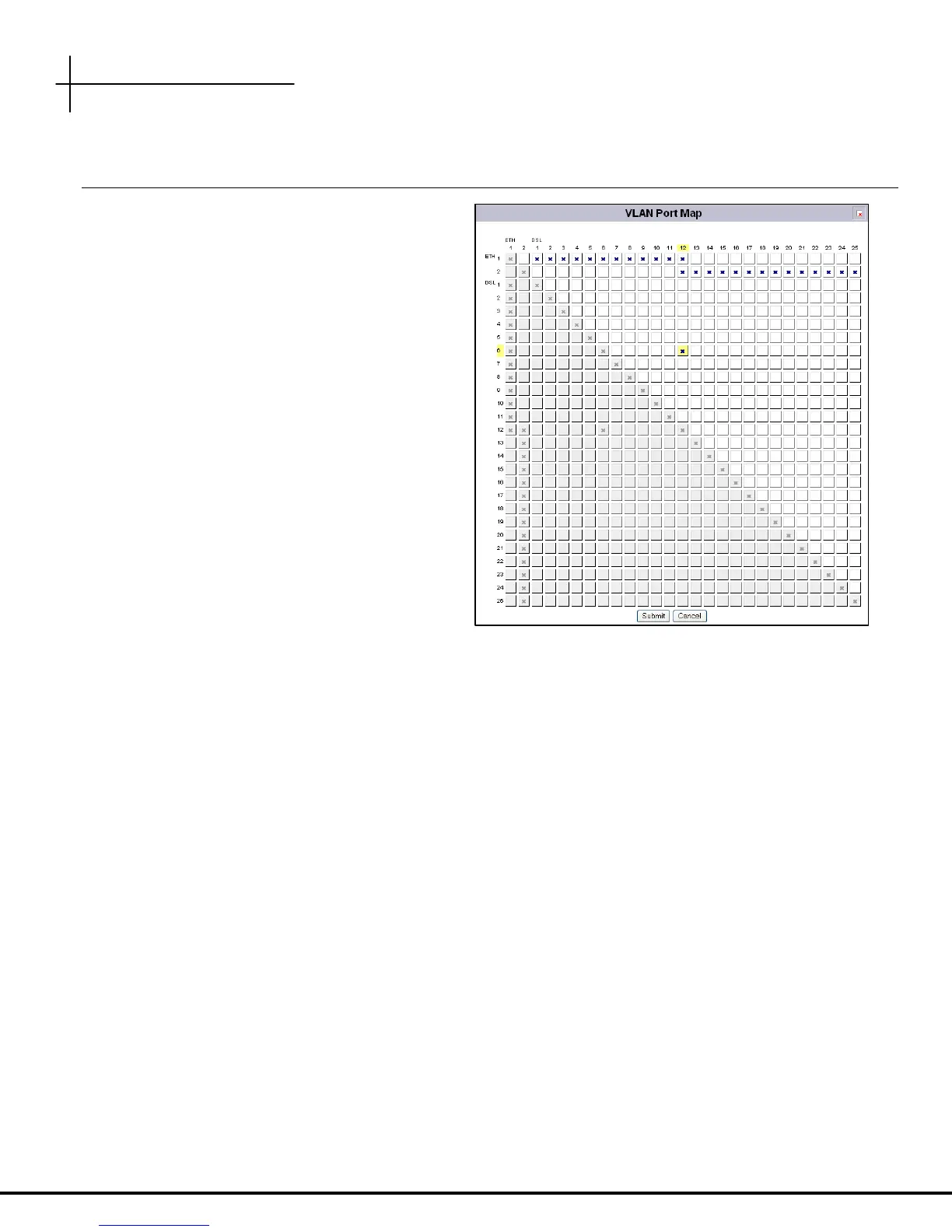

In the example at right, Note:
• Eth1 and Eth2 cannot communicate together
• Eth1 can communicate with DSL ports 1 – 12
• Eth2 can communicate with DSL ports 12 – 25
• Port 12 can communicate with both Eth1 and Eth2
• Ports 6 and 12 can also communicate together
Note that DSL ports can only talk to the upstream
Eth1 or Eth2. The only exception is DSL ports 6 and
12.
Port-based mode on the T3 Switch can be mixed
with Tag-based mode on the WallPlate for an
effective method to configure VLANs for advanced
services.
Note VLAN Tutorial One for an example of mixing
Port-based and Tag-based VLANs.
